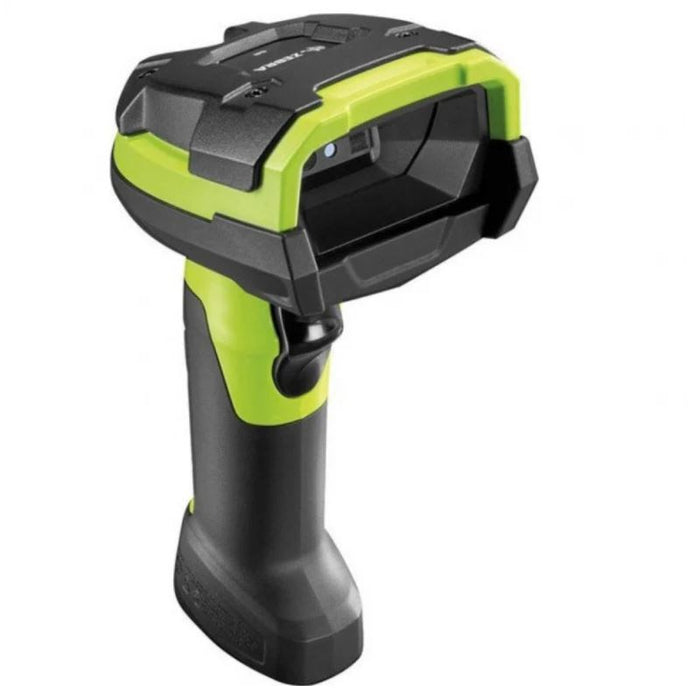

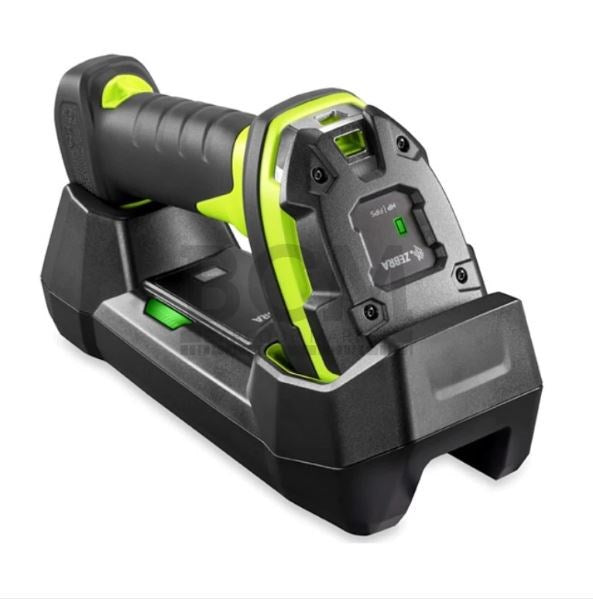

Zebra DS3678-SR Handheld bar code reader 1D/2D LED Black, Green

Zebra DS3678-SR Handheld bar code reader 1D/2D LED Black, Green

by ZEBRA
€771,90 - €771,90
€771,90
€771,90 - €771,90
€771,90
SKU DGT0149012
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Harmonized System (HS) code 84716070
Sustainability certificates RoHS

Power

Battery technology Lithium-ion (Li-Ion)
Battery capacity 3100 mAh
Number of reads per charge 100000
Power source type Battery

Operating conditions

Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%

Weight and dimensions

Width 142 mm
Depth 76 mm
Weight 407 g
Height 185 mm

Performance

Product colour Green, Black
LED indicators Yes
Protective features Waterproof, Shockproof, Dustproof
Programmable function Yes
International Protection (IP) code IP67

Ports and interfaces

Bluetooth Low Energy (BLE) Yes
Ethernet LAN Yes
Wireless range 100 m
Version of Bluetooth 4.0
Standard interfaces RS-232, USB, Keyboard wedge
Connection technology Wired and wireless

Scanning

Wavelength 610 nm
Supported 2D (matrix and stacked) barcodes QR Code, TLC-39, Composite Codes, Han Xin, Data Matrix, MaxiCode, Aztec Code, MicroPDF417, PDF417, Micro QR Code
Sensor type LED
Reading angle by tilt (Pitch) -65 - 65°
Type Handheld barcode reader
Reading angle when tilted -65 - 65°
Scanner type 1D/2D
Supported linear (1D) barcodes Codabar, Code 11, Code 93, U.P.C., MSI, GS1-128 (UCC/EAN-128), Plessey, Code 39, Code 128
Reading angle when rotated -45 - 45°
Optical sensor resolution 1280 pixels
