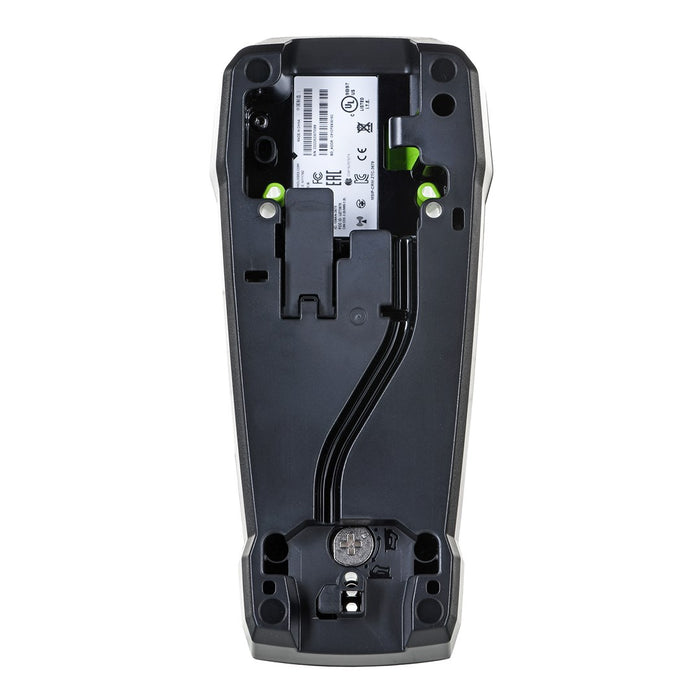

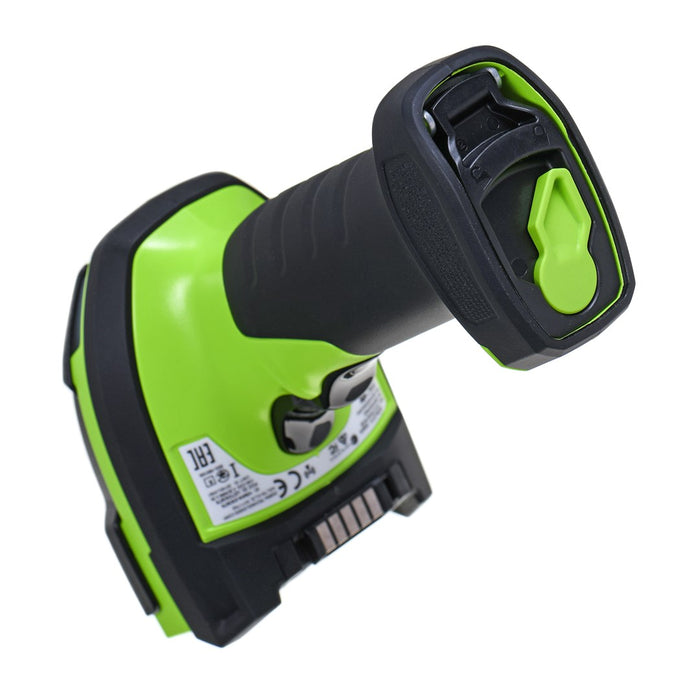

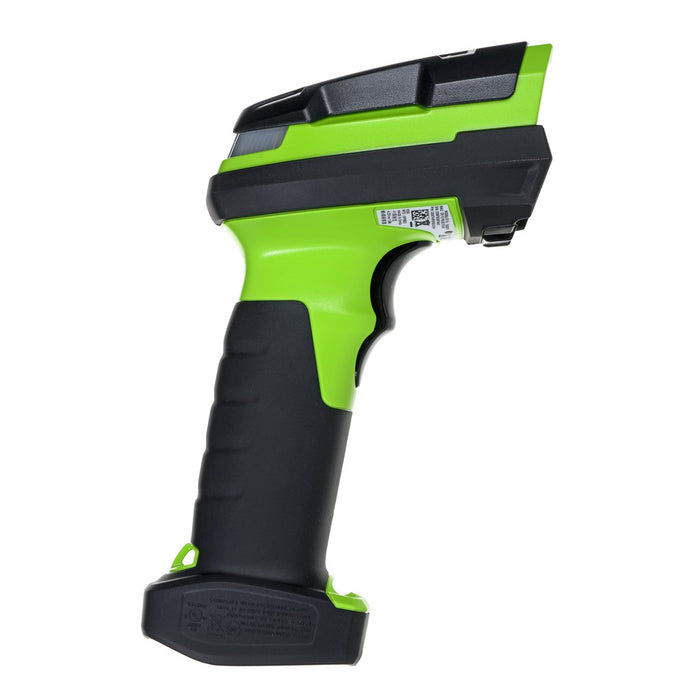

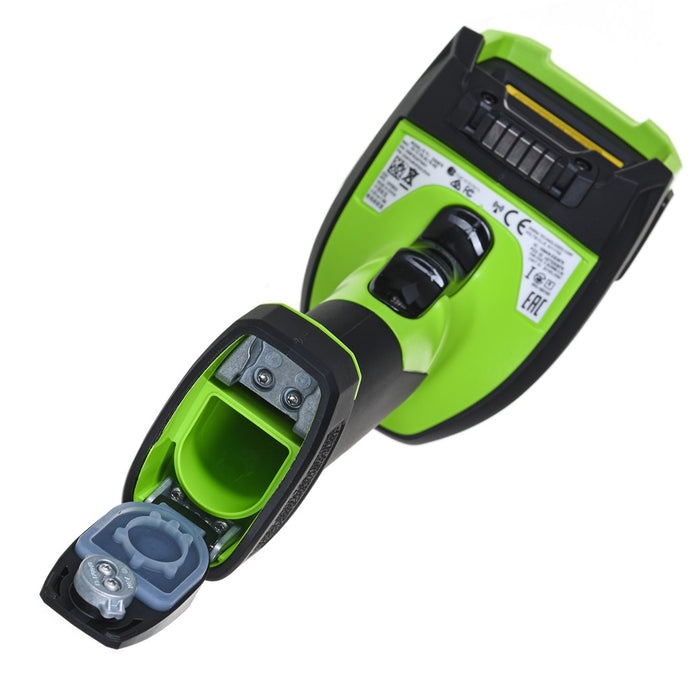

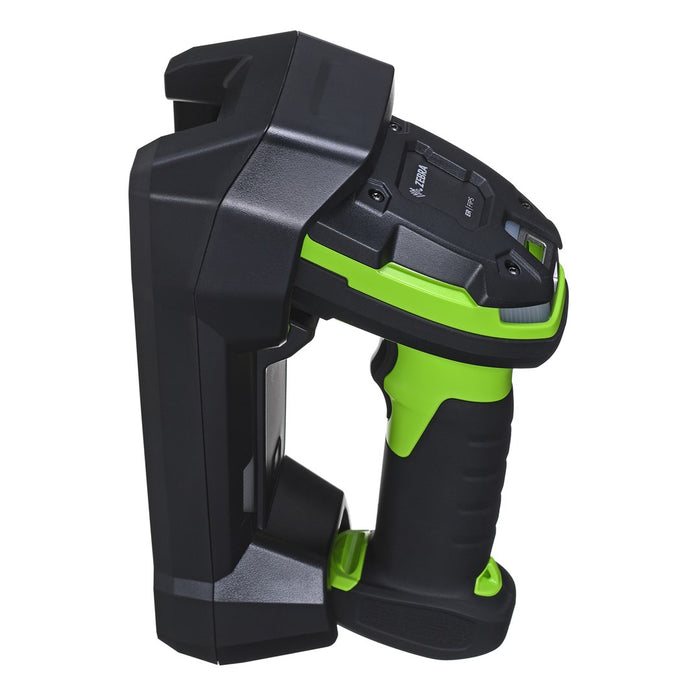

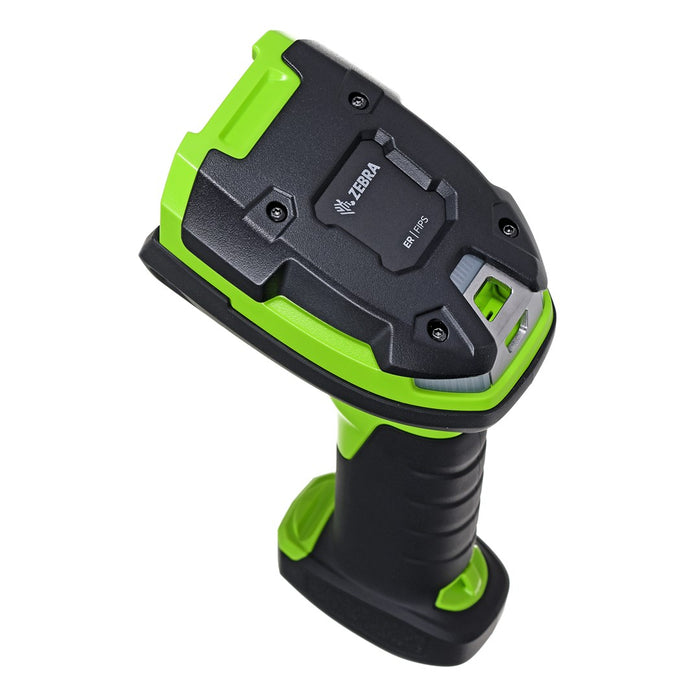

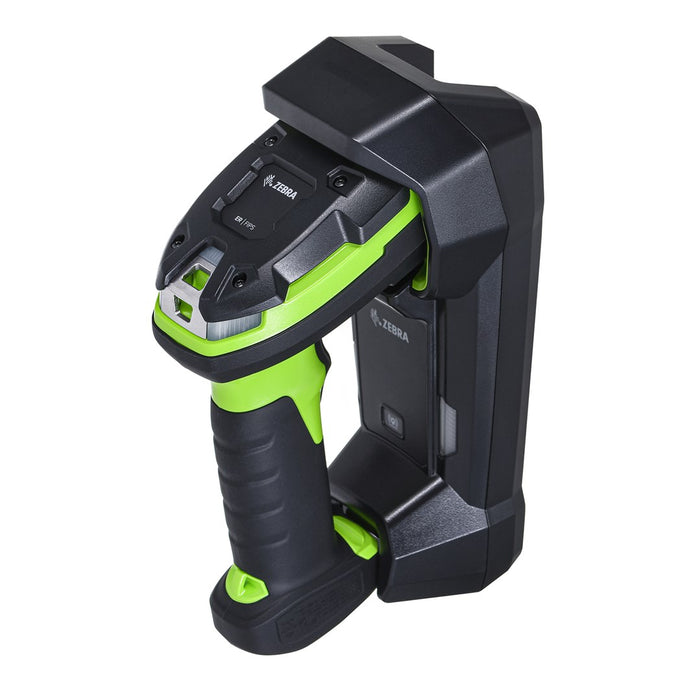

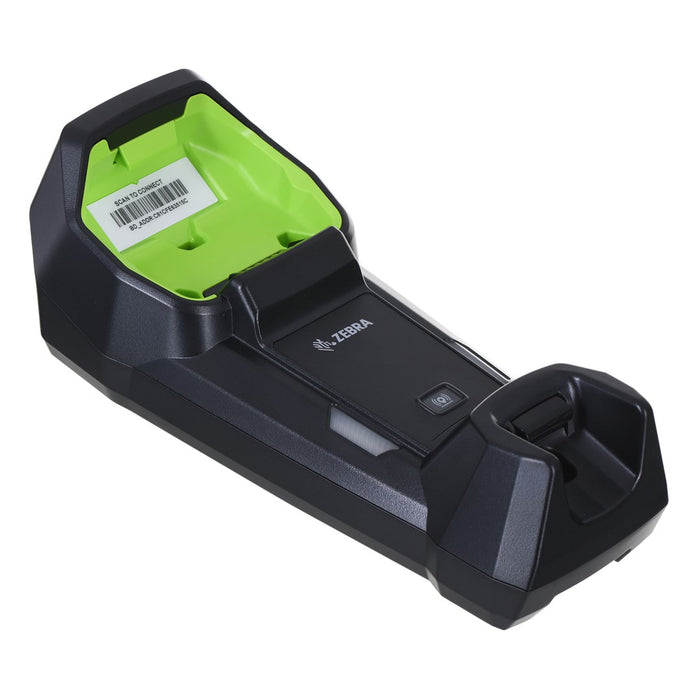

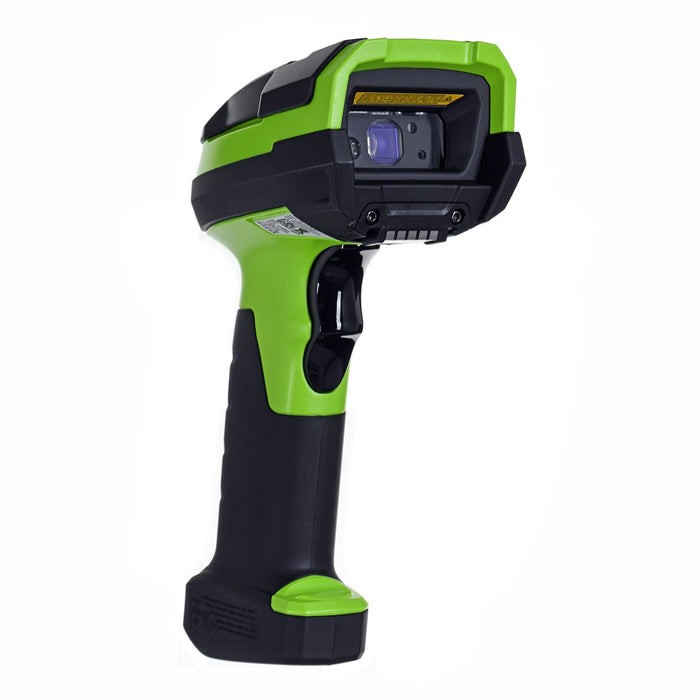

Zebra DS3678-ER Handheld bar code reader 1D/2D Laser Black, Green

by ZEBRA
Original price €901,13 - Original price €901,13
Original price
€901,13
€901,13 - €901,13
Current price €901,13
SKU DGT0543886
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Sustainability certificates RoHS

Power

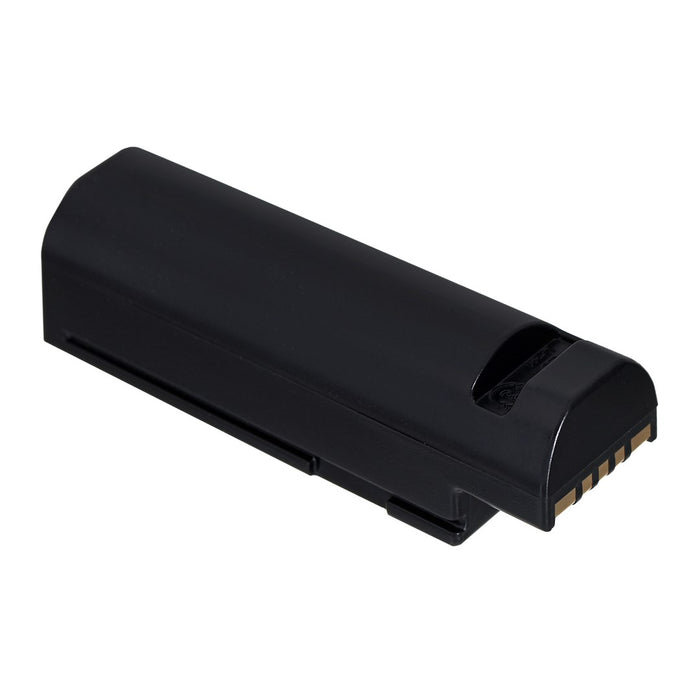

Battery technology Lithium-ion (Li-Ion)
Battery capacity 3100 mAh
Power source type Battery
Number of reads per charge 70000

Operating conditions

Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 70 °C

Weight and dimensions

Weight 436 g
Depth 76 mm
Height 185 mm
Width 142 mm

Performance

Product colour Green, Black
Protective features Shock-resistant, Dust-resistant, Waterproof
International Protection (IP) code IP67
LED indicators Yes
Programmable function Yes

Ports and interfaces

Ethernet LAN Yes
Connection technology Wired and wireless
Version of Bluetooth 4.0
Wireless range 100 m
Standard interfaces RS-232, USB, Keyboard wedge
Bluetooth Low Energy (BLE) Yes

Logistics data

Harmonized System (HS) code 84716070

Scanning

Supported 2D (matrix and stacked) barcodes TLC-39, Composite Codes, Micro QR Code, Data Matrix, Aztec Code, MicroPDF417, Han Xin, PDF417, MaxiCode, QR Code
Scanner type 1D/2D
Wavelength 655 nm
Type Handheld barcode reader
Reading angle on rotation -45 - 45°
Sensor type Laser
Reading angle on tilt (Pitch) -65 - 65°
Reading angle on tilt -65 - 65°
Supported linear (1D) barcodes Code 93, U.P.C., Code 128, Code 11, MSI, Code 39, Codabar, GS1-128 (UCC/EAN-128), Plessey
Optical sensor resolution 1280 pixels
