Cudy M3600 BE3600 is a Wi-Fi 7 Mesh system with up to 3.6 Gbps, 3 Gigabit ports, and large-home coverage, ideal for 4K streaming, gaming, and smart devices.
The Cudy M3600-1-pack BE3600 Wireless Mesh Router System is a dual-band Wi-Fi 7 mesh system designed to deliver high speed, low latency, and stable coverage throughout your home through a single powerful Mesh unit. It combines advanced Wi-Fi 7 technologies with easy installation and intelligent management to support dozens of devices, 4K/8K streaming, gaming, and smart home scenarios without interruption.
Cudy M3600 BE3600 is a modern dual-band Wi-Fi 7 Mesh system designed to provide stable and fast internet in every room of the home. Thanks to a total wireless speed of up to about 3.6 Gbps (up to 2882 Mbps in 5 GHz and up to 688 Mbps in 2.4 GHz), the router offers enough capacity for 4K/8K streaming, online gaming and working from home on multiple devices simultaneously. Wi-Fi 7 technologies, including 4K-QAM, a large channel width of up to 160 MHz and optimized wireless algorithms, help to achieve lower latency and higher efficiency with many connected clients. With support for Cudy Mesh and multi-band backhaul, the system can be combined with other compatible devices to provide seamless roaming coverage throughout the home without signal loss when moving.
The three built-in Gigabit Ethernet ports allow you to connect desktops, consoles, TVs or switches for the fastest wired transfer. The powerful quad-core processor and sufficient RAM and flash memory are designed to handle a large number of active connections and intensive traffic without delays. The router supports WPA/WPA2/WPA3 security, separate guest networks for 2.4 GHz and 5 GHz, as well as advanced parental controls so you can manage access for different profiles in the household. VPN client and server (PPTP, L2TP, OpenVPN, WireGuard, IPsec, Zerotier) are also available, making it a suitable choice for secure remote connections and working with corporate resources.
Management is easy via the Cudy App mobile application and cloud functions, which allows for quick initial installation, configuration and remote control of the home network. The compact cylindrical design in neutral colors and desktop mounting allow the router to fit discreetly into any interior without taking up much space. The combination of Wi-Fi 7 performance, Mesh functionality, rich VPN and traffic management makes the Cudy M3600 BE3600 particularly suitable for large homes, busy home offices and users who expect maximum reliability from their wireless network.
Technical characteristics
Wireless network
Wi-Fi standard: Wi-Fi 7 (802.11be), compatible with 802.11 a/b/g/n/ac/ax/be devices.
Total wireless speed: up to about 3600 Mbps (up to 2882 Mbps in 5 GHz and up to 688 Mbps in 2.4 GHz).
Wi-Fi streams: 2×2 MIMO for 2.4 GHz and 2×2 MIMO for 5 GHz (4 streams total).
Maximum channel width: up to 160 MHz.
Maximum modulation: 4K‑QAM.
Maximum capacity: up to 512 connected clients, recommended upper limit – around 200 devices.
Antennas: 4 internal omnidirectional antennas, beamforming support and advanced Wi-Fi 7 optimizations.
Mesh and software features
Mesh technology: Cudy Mesh, can be combined with other compatible Cudy devices.
Multi-band backhaul: supports multi-band backhaul for a more stable connection between Mesh nodes.
Seamless roaming coverage: automatic switching between nodes (when adding more units) without interruption of the connection.
Operating modes: main router, Mesh node, access point (according to supported modes in the official software).
QoS: traffic prioritization with per-device limit.
Parental controls: profiles, schedules, and content filtering.
IPv4/IPv6 support, DHCP server and IPTV features with VLAN, IGMP Proxy/Snooping.
Security
Wi‑Fi protection: WPA, WPA2, WPA3.
Guest networks: separate guest SSIDs for 2.4 GHz and 5 GHz.
WPS button for quick connection.
VPN server and client: support for PPTP, L2TP, OpenVPN, WireGuard, IPsec, Zerotier (according to the descriptions of commercial sites and the manufacturer).
Hardware, ports and power
Processor: Quad-core Broadcom chip optimized for Wi-Fi 7 and Mesh performance.
Memory: 128 MB flash (1 Gbit) and 512 MB RAM (4 Gbit DDR).

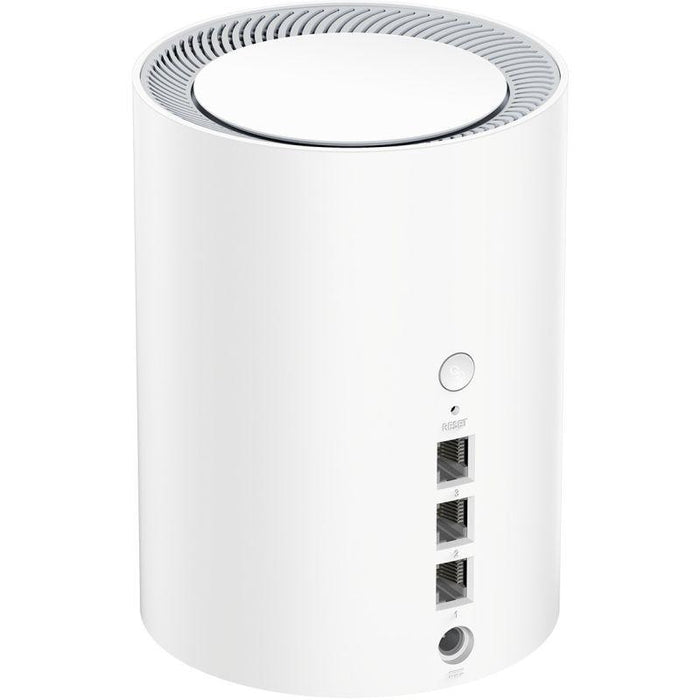

Ports: 3 × Gigabit Ethernet RJ45 – 1 × WAN port and 2 × LAN ports.
Power supply: 12V DC, 1A (adapter included).
Physical parameters
- Dimensions: 110 × 150 × 110 mm (W × H × D)
