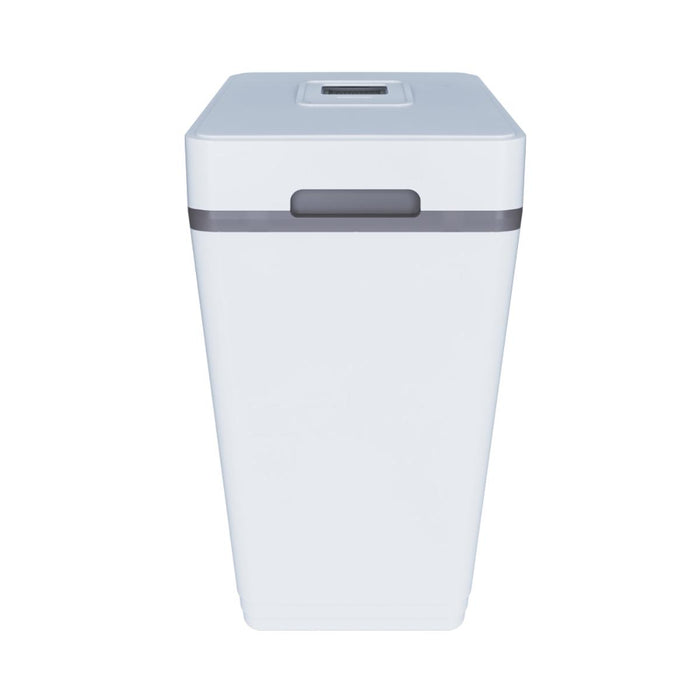

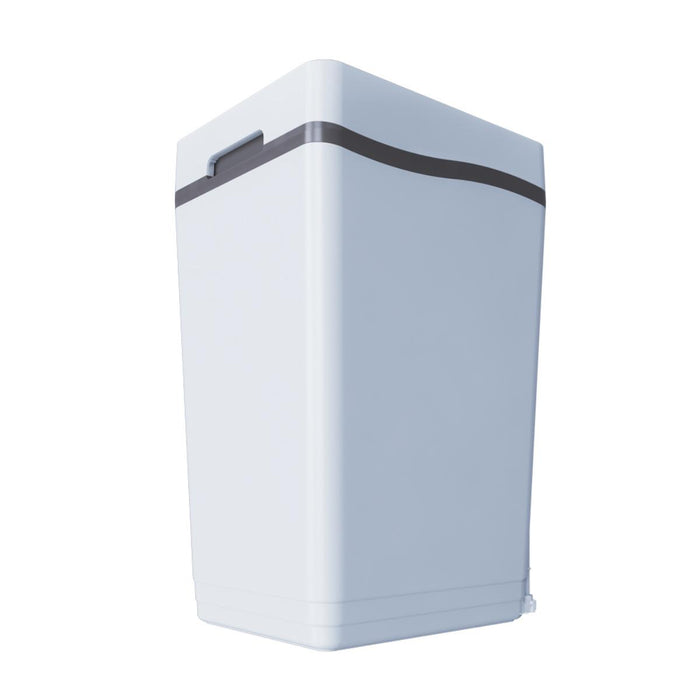

WATER SOFTENER AQUAPHOR A1000

Water softener

The A1000 water softener has high performance and capacity, which is suitable for multiple families or small family hotels.
Purifies water from iron (Fe2+), manganese and softens it throughout the house, villa or apartment. No need to replace filters. Easy and automatic regeneration process – requires only 3 kg of salt, 90 liters of water and 40 minutes. Softening and filtering properties are restored through effective backwashing and regeneration of the resin.
Safe and reliable – has overflow protection, purifies hardness salts (Ca+ and Mg+), iron (Fe2+), manganese and other impurities.
You save up to 70% on the use of detergents and washing powders - soft water foams more easily, which eliminates the need to use large amounts of detergents.
Up to 25% electricity savings by using soft water and complying with the water requirements of the manufacturers of your water heater, washing machine and dishwasher.
Softer hair and skin that feels good to the touch – you will feel the beneficial effects of soft water from the very first shower.

ADDITIONAL INFORMATION:

• Suitable for: 2-6 people
• Productivity: 1.8 m3 / hour
• Water volume for regeneration: 67 – 97 liters
• Amount of salt for regeneration: 1.3 – 3.8 kg
• Salt tank: Yes, built-in (55 kg)
• Maximum compensated hardness: 24 mEq / l (67 dH°)
• Manganese and iron removal up to: 10 mg/l
• Connection size: 1" (MNPT) / ¾" (FNPT)
• Operating temperature: +4 ... +49 °C
• Guaranteed 10 years of operation without resin replacement!
• Made in Europe (Estonia)!

TECHNICAL CHARACTERISTICS:

• Volume of the filtering media, l: 28;
• Maximum media volume: mgEq 31100;
• Maximum compensated hardness, mg/l (mgEq/l): 1540 (30);
• Maximum concentration of dissolved iron, mg/l: 10;
• Minimum Ph: 6;
• Water and ambient temperature: 4°-49°C;
• Working pressure, minimum - maximum, bar: 1.5-7;
• Maximum flow in the drain during regeneration, l/min: 7.6;
• Operating/maximum flow, m3 / hour: 1.8 / 2.7;
• Pressure drop at flow rate 22.7 l/min, bar: 1.0;
• Consumption in economy mode HE (time / water for regeneration), minutes / l: 24/67;
• Consumption in high efficiency mode HC (time / water for regeneration), minutes / l: 37/97.3;
• Regeneration method: Delayed regeneration by timer;
• Valve connection sizes/soft connections (NPT): 1" (MNPT) / ¾" (FNPT);
•Minimum drain line diameter, inch (cm): 5/8” (1.6);
• Filter volume size ID x H, inch (cm): 10.5 x 26 (26.7 x 66);
• Height, cm: 79.5;
• Base, cm: 40.4 x 48.5;
• Gross weight (approximate), kg: 48;
