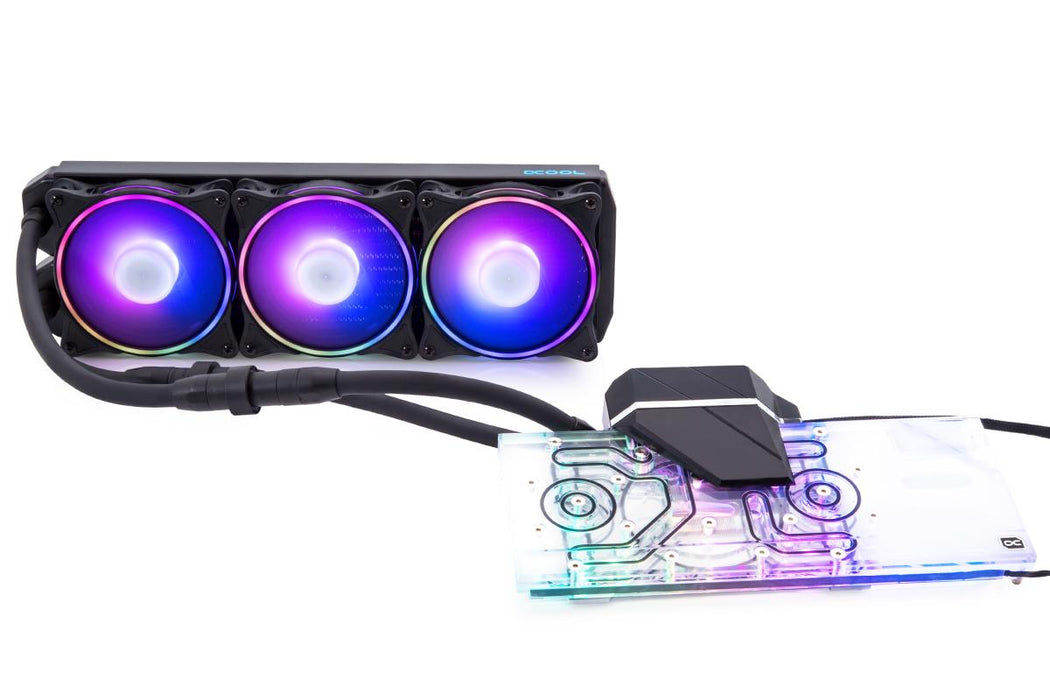

Water Cooling System Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate

Water Cooling System Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate

by Alphacool
SKU DGT0130635

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Water Cooling System Alphacool Eiswolf 2 AIO - 360mm Radeon RX 6800/6800XT/6900 Reference Design with Backplate

Compatibility:
Radeon RX 6800/6800XT/6900 graphics cards using the reference design

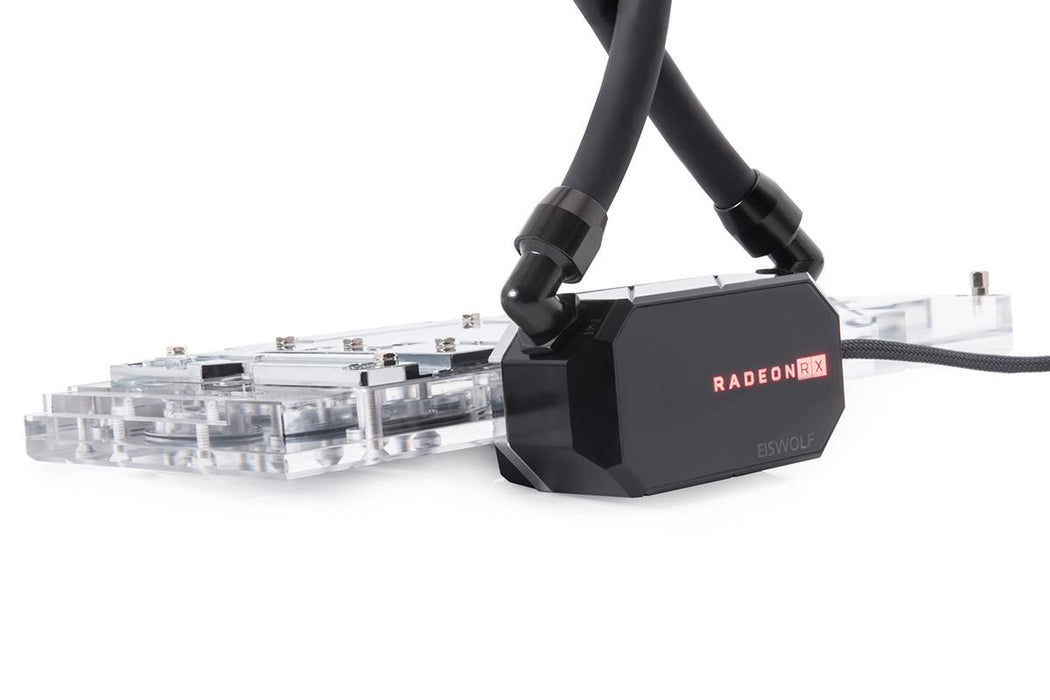

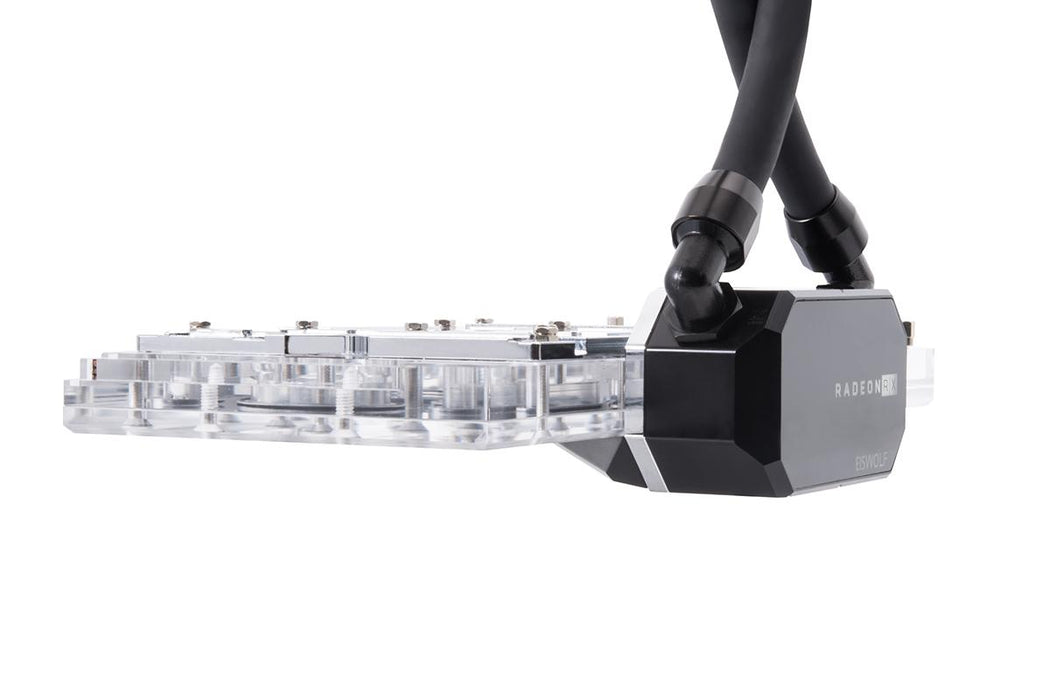

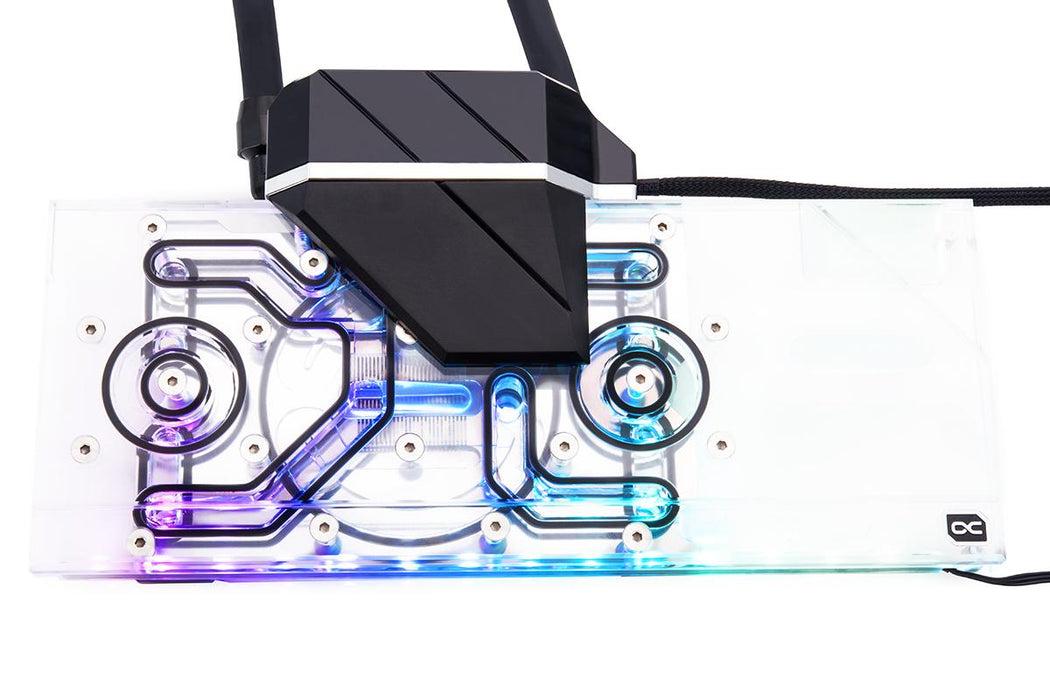

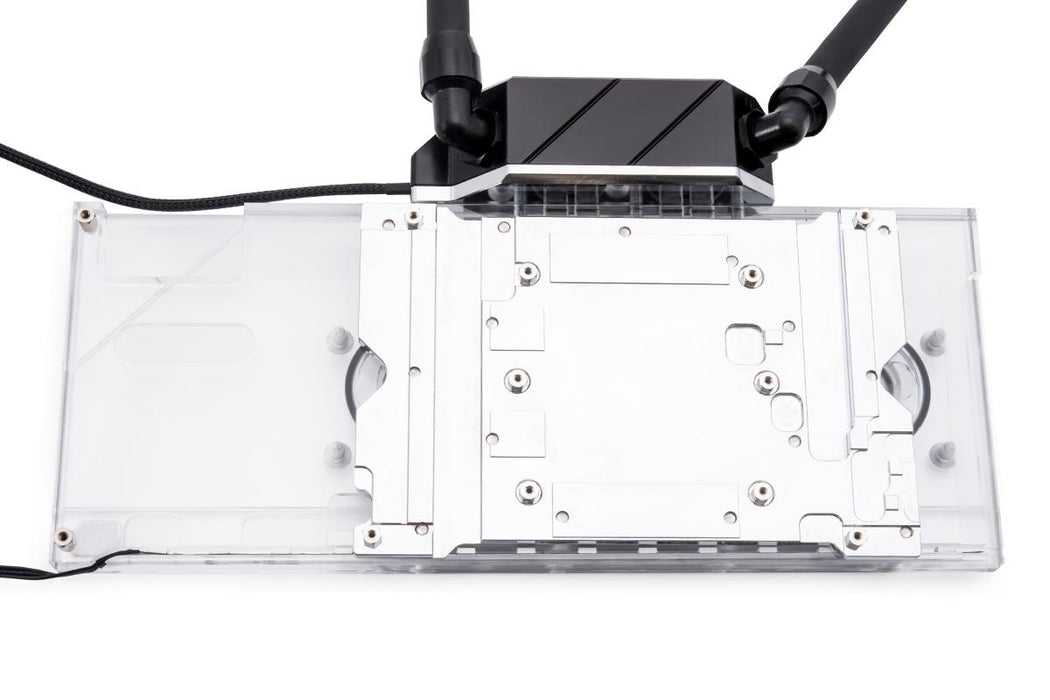

Technical data pump/cooler unit:

L x W x H 140 x 265 x 46 mm
Material cooler bottom Nickel plated copper
Material cooler top PMMA
Threads 2 x G1/4"
Pump type DC-LT 2
Pump speed 2600 rpm (+/- 10%)
Head of delivery 0.95 m
Maximum flow rate 75 L/h
Voltage 12V DC
Power consumption 4W
MTBF 50,000 h

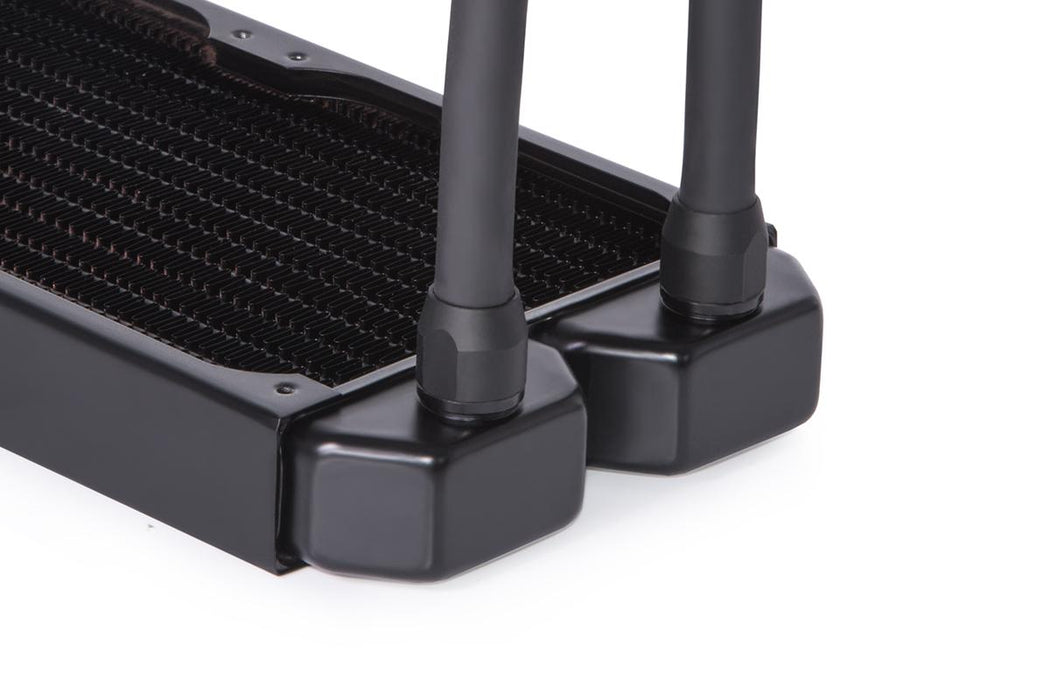

Technical data radiator:

L x W x H 395 x 124 x 30mm (+/- 3%)
Material cooling fins Copper
Material chambers Copper
Material cooling channels Copper
Material threads Brass
Material outer housing stainless steel
G 1/4“ threads 2 x for tubes (+ 1x Fillport G1/4")
For fan size 120 mm
Possible fan assembly 3 x one-sided / 6 x both-sided


Technical data fan:

Speed 0 - 2500 RPM
Static pressure 3.17 mm H2O
Air flow rate 119.8 m³/h
Bearings Sleeve bearing
Fan connector 4-Pin PWM
Connection Digital aRGB 3-Pin JST + 3-Pin 5V
Dimensions 120 x 120 x 25 mm
Net weight 187 g
Maximum working temperature 60 °C
Certificates CE, FC, ROHS
