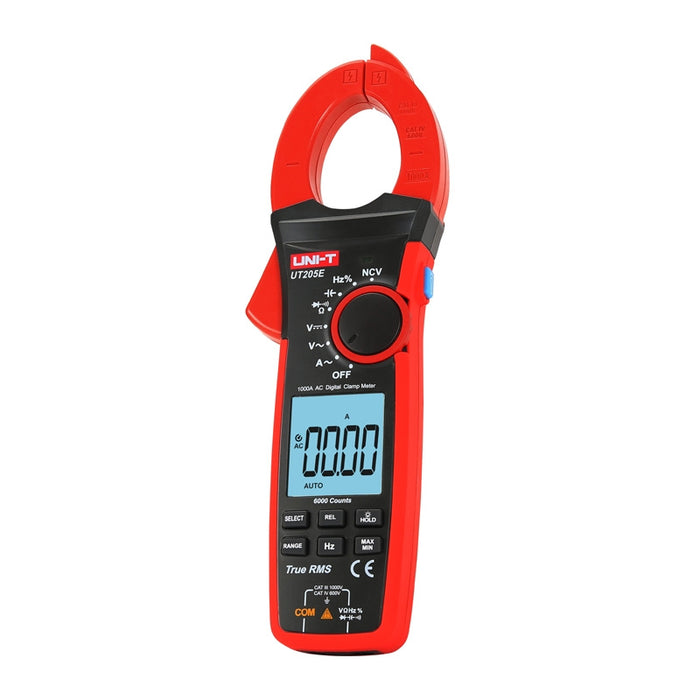

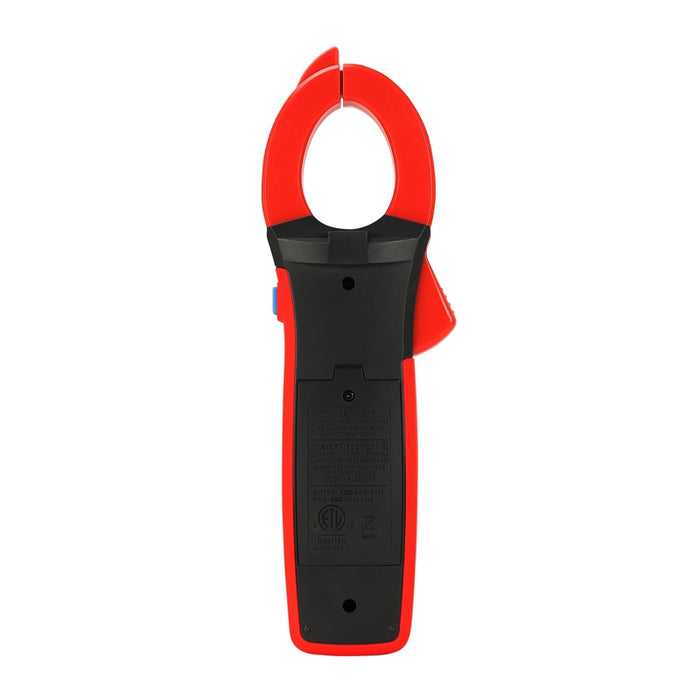

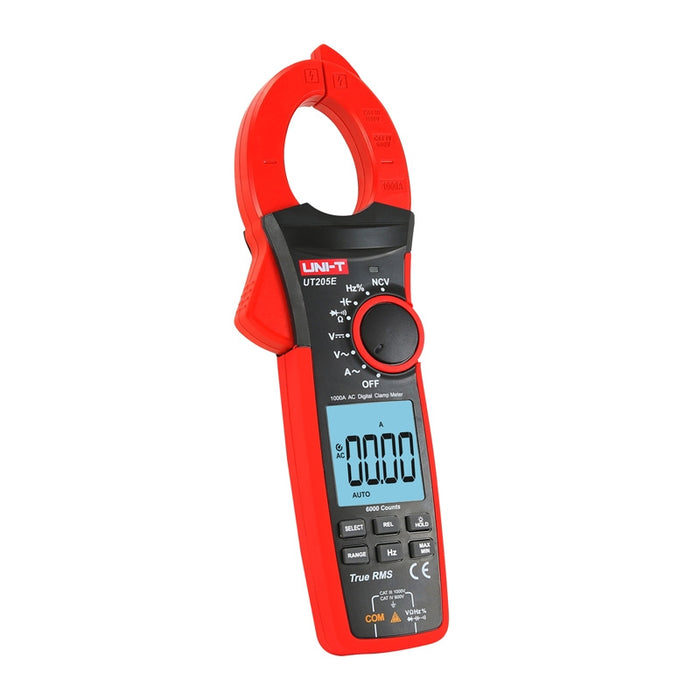

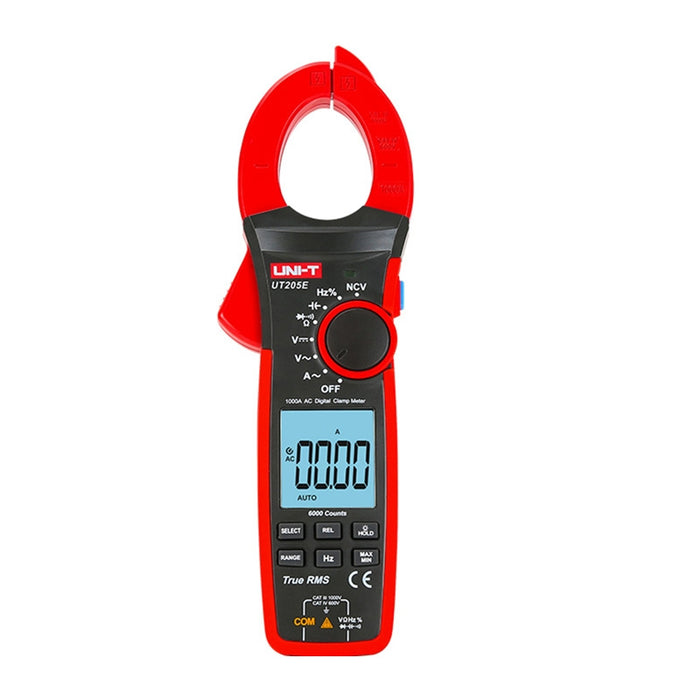

Uni-T UT205E Digital Clamp Meter

Uni-T UT205E Digital Clamp Meter

by Uni-t
€47,90 - €47,90
€47,90
€47,90 - €47,90
€47,90
SKU DGT0453678
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Uni-T UT205E digital clamp meter

The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates field work and operations at switchgear panels.

A UNI-T digital clamp meter held by an electrician wearing a glove during testing in a control cabinet.

Wide measurement range

The UT205E model can measure AC current up to 1000A and AC/DC voltage up to 1000V, allowing you to work with more demanding installations. Additionally, it supports resistance, capacitance, frequency, and duty cycle measurements, expanding its diagnostic capabilities.

A UNI-T meter on a black countertop while measuring components on a green PCB.

Features that make work easier

True RMS ensures more accurate measurements, while features such as NCV, backlight, and flashlight improve working comfort. Automatic range selection and a clear display facilitate quick measurements in various conditions.

A UNI-T clamp meter in an electrician’s hand, pointed toward thick electrical wires.

Intuitive design and safety

The large screen and 42 mm jaw opening allow for comfortable work even with thick cables. The device complies with CAT III 1000V / CAT IV 600V standards, ensuring safe use.

A UNI-T digital meter next to a cylindrical capacitor being tested on a dark surface.

Included

  • Clamp meter
  • Test leads (1 pair)
  • 3 AAA batteries
  • User manual

Specifications

Manufacturer Uni-T
Model UT205E
Product type True RMS clamp meter
AC current range 1000 A ±(2% + 5)
AC current frequency response 50 Hz – 60 Hz
AC voltage range 1000 V ±(1.2% + 3)
DC voltage range 1000 V ±(0.5% + 5)
AC voltage frequency response 40 Hz – 400 Hz
Resistance measurement range 60 MΩ ±(1% + 2)
Capacitance measurement range 60 mF ±(4% + 5)
Frequency range 10 Hz – 1 MHz ±(0.1% + 3)
Duty cycle range 10% – 90% ±(2.6% + 7)
Maximum display reading 6000
Functions True RMS, NCV, backlight, flashlight, automatic range switching
Jaw opening 42 mm
Measurement category CAT III 1000V / CAT IV 600V
Power supply 3 × 1.5 V (R03)
Display dimensions 43 × 45 mm
Dimensions 272 × 81 × 43.5 mm
Weight 465 g
Certifications CE, UKCA, cETLus
