Uni-T UT201F Digital Clamp Meter

Uni-T UT201F Digital Clamp Meter

by Uni-t
€23,90 - €23,90
€23,90
€23,90 - €23,90
€23,90
SKU DGT0453673
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

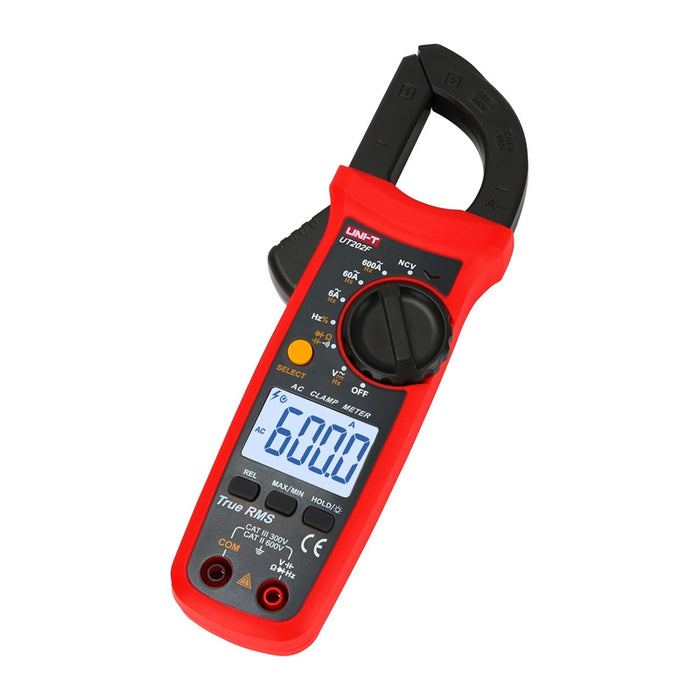

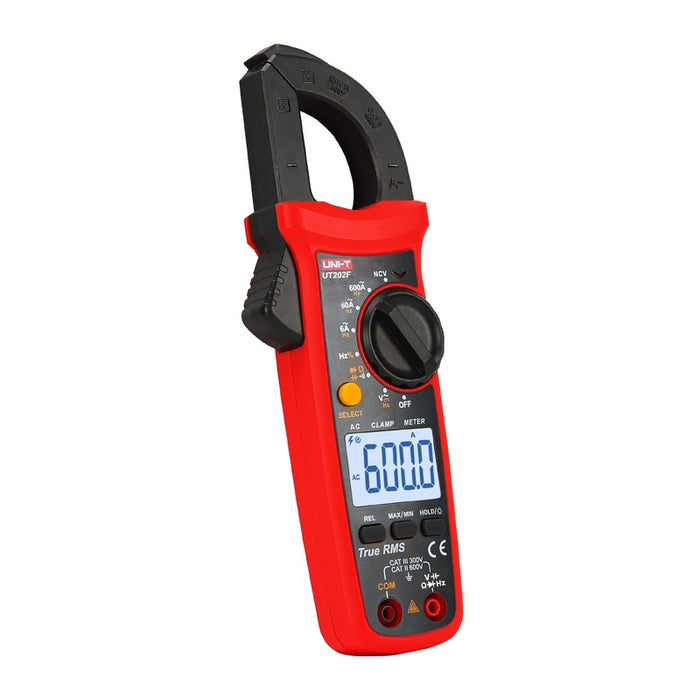

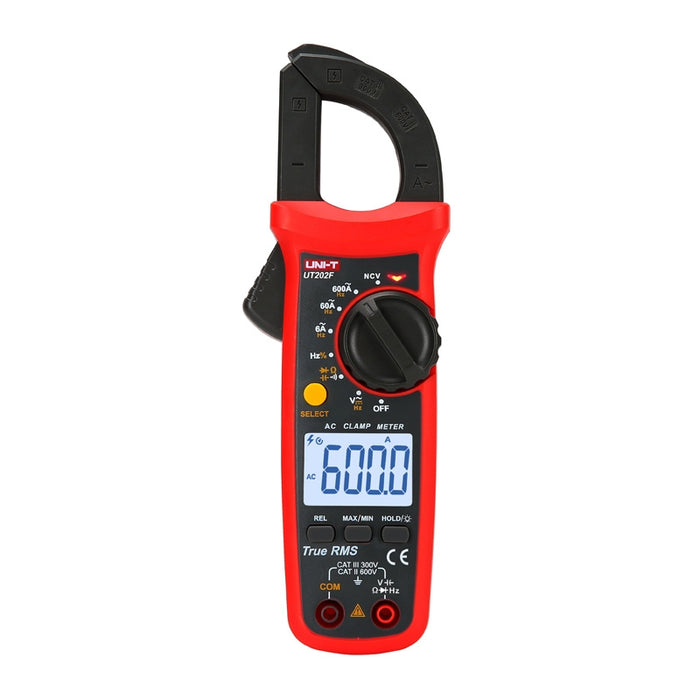

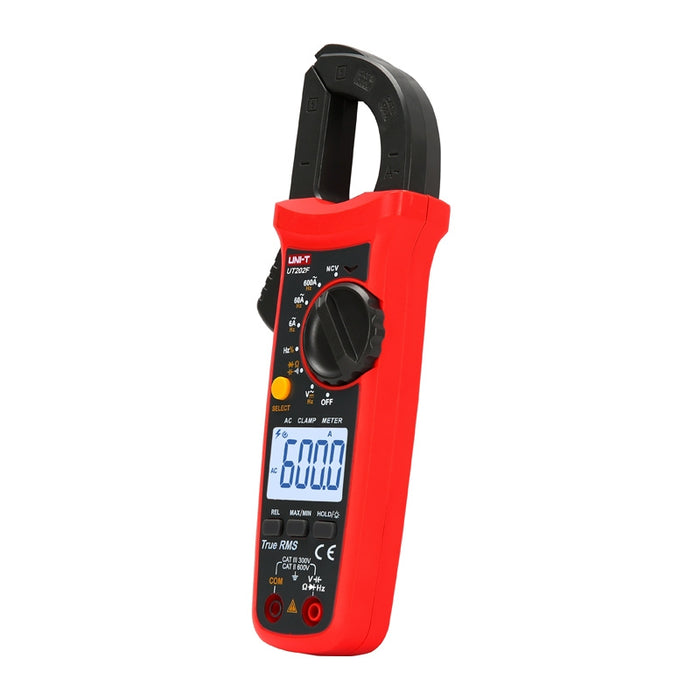

Uni-T UT202F Digital Clamp Meter

The Uni-T UT202F universal clamp meter is a practical tool for everyday electrical measurements. It is ideal for inspecting installations, diagnosing basic circuits, and measuring AC current without having to open the circuit. Thanks to its clamp design, it allows for convenient and quick measurements in the field.

Diagnosing electrical system parameters in a distribution cabinet using a handy clamp meter.

Extended measurement capabilities

The UT202F model allows for AC current measurement up to 600 A and AC and DC voltage measurement up to 600 V. In addition, it offers resistance measurement, capacitance up to 60 mF, and frequency up to 10 MHz, making it suitable for more complex diagnostics.

A clamp meter with connected leads placed next to a double wall outlet while checking the voltage.

User-friendly features

The multimeter is equipped with True RMS, an LPF filter, and an NCV function, which enhance usability and assist during measurements in variable conditions. An additional advantage is the ability to measure low AC voltages down to 600 mV.

Checking the charge level and voltage of a car battery under the hood using a meter with probes.

Clear design and safe operation

A large backlit screen improves the readability of results, and higher resolution facilitates more precise parameter monitoring. Compliance with safety categories CAT II 600V and CAT III 300V allows for safe use of the device during daily measurements.

Measuring the internal temperature of a wall-mounted home air conditioner using a meter with a probe.

Included

  • Clamp meter
  • Batteries x2
  • Test leads
  • User manual



Specifications

Manufacturer Uni-T
Model UT202F
Type Clamp meter
AC current 0.06~600A ±(2%+10)
AC frequency 50Hz~100Hz ±(1%+5)
AC voltage 600V ±(0.8%+5)
AC Voltage Frequency 10Hz~10kHz ±(1%+5)
DC Voltage 600V ±(0.5%+2)
Resistance 60MΩ ±(0.8%+2)
Capacitance 60mF ±(4%+5)
Frequency 10Hz~10MHz ±(1%+5)
Maximum reading 6000
Functions True RMS, NCV, LPF filter, low ACV measurement 600mV, LCD backlight
Jaw opening 28 mm
Power supply 2x 1.5V battery (R03)
Safety CAT II 600V / CAT III 300V
Dimensions 215 x 63 x 36 mm
Certifications CE, UKCA, cETLus
