Uni-T UT15C Voltage and Continuity Tester

Uni-T UT15C Voltage and Continuity Tester

by Uni-t
€74,90 - €74,90
€74,90
€74,90 - €74,90
€74,90
SKU DGT0453650
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

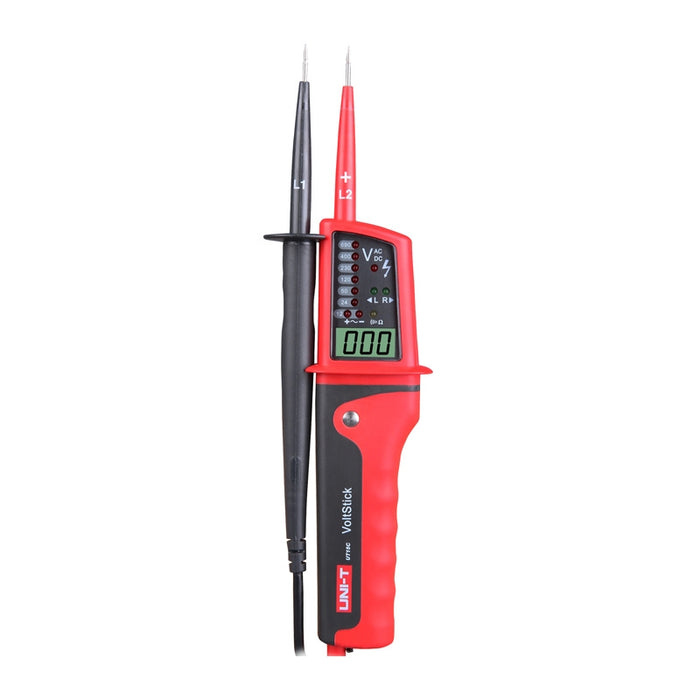

Uni-T UT15C voltage and continuity tester

The Uni-T UT15C is a voltage and continuity tester equipped with both easy-to-read LED indicators and an LCD display, which allows for more accurate readings of AC/DC voltage in the range from 24 V to 690 V. The device supports voltage measurements up to 690 V, automatic range switching, circuit continuity testing with an audible signal and LED, detection of positive and negative polarity, phase rotation testing, and single-probe voltage detection. The built-in flashlight facilitates work in dimly lit areas, and the compact design, measuring 275 × 51 × 30 mm and weighing 210 g, is ideal for daily diagnostics and service work.

A hand wearing a light-colored protective glove holds the VoltStick tester measuring voltage inside an ABB control cabinet.

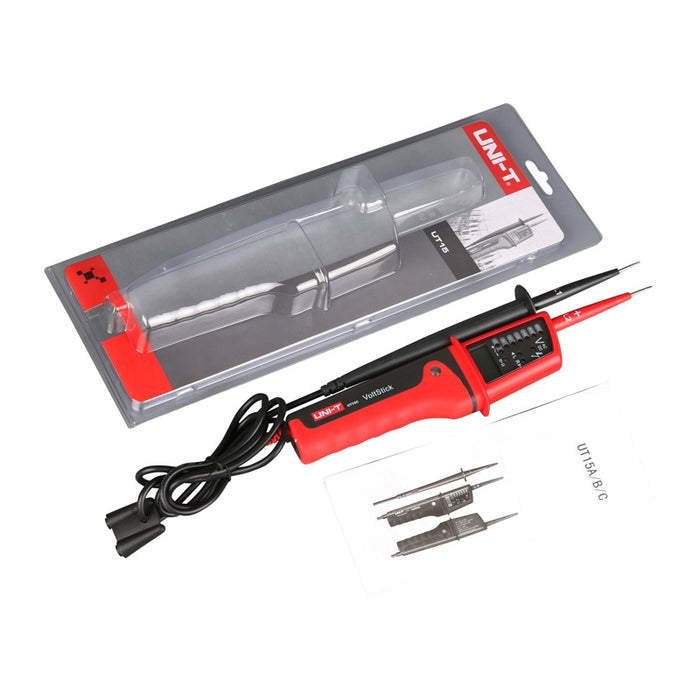

Included

  • Voltage and continuity tester
  • 2 AAA batteries
  • User manual

Specifications

Manufacturer Uni-T
Model UT15C
Product type Voltage and continuity tester
AC/DC LED voltage indicator Yes
LED voltage indicator range 12–690 V
LCD display Yes
LCD display range 24–690 V
LCD display accuracy ±(3% + 5)
Phase rotation test Yes
Phase rotation test range 0–690 V, 50–60 Hz
Single-probe voltage detection (L2) Yes
Single-probe voltage detection range 0–690 V, 50–400 Hz
Circuit continuity test Yes
Continuity test range 0–100 kΩ
Continuity test indication Audible signal + LED
Polarity detection Yes
Type of polarity detection Positive and negative
Protection class IP65
Range switching Automatic
Flashlight Yes
Battery indicator Yes
LCD screen dimensions 23 × 12 mm
Power supply 2 × 1.5 V (R03)
Weight 210 g
Dimensions 275 × 51 × 30 mm
Color Red and gray
