Uni-T UT15B Voltage and Continuity Tester

Uni-T UT15B Voltage and Continuity Tester

by Uni-t
€27,90 - €27,90
€27,90
€27,90 - €27,90
€27,90
SKU DGT0453649
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

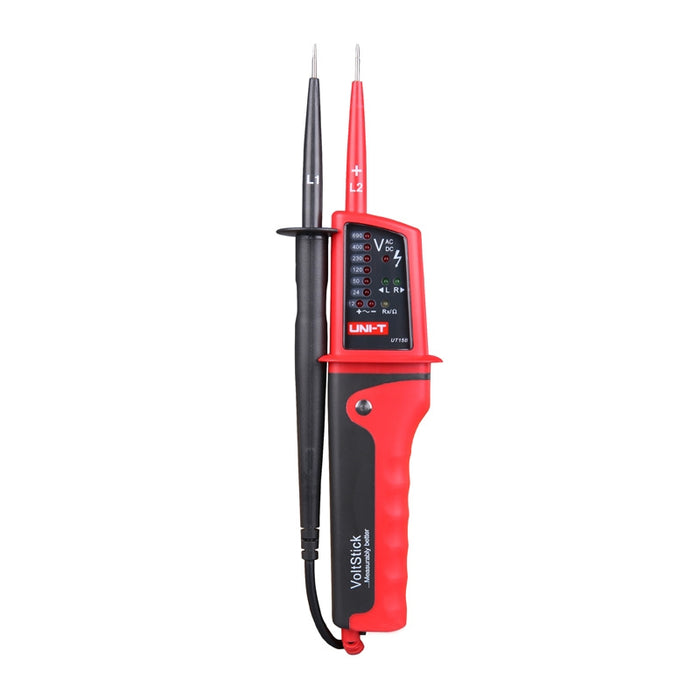

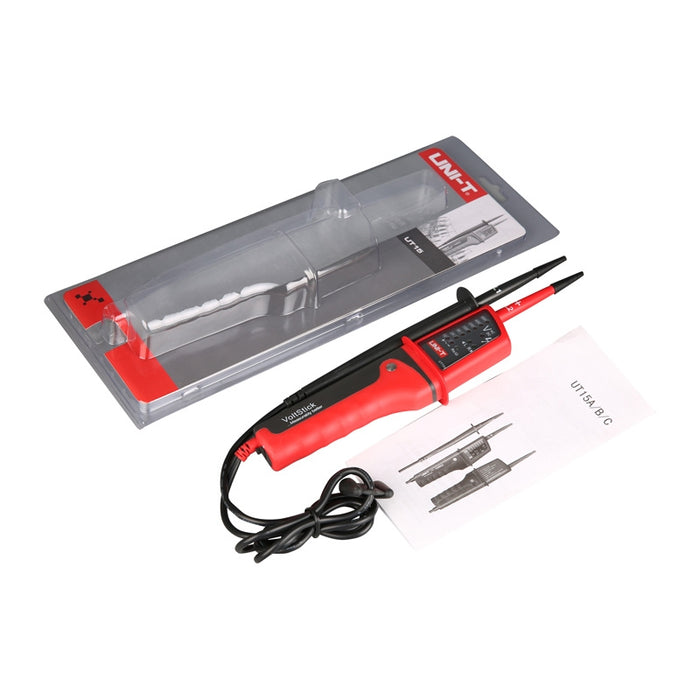

Uni-T UT15B voltage and continuity tester

The Uni-T UT15B is a rugged voltage and continuity tester designed for quick diagnostics of electrical installations. The device allows for AC/DC voltage measurement in ranges from 12 V to 690 V using easy-to-read LED indicators and automatic range switching, which streamlines daily work. The model also offers a circuit continuity test with an audible signal and LED, detection of positive and negative polarity, phase rotation test, and single-probe voltage detection. The rugged design with an IP65 rating increases durability when working in harsh conditions, and the built-in flashlight makes it easier to take measurements in dimly lit areas.

UNI-T voltage tester with two probes inserted into the contacts of ABB modular equipment in a control cabinet.

Specifications

Manufacturer Uni-T
Model UT15B
Product type Voltage and continuity tester
AC/DC LED voltage indicator Yes
12 V range 0–12 V
24 V range 17 V ± 2 V
50 V range 35 V ± 5 V
120 V range 80 V ± 15 V
230 V range 165 V ± 20 V
400 V range 300 V ± 30 V
690 V range 510 V ± 40 V
Phase rotation test Yes
Phase rotation test range 0–690 V, 50–60 Hz
Single-probe voltage detection L2 Yes
Single-probe voltage detection range 0–690 V, 50–400 Hz
Circuit continuity test Yes
Continuity test range 0–100 kΩ
Continuity test indication Audible signal + LED
Polarity detection Yes
Type of polarity detection Positive and negative
Protection class IP65
Range switching Automatic
Flashlight Yes
Battery indicator Yes
LCD display No
Power supply 2 × 1.5 V (R03)
Weight 210 g
Dimensions 275 × 51 × 30 mm
Color Red and gray
