SUBWOOFER DALI SUB E-12F
Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.
Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.
12-inch aluminium driver and Class D amplifier, going down to 28 Hz.

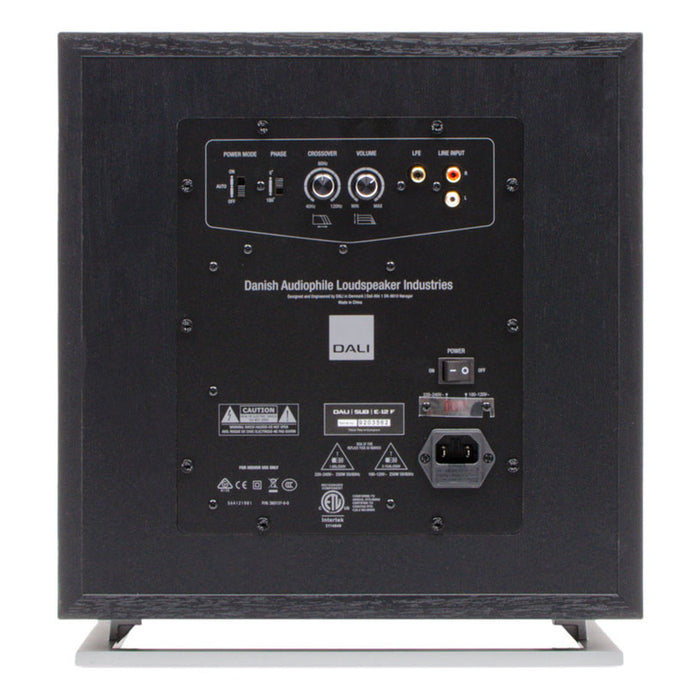

The DALI SUB E-12 F is an active model with a 12-inch aluminium long-throw driver and a built-in Class D amplifier. The operating range starts at 28 Hz, and the crossover filter is adjustable between 40 and 120 Hz, allowing connection both to a stereo pair and to a 5.1 or 7.2 system. Connection is made via an LFE (mono) input or a stereo RCA line input with a low-pass filter.

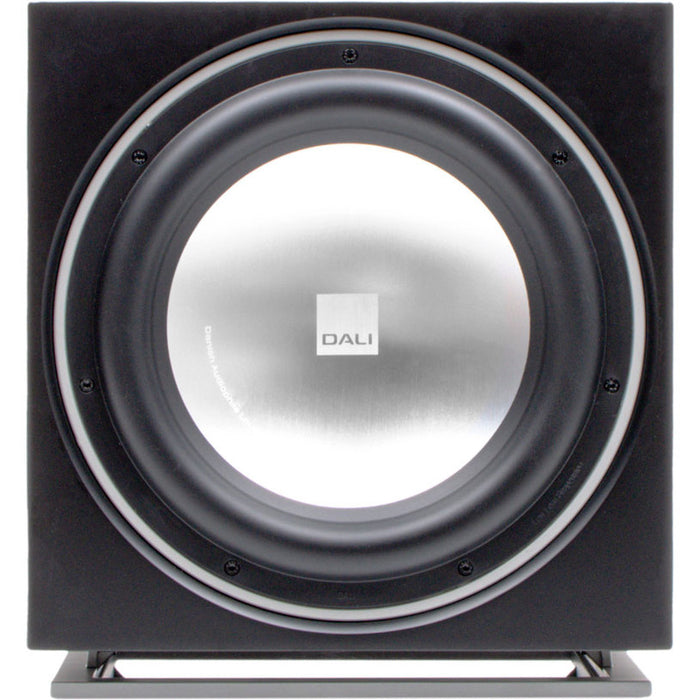

The cone is made of pure aluminium with a modulus of elasticity of 69 GPa — more than fifteen times that of common paper speaker material. The closed profile is part of the cone itself, the movement is piston-like, and the bass stays clearly defined during rapid changes in level. The motor has an enlarged ferrite magnet and a 4-layer voice coil 26.5 mm long.
The built-in limiter monitors the input signal and the available supply voltage and, when needed, limits smoothly without cutting peak power during strong movie effects. The switch-mode power supply consumes 0.4 W in standby, and an efficiency of 70% makes an external heatsink unnecessary.

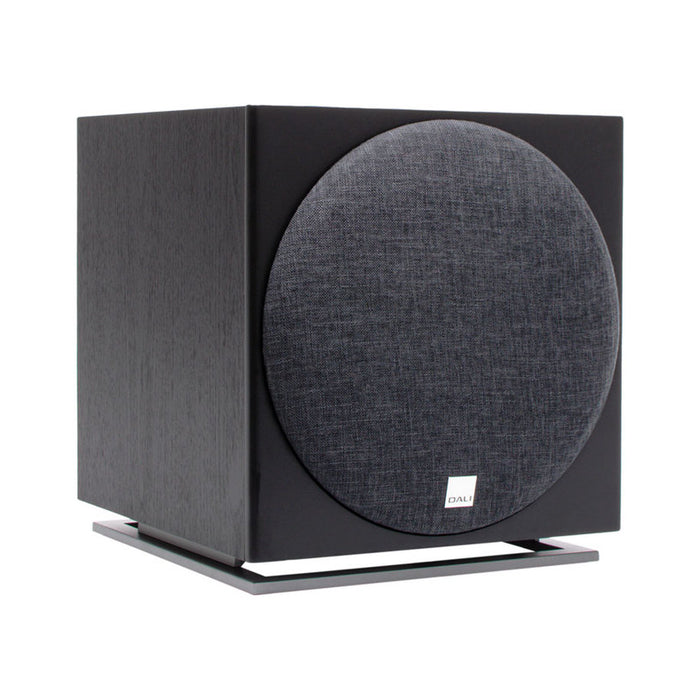

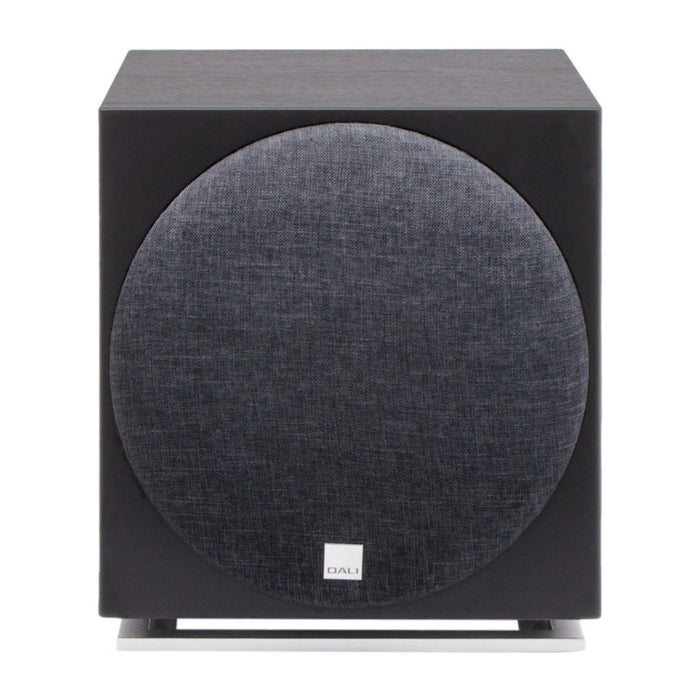

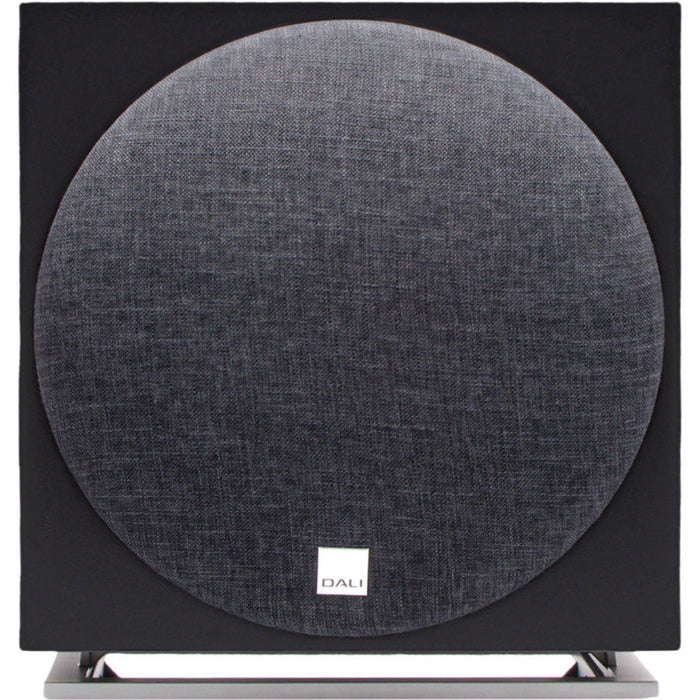

The port fires downward and has a convex flared profile that suppresses airflow noise. The aluminium base raises the cabinet 30 mm off the floor — a distance at which turbulence beneath the cabinet disappears while the benefit of downward firing is retained. The front grille is held by hidden magnets and removed by hand.
