SPHERICAL FAUCET ARCO 3/4 WITH HOLLANDER

by Arco
Original price €17,52 - Original price €17,52
Original price
€17,52
€17,52 - €17,52
Current price €17,52
SKU DGT0389660
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

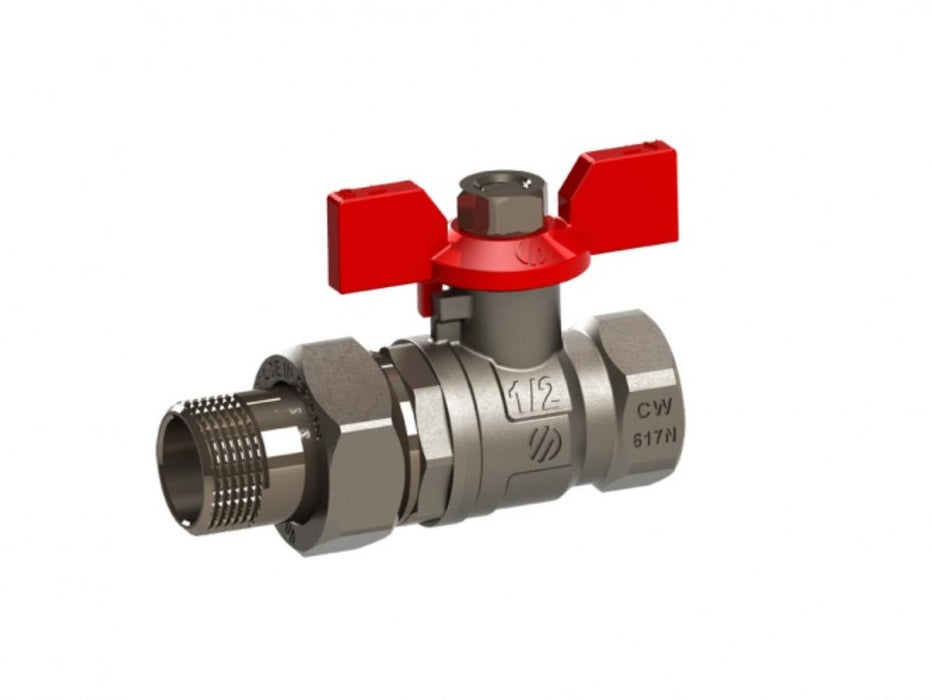

SENA ball valve VA30, straight, 3/4" FI x 1" FE, with 3/4" union, butterfly handle.

SENA series valves are brass valves with a ball seal, operated manually.

Due to their design and materials used, they are suitable for the following applications: drinking water distribution networks, drinking water intakes, plumbing installations, hot water distribution systems, heating installations.

SENA series products are suitable wherever valves are needed that guarantee tightness, allowing the flow of the medium to be shut off while maintaining the specified operating parameters.

  • 1/4 turn actuation system
  • Made of European brass according to EN12164 and EN12165 standards
  • Full flow
  • High-quality nickel-plated surface
  • External tightness provided by a nut and gland
  • Internal tightness provided by a system of PTFE seals

TERMS OF USE:

  • Nominal pressure: 30 bar
  • Pressure tests: 45 bar
  • Temperature range: -20°C to 120°C, excluding freezing
  • Medium: drinking water, hot water, 50% glycol, chilled water and compressed air up to 1'' - 20 bar and 60°C, over 1'' - 7 bar and 60°C
  • Dimensions: 3/4" FI x 1" FE
  • Finish: nickel
  • Type: with 3/4" half-union
  • Technical dimensions: A: 80 mm, B: 56 mm, C: 44 mm, D: G 3/4, E: G 1
