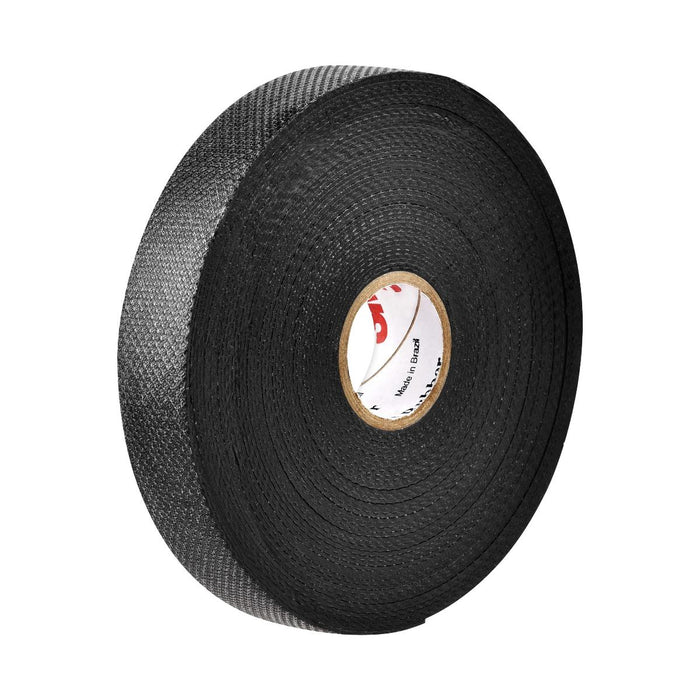

SELF-VULCANIZING TAPE 3M 4M/19MM

3M Scotch 23 Tape, 0.76 mm thick, is an excellent layering, self-vulcanizing tape on an ethylene-propylene rubber (EPR) base for making sleeves and heads (building basic insulation) for voltages from 600 V to 69 kV.
It does not require vulcanization, has a long shelf life and possesses excellent electrical insulation properties.

Features:
• Oil-resistant tape.
• High dielectric strength.
• Resistance to aggressive environments - gasoline, oils, greases and others.
• Physical and electrical properties are not affected by the degree of stretching.

Application:
• Primary electrical insulation for connecting cables at voltages up to 69 kV and constant temperature values ​​up to 90 °C.
• Ability to operate at emergency temperature values ​​of 130 °C.
• Sealing electrical connections against moisture.
• Busbar insulation.
• Sealing the ends of high voltage cables.
