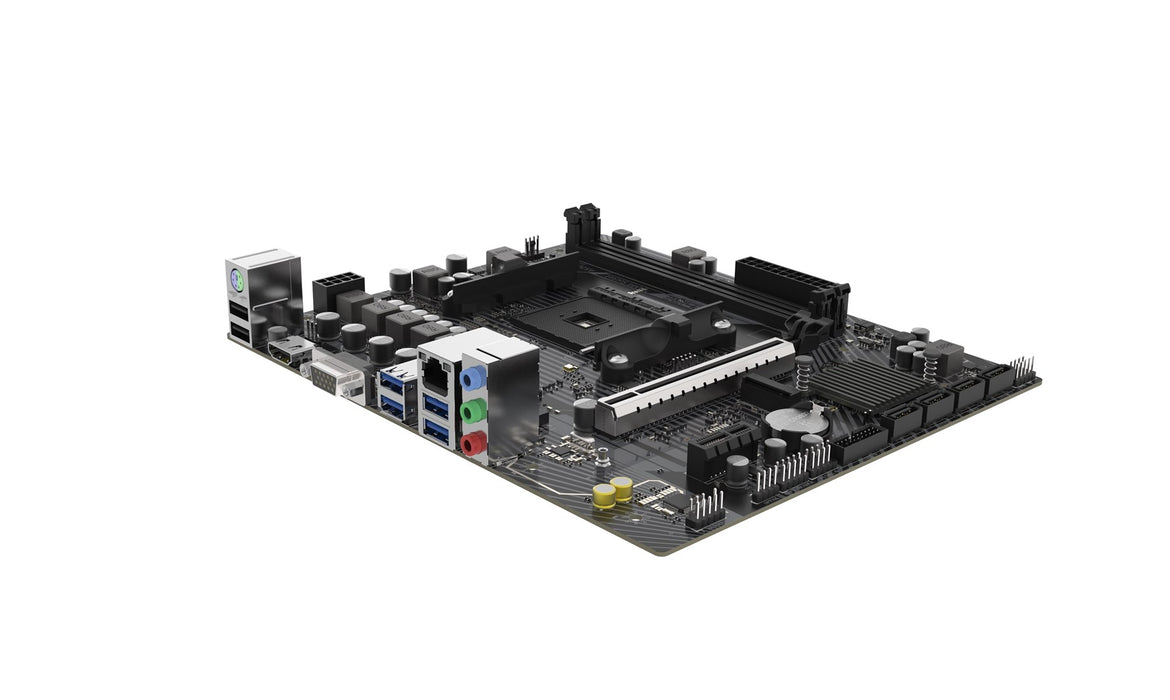

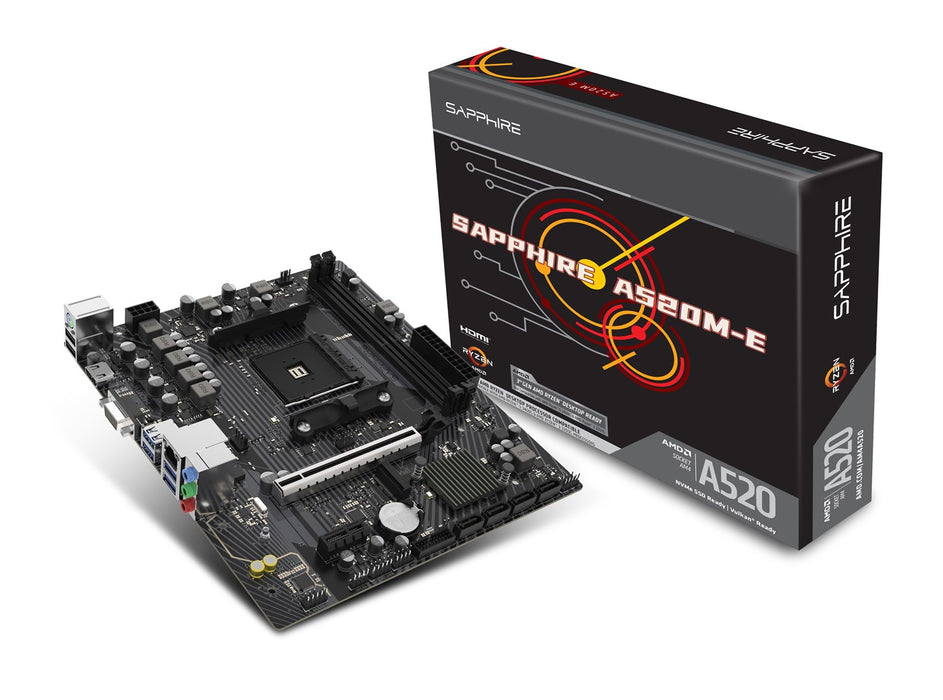

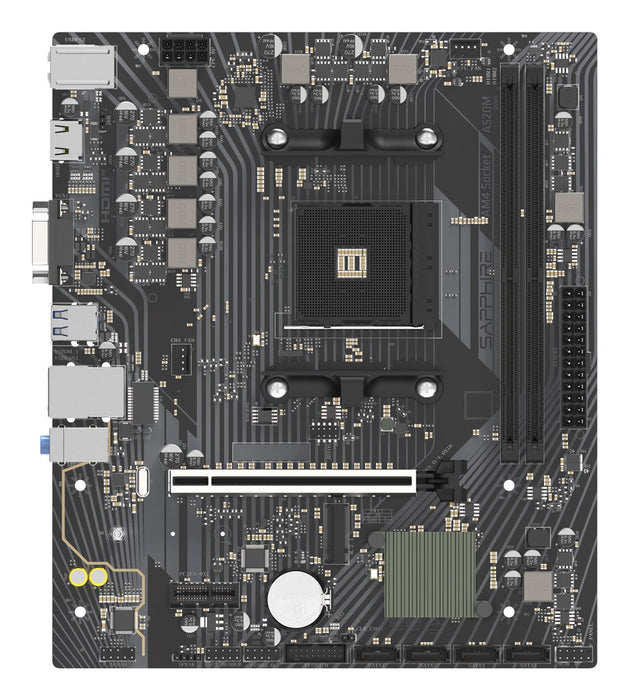

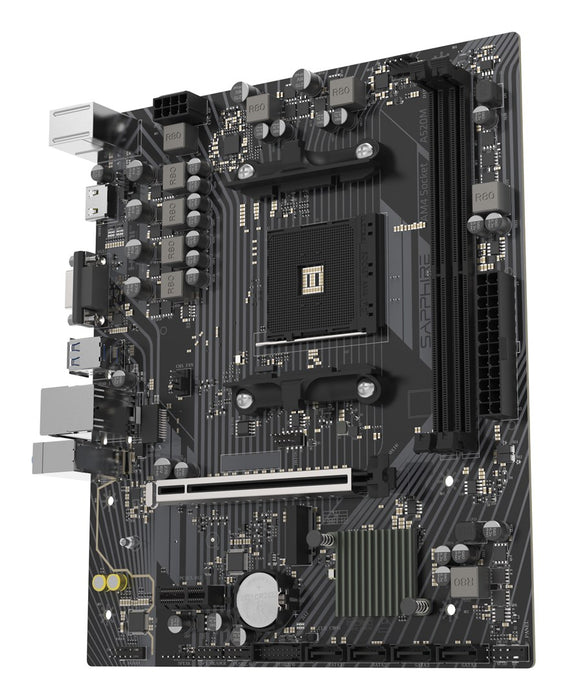

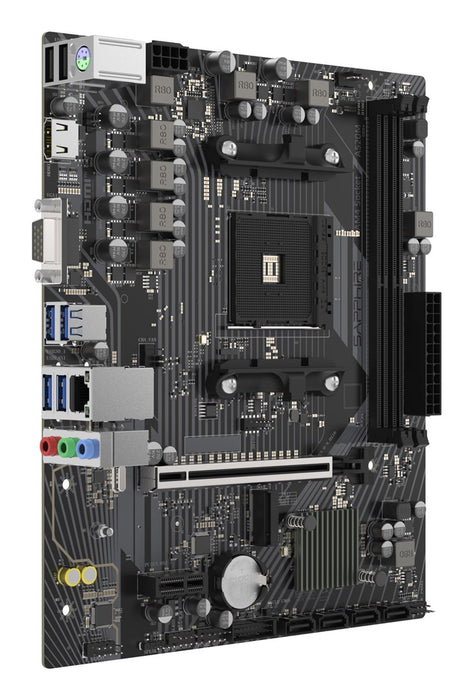

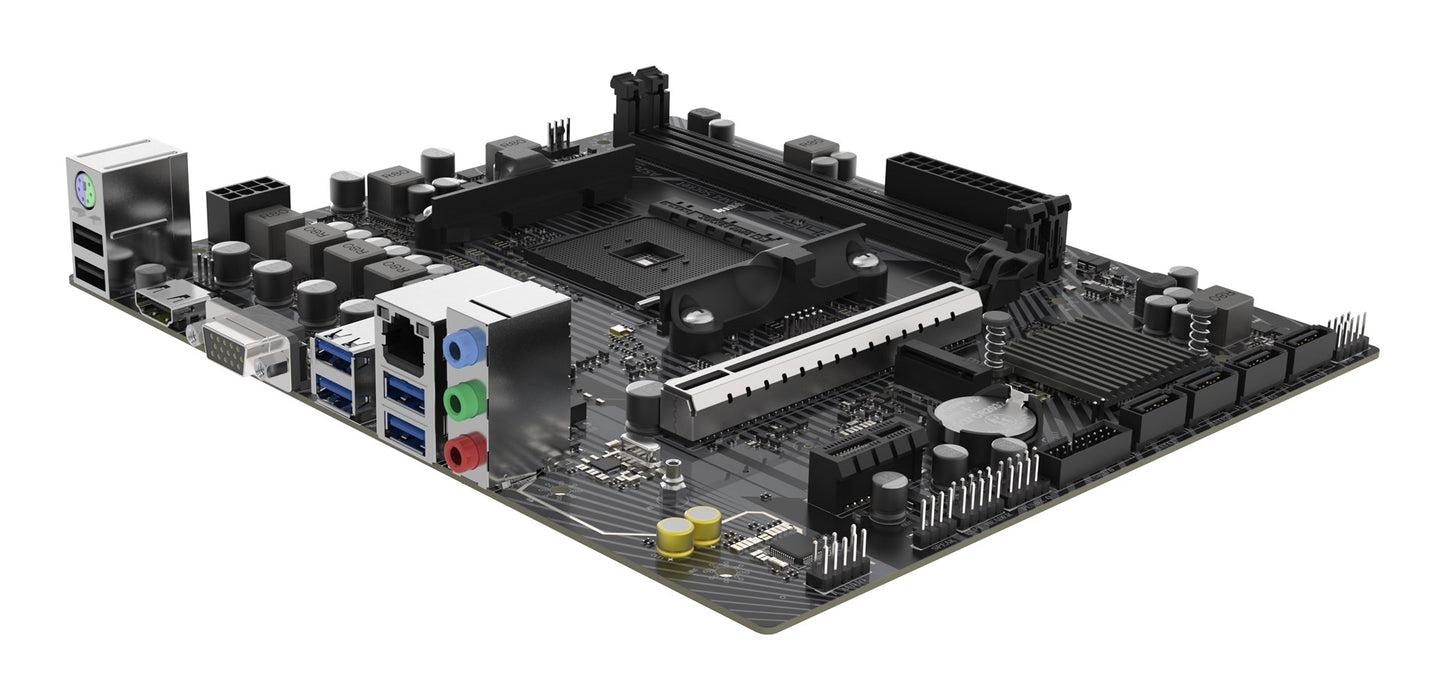

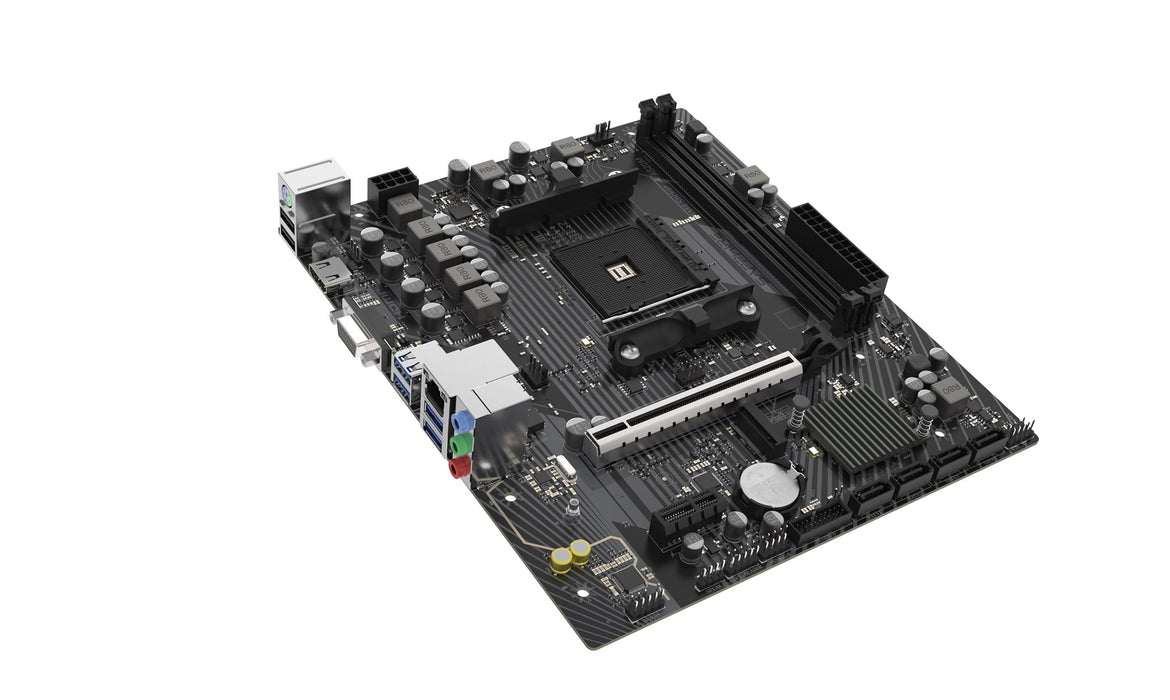

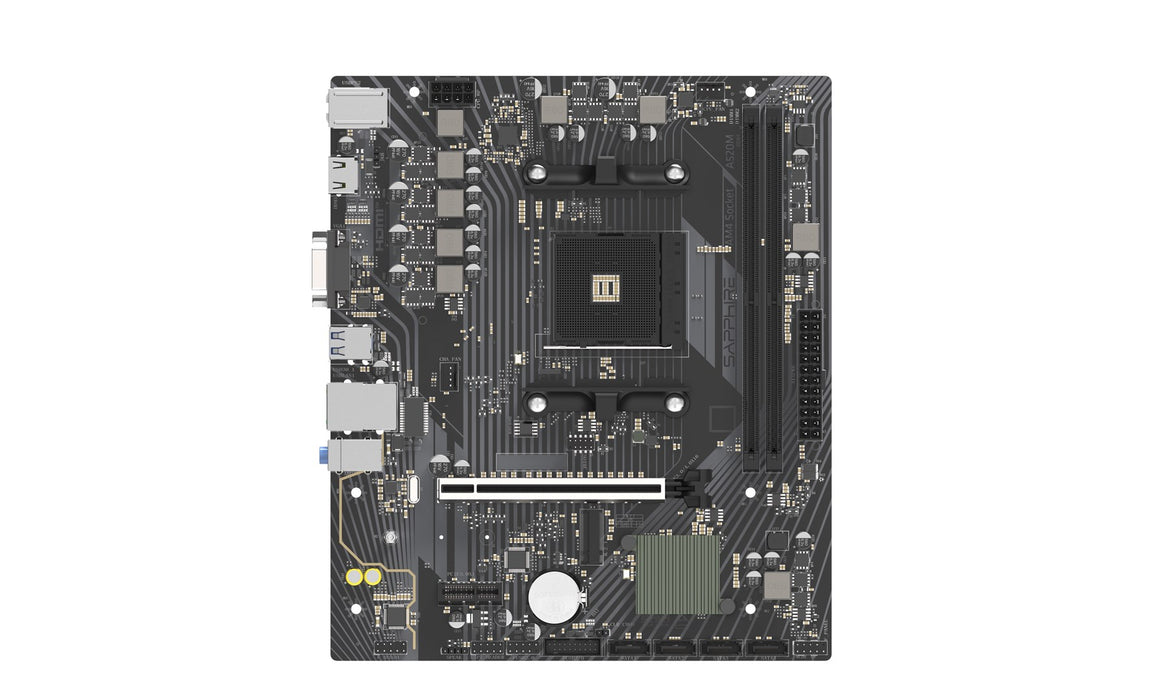

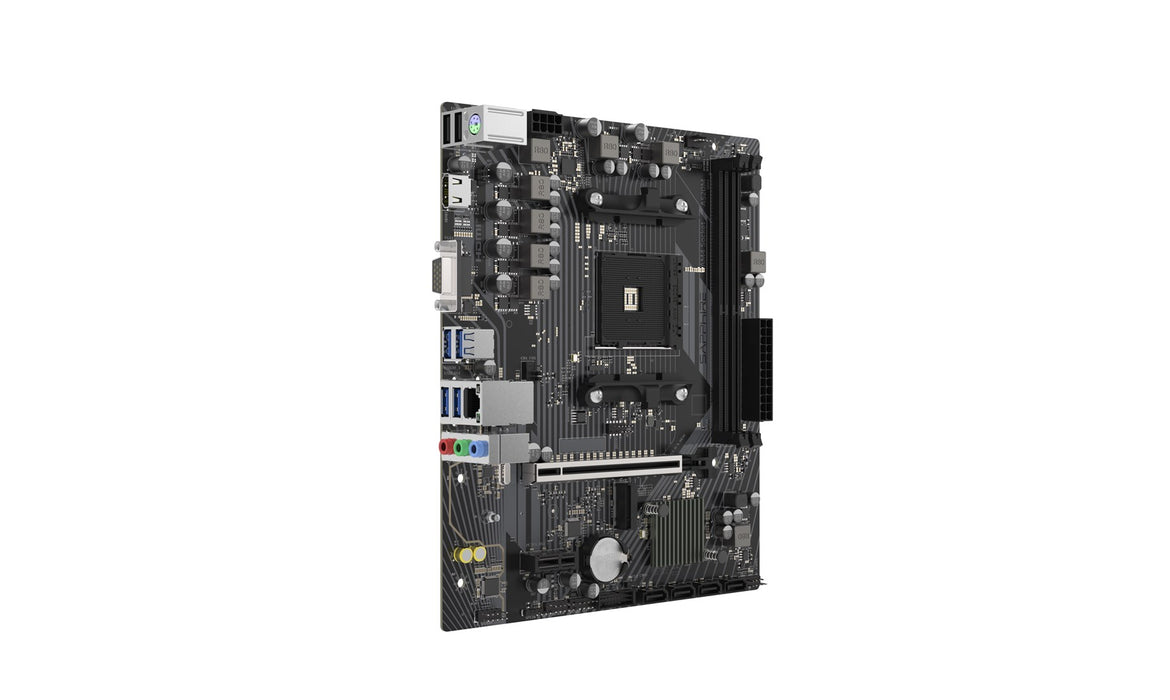

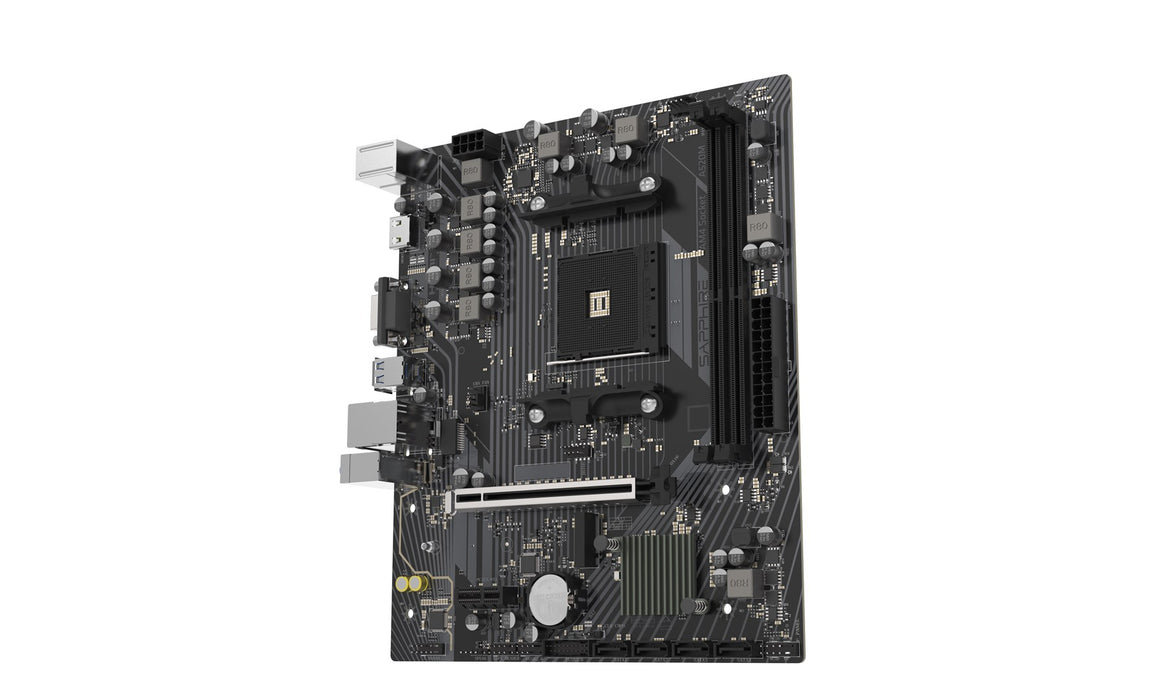

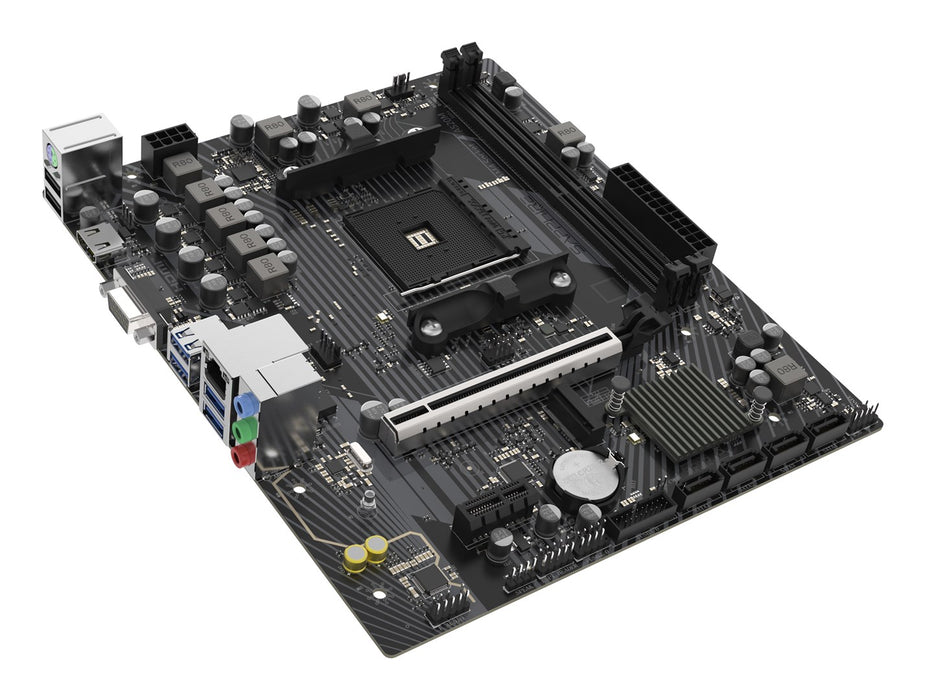

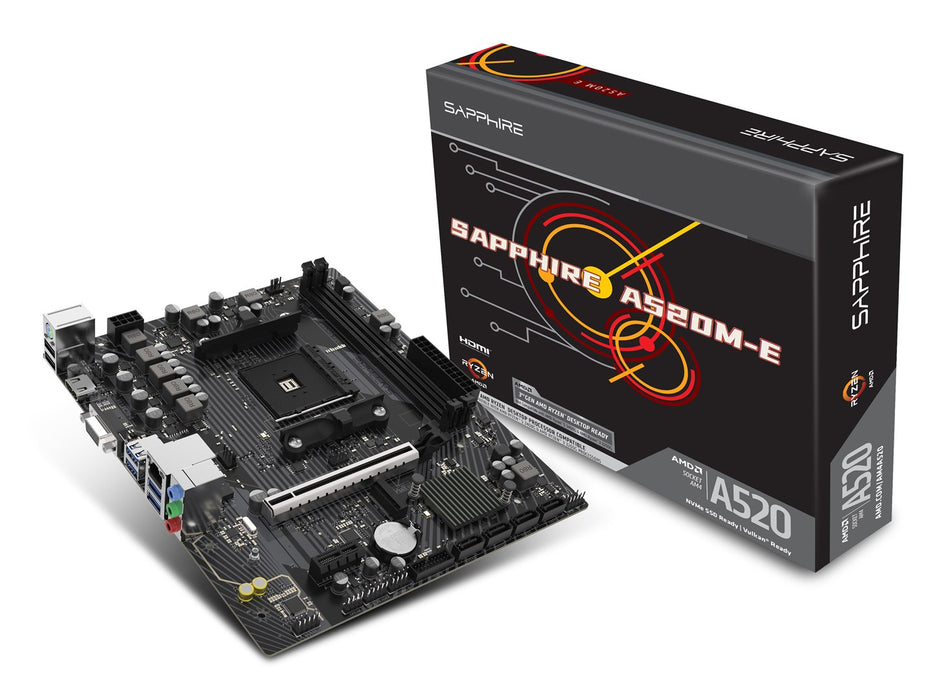

Sapphire A520M-E AMD A520 Socket AM4 micro ATX

Original price €81,14 - Original price €81,14
Original price
€81,14
€81,14 - €81,14
Current price €81,14
SKU DGT0276585
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Supported processor sockets AM4 socket
Processor manufacturer AMD
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor socket AM4 socket

Graphics

Parallel processing technology support Not supported

Features

Motherboard chipset AMD A520
Audio output channels 5.1 channels
Supported Windows operating systems Windows 11 x64, Windows 10 x64
Motherboard form factor micro ATX
Audio chip Realtek ALC897
Product colour Black
Motherboard chipset family AMD

Memory

Maximum internal memory 64 GB
Maximum internal memory per slot 32 GB
Supported memory frequency (max.) 3200 MHz
Memory slot type DIMM
Memory channels Dual-channel
Supported memory types DDR4-SDRAM
Number of memory slots 2

Weight and dimensions

Depth 197 mm
Width 230 mm

Network

LAN controller Realtek RTL8111M
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes

Internal I/O

Number of processor fan connectors 1
ATX power connector (24-pin) Yes
USB 2.0 connectors 1
Number of chassis fan connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
CPU fan connector Yes
Front panel connector Yes
Audio connector Yes

BIOS

CMOS clear jumper Yes

Storage controllers

Supported storage interfaces PCI Express 3.0, SATA III
Supported drive types HDD and SSD
Number of supported drives 5

Rear panel ports

USB connector type USB Type-A
Number of USB 2.0 ports 2
Ethernet LAN (RJ-45) ports 1
Microphone input Yes
Number of PS/2 ports 1
Number of VGA (D-Sub) ports 1
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Headphone outputs 3

Expansion slots

PCI Express x16 (Gen 3.x) slots 1
Largest key size for 1st M.2 2280
Highest PCI Express generation on 1st M.2 3.0
PCI Express x1 (Gen 3.x) slots 1
Number of M.2 (M) slots 1
