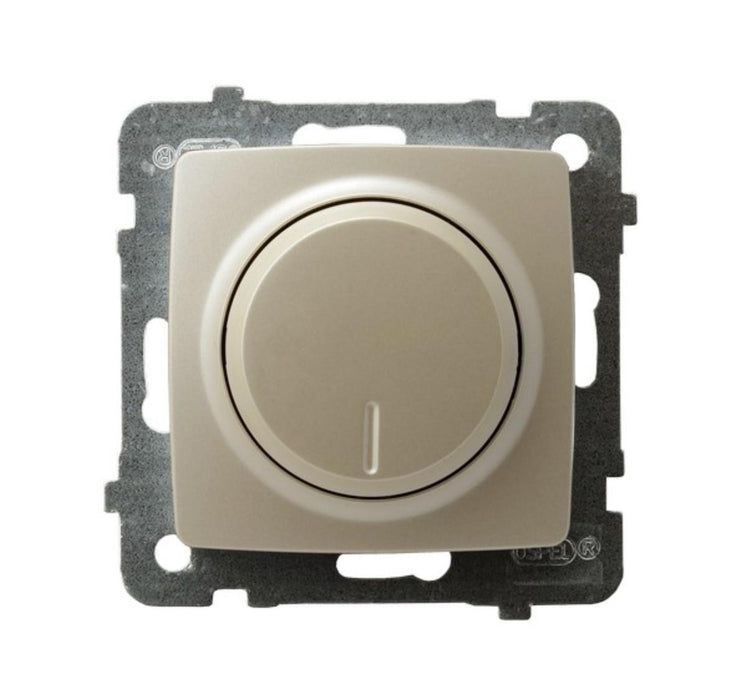

ROTARY DIMMER LED 100W CREAM PEARL KARO

by Ospel
Original price €50,69 - Original price €50,69
Original price
€50,69
€50,69 - €50,69
Current price €50,69
SKU DGT0402328
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

DESCRIPTION
The dimmer is used to switch on and off and adjust the light intensity in apartments or other rooms, for example offices, shops, etc. It is switched on and off by pressing the button and adjusted by turning the button. To get brighter light, turn the button to the right (clockwise). The set requires a frame. It can be used for systems with multiple frames.
Compatible lighting
The universal push-rotary dimmer works with lighting:

  • LED 230V - dimmable light sources 0-100W maximum 10 pcs.
  • LED 12V - uses a dimmable constant-current (DC) electronic transformer or a dimmable electronic transformer (AC) with an AC/DC converter
  • GLS - incandescent, halogen 230V
  • CFL - compact dimmable
  • V halogen lamp - with dimmable electronic transformer

Do not use with toroidal-core transformers or other inductive loads. Connecting such devices will damage the dimmer.
The light source of the LED must be dimmable. This information is usually found on the packaging or the light source and is usually represented by the symbol below.
Automatic timer
The dimmer can be used as an automatic timer that will switch off the lighting by itself after a set time (from 30 seconds to 128 minutes) when it is turned on.
Bedtime Mode
When the button is pressed and held (for more than 2.5 seconds), the "Bedtime" function is activated, which turns off the lighting with a 90-second delay. During the function, all dimming features are available, i.e. you can adjust the brightness of the light at any time or turn off the lighting by briefly pressing the button.
Work in a stair system
The dimmer allows operation in a staircase system with a "light" or "bell" closing switch without backlight. It is switched on and off with a short press of the button. If you want to adjust the brightness, hold the button for more than 2 seconds. If we release the button, the brightness adjustment will stop at the current level. While holding the button, the brightness will continuously change from minimum to maximum and vice versa. Adjusting the brightness via the external button always starts adjusting the brightness "upwards". With the dimmer turned off, we can hold the external button for more than 2 seconds, after which the dimmer will turn on at the minimum programmed level and start increasing the light brightness according to the scheme described above.
Please read the operating instructions before installing the dimmer!
TECHNICAL DATA

  • Manufacturer code: ŁP-8SL2/m/42
  • Color: Cream Pearl
  • Warranty: 24 months
  • Installation type: Flush-mounted installation
  • Security level: IP-20
  • Material: Plastic
  • Rated voltage: 230V
  • Connection type: Screw terminals
  • Power supply: 230V ~50Hz
  • Load range: LED: 0-100W, GLS: 10-250W
  • Load type:
  • - Incandescent filament
  • - Halogen
  • - LED
  • Frame included: NO
  • Compatibility with LED: yes
