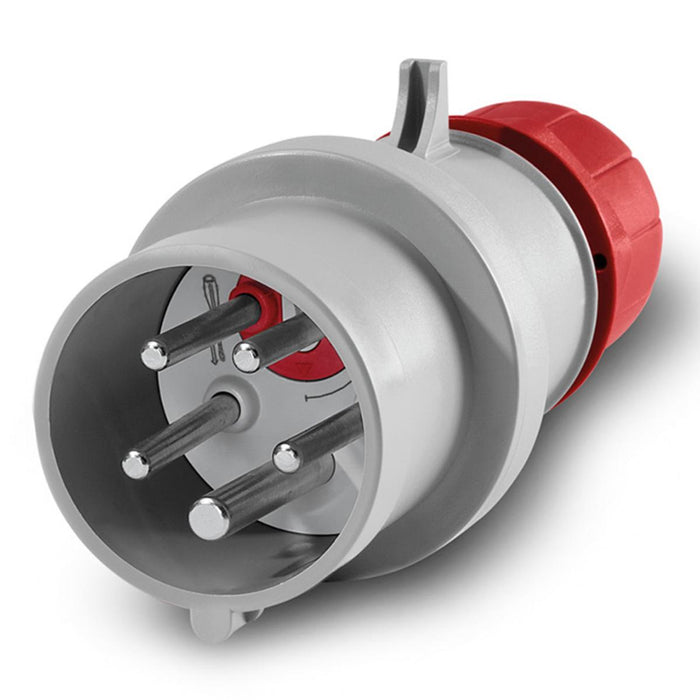

PLUG 3P+N+E 16A IP54 REVERSE SCAME

Three-phase Euro plug 16A, 3P+N+E 6h, IP54, Scame Optima Reverse 213.1637RV
The OPTIMA-REVERSE series is a range of industrial plugs (Euro standard) from 16A and 32A, which allow quick reversal of two phases to restore the correct direction of rotation for three-phase motors on mobile and stationary loads. Phase inversion is carried out simply by pressing and turning the support where the two phase pins are mounted with a screwdriver. Robust and safe industrial plugs, thanks to the use of a high-performance technopolymer and an external cable gland with a cable clamp. OPTIMA series plugs are offered with screw terminals and guarantee the best connection. The effectiveness of the contact surfaces over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and ageing. The quick opening of the plug housing is thanks to a steel spring mechanism. Products of the OPTIMA series are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA REVERSE (quick reversal of the two phases with a screwdriver)
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: mobile / portable
• poles: 3P + N + E
• clock position: 6h
• rated current: 16A
• rated voltage: 346 – 415V
• operating frequency: 50Hz, 60Hz
• colour: RED
• degree of protection: IP44 / IP54 (resistant to water splashes)
• IK protection degree at 20°C: IK 08
• flame-retardance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: gland (secure cable grip)
