| Marketing description |

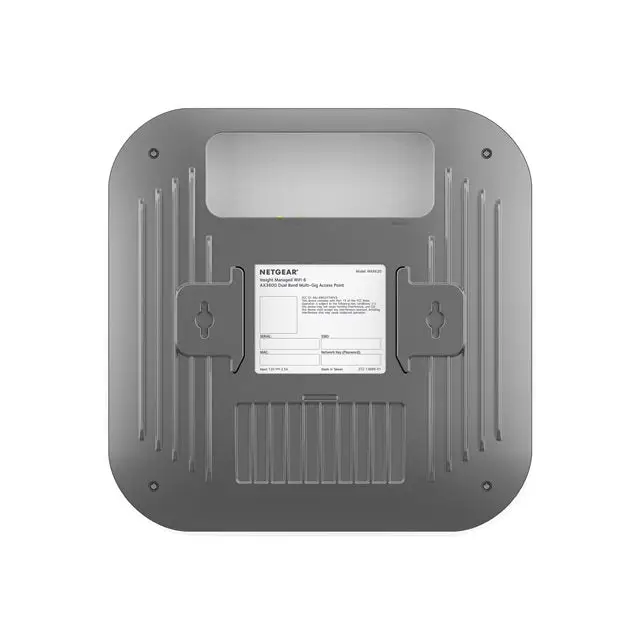

The WAX620 access point is a high-performance Wi-Fi 6 access point, ideal for small and medium-sized businesses. The access point features a dual-band 4x4 design that delivers up to 3.6Gbps aggregate Wi-Fi throughput, supported by a 2.5Gbps Power-over-Ethernet port, and is a class leader in performance and cost-effectiveness.
The WAX620 access point supports the next generation of Wi-Fi 6 smartphones, IoT devices and laptops, providing up to 40% more throughput for each individual device in the 5GHz band and 100% more throughput in the 2.4GHz band compared with the equivalent previous-generation model. It provides 4 times more client device connections, allowing businesses to serve more customers with better speed and less congestion.
The WAX620 access point is ideal for environments with large numbers of client devices, such as schools, hotels, restaurants and conference centres, and provides enterprise-class network security Wi-Fi. With Insight management WAX620 works seamlessly with your existing NETGEAR Insight managed switches, Wi-Fi access points and network storage, and is compatible with previous-generation devices Wi-Fi (for example Wi-Fi 5 802.11ac) and Wi-Fi access points. |
| Product features |
-
Enhanced connectivity
With support for 802.11ax, also known as Wi-Fi 6, NETGEAR Insight WAX620 offers faster and more efficient wireless connectivity. This technology ensures that a greater number of devices can connect simultaneously without sacrificing speed or reliability.
-
Robust security
WAX620 provides comprehensive security features, including WPA3 encryption and support for Extensible Authentication Protocol (EAP), RADIUS and others. These features provide a secure network environment, protecting sensitive data from unauthorised access.
-
High performance
Equipped with 4x4 MU-MIMO technology and capable of delivering up to 2400 Mbps in the 5 GHz band and 1200 Mbps in the 2.4 GHz band, this wireless access point is designed to support high-bandwidth activities without interruption.
-
Universal deployment
The device is designed for indoor use with a sturdy housing and can be wall- or ceiling-mounted, providing deployment flexibility to suit the spatial requirements of any office or business environment.
-
Intelligent management features
Features such as band steering, VLAN support and Target Wait Time (TWT) contribute to efficient management and optimisation of the network, providing users with seamless connectivity and reduced power consumption.
|
| General |
| Device type |
Radio access point |
| Sturdy design |
For indoor use |
| Width |
20.57 cm |
| Depth |
20.57 cm |
| Height |
3.43 cm |
| Weight |
783 g |
| Localisation |
Europe |
| Networks |
| Form factor |
Wall / ceiling mount |
| Connectivity technology |
Wireless |
| Line coding format |
OFDMA, OFDM |
| Data channel protocol |
802.11ax, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread spectrum method |
OFDMA, OFDM |
| Remote management protocol |
RADIUS |
| Frequency band |
2.4 GHz, 5 GHz |
| Performance |
Maximum throughput (5 GHz): 2400 Mbps
Maximum throughput (2.4 GHz): 1200 Mbps |
| Capacity |
Maximum number of users: 256
Concurrent users: 75
Total SSIDs: 8
Streams: 8 |
| Wi-Fi rating |
AX3600 |
| Status indicators |
Power, LAN, 2.4/5 GHz |
| Features |
4x4 MU-MIMO technology, VLAN support, BSS Coloring, Target Wait Time (TWT), Beamforming+, WDS bridge, WDS PTMP (point to multipoint), WDS PTP (point to point), WDS repeater mode, MAC address filtering, 802.1x authentication, neighbouring AP detection, SSID broadcast blocking, guest network, Captive Portal, bandwidth management, LLDP support, band steering, Backhaul Technology, Wi-Fi Wi-Fi Multimedia (WMM) support, Wireless Distribution System (WDS) support, automatic uplink (auto MDI/MDI-X), transmit power control (TPC) |
| Encryption algorithm |
WPA-Enterprise, SSL, WPA, WPA2, WPA3, TLS, TTLS, PEAP, WPA2-Enterprise |
| Authentication method |
RADIUS, Extensible Authentication Protocol (EAP) |
| Compatible standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, IEEE 802.3at, IEEE 802.3af, IEEE 802.11i, IEEE 802.1x, IEEE 802.1ab (LLDP) |
| Ceiling-mount antenna |
| Antenna |
Internal |
| Internet of Things (IoT) |
| Internet of Things (IoT) compatible |
Yes |
| Extension / connectivity |
| Interfaces |
1 x 1/2.5GBase-T (PoE+) - RJ-45 |
| Miscellaneous |
| Included accessories |
Wall/ceiling mounting kit |
| Power |
| Power over Ethernet (PoE) support |
PoE+ |
| Software / system requirements |
| Included software |
NETGEAR Insight (1-year subscription) |
| Manufacturer warranty |
| Service and support |
Limited warranty – replacement – 5 years – response time: next business day
Technical support – 90 days |
| Operating parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
