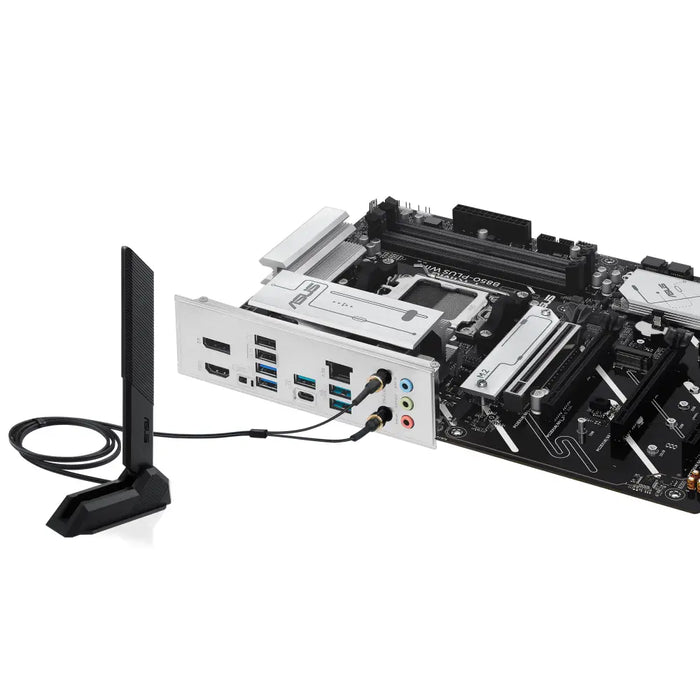

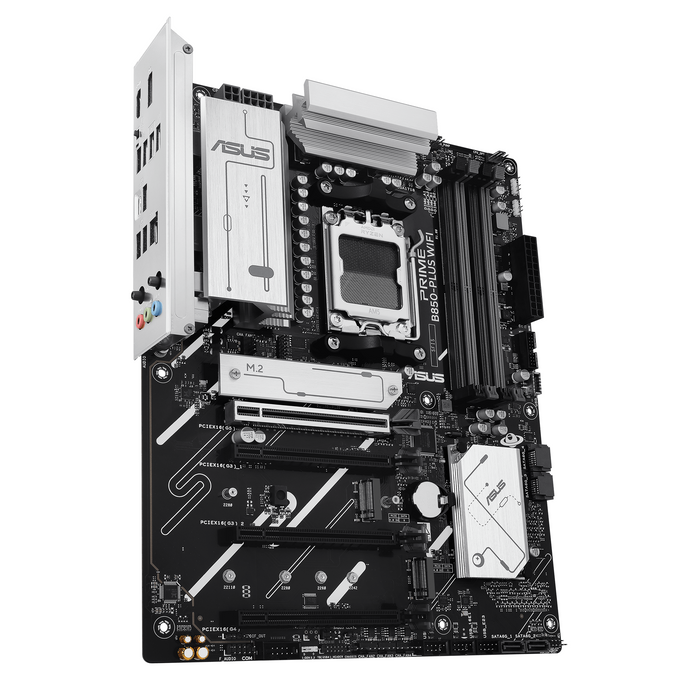

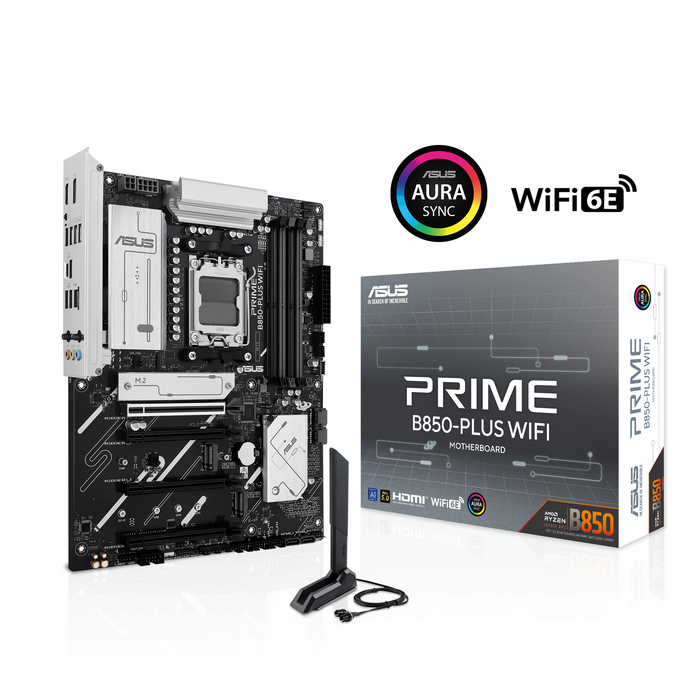

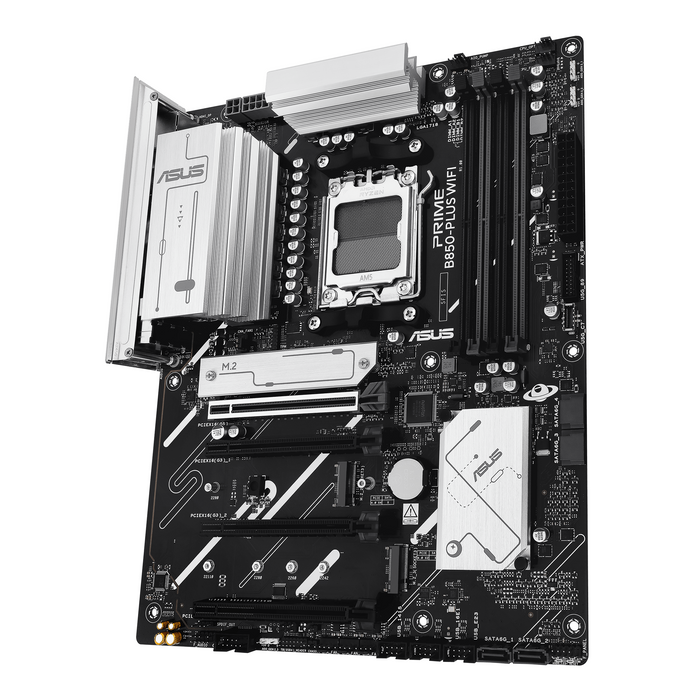

Motherboard ASUS PRIME B850-PLUS WIFI 6E socket AM5

Original price €279,90 - Original price €279,90
Original price
€279,90
€279,90 - €279,90
Current price €279,90
SKU DGT0168089
Ships within 4 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor socket AM5 socket
Processor manufacturer AMD
Compatible processor series AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Graphics

Parallel processing technology support Not supported
Integrated graphics card No

Features

Motherboard chipset family AMD
Audio output channels 7.1 channels
Product colour Multicolour
Motherboard chipset AMD B850
Motherboard form factor ATX
Supported Windows operating systems Windows 10 x64, Windows 11

Memory

Memory slot type DIMM
Supported memory speed (max.) 8000 MHz
Unbuffered memory Yes
Maximum internal memory 256 GB
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory channels Dual-channel
ECC compatibility ECC and Non-ECC

Weight and dimensions

Height 48 mm
Width 305 mm
Depth 244 mm

Networking

Bluetooth version 5.3
Bluetooth Yes
Highest Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes

Internal I/O

12V power connector Yes
ATX power connector (24-pin) Yes
S/PDIF output connector Yes
Number of SATA III connectors 4
CPU fan connector Yes
USB 2.0 connectors 3
Thunderbolt connectors 1
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of chassis fan connectors 4
EPS power connector (8-pin) Yes
Number of COM connectors 1
Case open connector Yes
TPM connector Yes
Number of CPU fan connectors 1

BIOS

BIOS type UEFI AMI

Packaging data

Packaging weight 1.26 kg
Packaging height 273 mm
Packaging width 353 mm
Packaging depth 68 mm

Storage controllers

Number of supported hard drives 4
Supported drive types HDD and SSD
RAID levels 10, 0, 1, 5
Supported storage interfaces M.2, SATA III
RAID support Yes
Number of supported drives 7

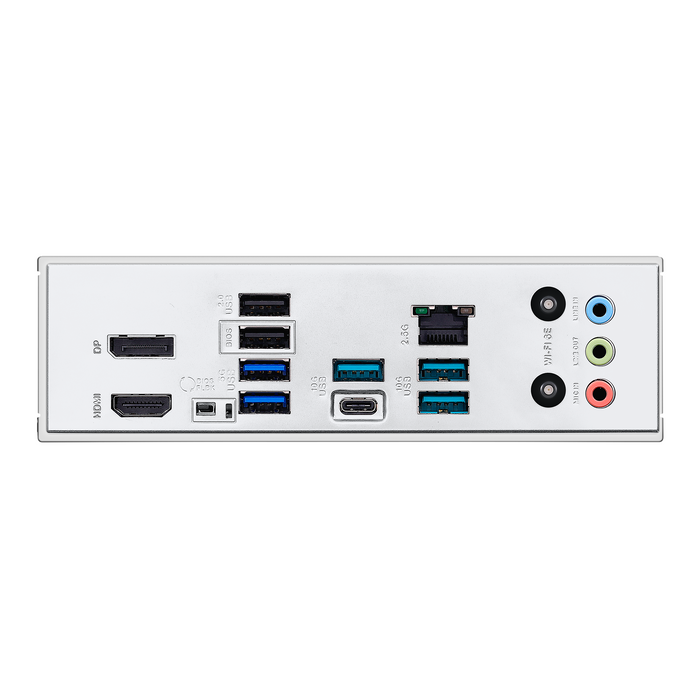

Rear panel ports

Number of DisplayPort ports 1
Ethernet LAN ports (RJ-45) 1
Number of USB 2.0 ports 2
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 2
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 3
Number of HDMI ports 1
Microphone input Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 3.x) slots 2
Number of M.2 (M) slots 3

Other features

Weight 1.05 kg
