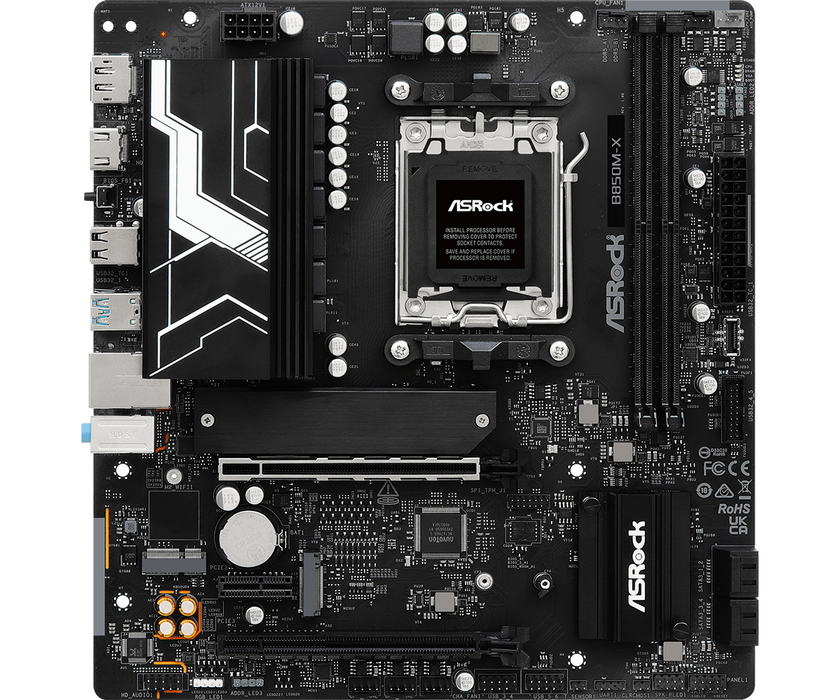

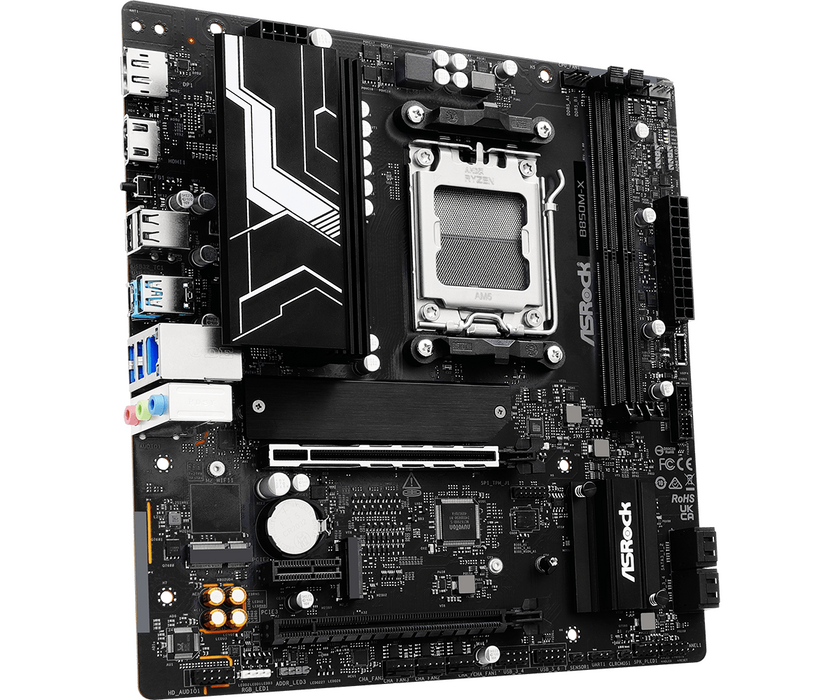

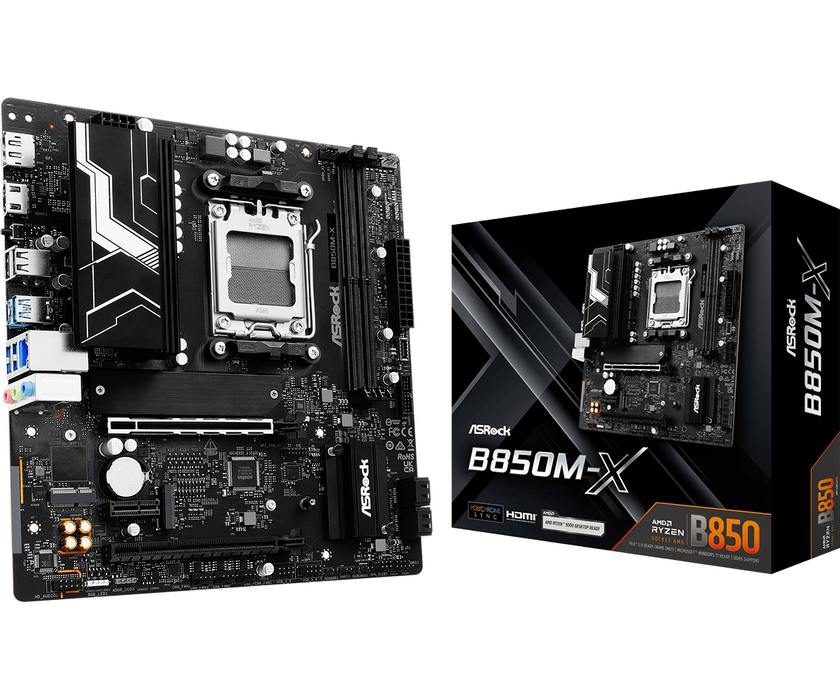

Motherboard ASRock B850M-X socket AM5

Motherboard ASRock B850M-X socket AM5

ASROCK
€160,90 - €160,90
€160,90
€160,90 - €160,90
€160,90
SKU DGT0215889
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor manufacturer AMD
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Supported processor sockets AM5 socket
Processor socket AM5 socket

Graphics

HDCP Yes
Maximum resolution 3840 x 2160 pixels
Parallel processing technology support Not supported

Features

Audio chip Realtek ALC897
Product colour Black
Motherboard chipset family AMD
Audio output channels 7.1 channels
Motherboard chipset AMD B850
Motherboard form factor micro ATX
Supported Windows operating systems Windows 10 x64, Windows 11 x64

Memory

Maximum internal memory 128 GB
Number of memory slots 2
Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Memory slot type DIMM
ECC compatibility ECC and Non-ECC

Weight and dimensions

Width 244 mm
Depth 226 mm

Network

LAN controller Dragon RTL8125BG
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Mobile network connectivity No

Internal I/O

Front panel audio connector Yes
ATX power connector (24-pin) Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
CPU fan connector Yes
Number of SATA III connectors 4
Number of chassis fan connectors 3
TPM connector Yes
RGB LED pin header Yes
EPS power connector (8-pin) Yes
Number of CPU fan connectors 2
Number of RGB LED pin headers 1
12V power connector Yes
Number of USB Type-C ports 1
Number of EPS power connectors (8-pin) 1

BIOS

BIOS type UEFI AMI

Package contents

Included cables SATA
Included screws Yes

Storage controllers

Supported drive types HDD and SSD
RAID levels 1, 0, 10
RAID support Yes
Supported storage interfaces PCI Express 4.0, PCI Express 5.0, SATA III

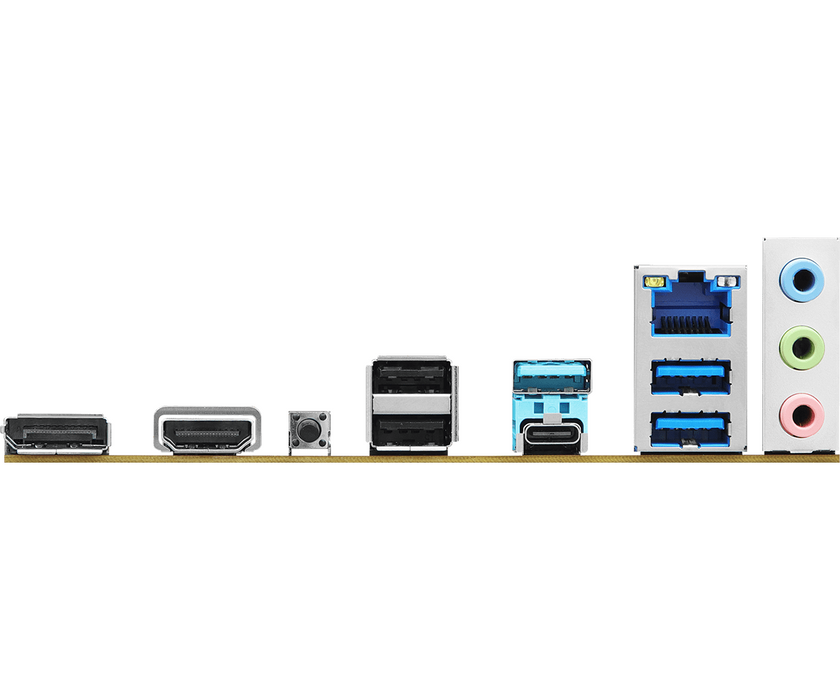

Rear panel ports

Number of USB 2.0 ports 2
DisplayPort version 1.4
Number of DisplayPort ports 1
Ethernet LAN ports (RJ-45) 1
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 3
Line input Yes
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports 1
Audio output 3.5 mm
Microphone input Yes
HDMI version 2.1

Expansion slots

Number of M.2 (M) slots 2
PCI Express x1 (Gen 4.x) slots 1
Number of M.2 (E) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Highest PCI Express generation for 1st M.2 5.0
Highest PCI Express generation for 2nd M.2 4.0
Largest key size for 1st M.2 2280
Largest key size for 2nd M.2 2280

Safety warning

Warnings Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local electronic waste regulations., Do not disassemble to avoid damage to internal components and loss of warranty.
