Description
Asrock B650E is a high-quality motherboard with an optimized VRM design. This optimization consists of monitoring the current and temperature of each phase, thereby delivering smoother and more precise power to the processor with improved performance and OC capability. This motherboard helps you upgrade your system and provides maximum performance without any compromises. ASRock does not compromise on any details. All B650 motherboards are built with an 8-layer design, and if you wish, you can increase memory overclocking performance to 6400MHz and beyond by enabling pre-tested profiles. Make sure your memory modules support AMD EXPO/Intel XMP, and overclocking can be easier and more accessible than ever. Due to the unique electrical architecture of DDR5 DIMM, there is a high risk of damaging the memory module if AC power is not properly disconnected during removal or installation. To prevent this, ASRock has implemented a trouble-free protection circuit on every DDR5 motherboard, reducing the risk of damage to your memory module. Compared to the conventional DIP-style PCIe slot, the SMT-type PCIe slot improves signal flow and increases stability at high speeds. This is key to full support of the ultra-fast speeds of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable of breathtaking bandwidth of 128GBps, ready to unleash the full potential of high-end graphics cards of the future.
Specifications:

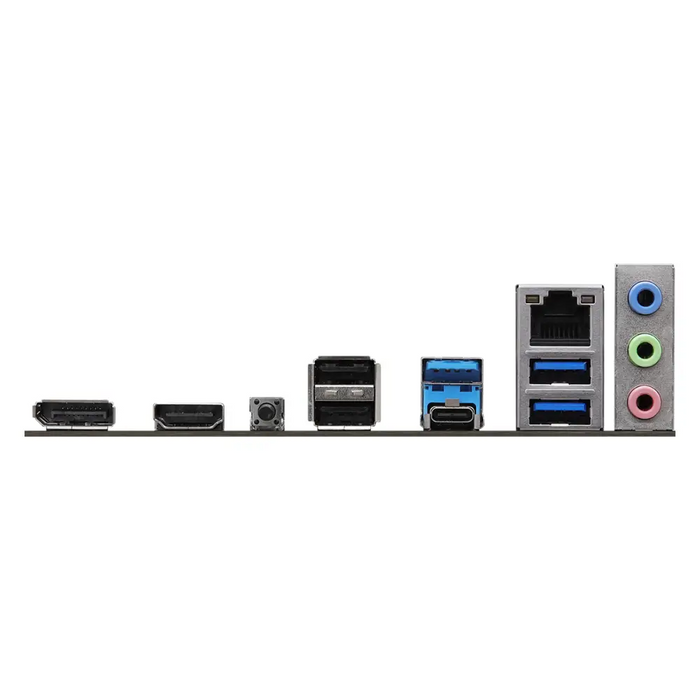

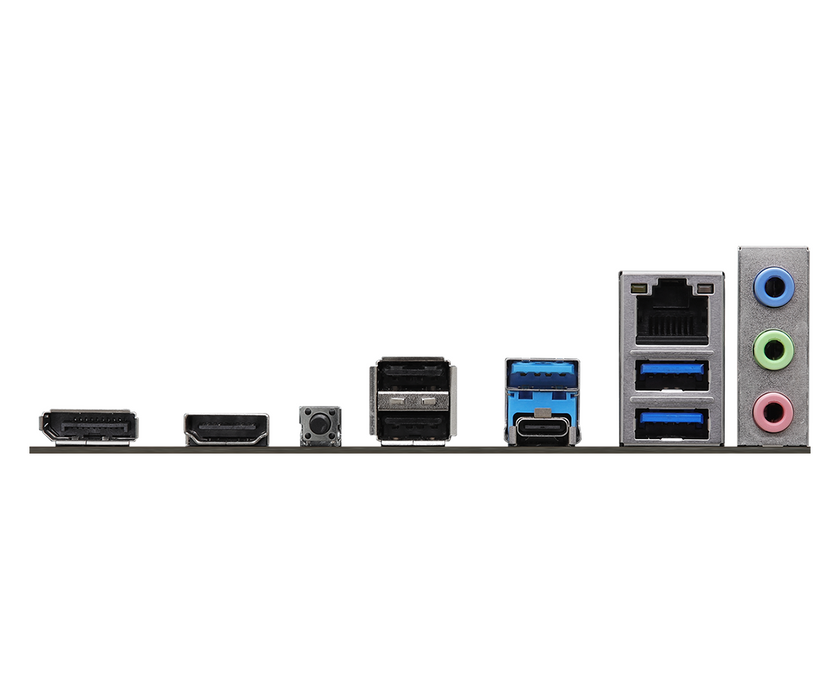

Series: A620M-HDVProcessor: AMD AM5 Ryzen 7000 Chipset: AMD A620BIOS: 256Mb AMI UEFI Legal BIOS with GUI supportMemory: DDR5Number of slots: 2 DIMM Slots, Max. capacity of system memory: 96GBAudio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic AudioWireless network: -Connectors: 24 pin ATX Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, 2 x USB 2.0 Headers, USB 3.2 Gen1 HeaderSlots: CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleInterface: 2 x Antenna Mounting Points, HDMI Port, DisplayPort 1.4, USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, RJ-45 LAN Port, BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware: ASRock Motherboard Utility (A-Tuning), ASRock XFast LANOperating system: Microsoft Windows 10 64-bit / 11 64-bitForm factor: Micro ATX Form Factor: 24.4 cm x 22.6 cmSpecial features: Superb Productivity, Rock-Solid Durability, EZ Update, EZ Troubleshooter
