GMKtec M3 MINI-PC Intel i5-12450H 32GB RAM + 1TB (black)
GMKtec M3 MINI is a compact (114 x 106 x 42.5 mm) PC, ideal for both home and professional applications. With an Intel i5-12450H 8-core processor and Intel UHD 48 EU graphics chip, it delivers impressive performance. In addition, 2 HDMI 2.0 and DisplayPort 1.4 ports allow you to display images on 3 monitors simultaneously. What's more, the model comes with built-in Windows 11 Pro and supports Linux.
Large capacity
The M3 MINI-PC comes with 32GB RAM and a 1TB SSD, providing ample space for storing files and applications.
Fast connection
The M3 MINI PC offers a fast and reliable Dual Band Wi-Fi 6 2*2 2400 Mbps connection, so you don't have to worry about interference. In addition, it connects to a compatible device via Bluetooth 5.2 and has an Rj45 port so you can enjoy a 2.5G internet connection.
Efficient performance
Work comfortably with the GMKtec M3 MINI. The mini computer uses an octa-core Intel i5-12450H processor, which translates into efficient hardware operation. In addition, it offers a UHD graphics chip (48EU) and a 3rd generation PCIe interface providing read speeds of 3,500 MB/s.
Thoughtful design

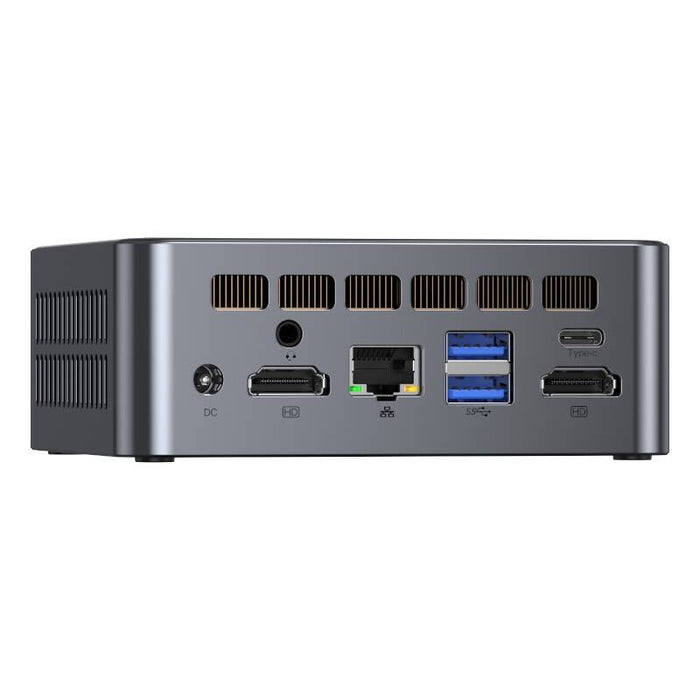

The GMKtec M3 MINI features dual copper turbines and a fan, which protects the hardware from overheating. In addition, the included VESA mount and screws allow you to attach the computer to a surface of your choice. In turn, a number of different ports to choose from: x2 HDMI, USB-C/DP1.4, x3 USB3.2, x1 USB2.0, 3.5mm audio and RJ45 allow you to connect various devices to the computer.
Included
- MINI PC M3
- power supply + cable
- HDMI cable
- VESA mount + screws
- user manual
| Manufacturer |
GMKtec |
| Model |
M3 |
| Dimensions |
114 x 106 x 42.5 mm |
| Housing material |
Frame: metal, sandblasted oxidized; finish: tempered glass; bottom: plastic |
| Weight |
430 g |
| Processor |
Intel i5-12450H |
| Max. clock speed |
4.4 GHz |
| Power consumption |
45W |
| RAM |
DDR4 3200 |
| RAM capacity |
16 GB |
| EMMC |
No |
| SSD |
M.2 2280 512GB (built-in); support up to 2TB; expandable with M.2 2242 SATA up to 2TB |
| 2.5" HDD/SSD support |
No |
| TF card reader |
No |
| Real-time clock start |
Supported |
| BIOS support |
Yes |
| TPM |
TPM 2.0 |
| Video outputs |
x2 HDMI; x1 Type-C |
| Status indicator |
Power status light |
| Wi-Fi |
Wi-Fi 6 |
| Interface type |
PCIe |
| Bluetooth |
5.2 |
| Bluetooth interface |
USB 2.0 |
| Built-in Wi-Fi |
NIe |
| Built-in Bluetooth |
No |
| LAN |
x1 Giga LAN 2500M/1000M/100M/10M |
| USB 2.0 |
x1 USB 2.0 USB-A |
| USB 3.2 |
x3 USB 3.2 USB-A |
| External memory expansion |
No |
| Audio/Video outputs |
x2 HDMI 2.0 |
| Ethernet Ports |
x1 RJ45 |
| Data transfer |
Yes |
| Buttons |
Power button |
| DC IN |
Yes |
| Audio input/output |
1 x 3.5mm headphone jack (input/output) |
| Antennas |
FPC Wi-Fi + BT; FPC Wi-Fi |
| Operating system |
Windows 11 Pro installed, Linux support |
| Operating temperature |
0~40℃ |
| Storage temperature |
0~40℃ |
| Humidity |
10-90%RH |
| Power supply |
Input 100~240V 50/60Hz, output 20V/5A 100W,DC 5.5/2.5mm |
| IR remote control |
No |
| VESA |
Yes |
| Radio bands |
WIFI 2.4G/WIFI 5G/BT |
| Max. transmitting power |
17dBm / 14dBm / 6dBm |
