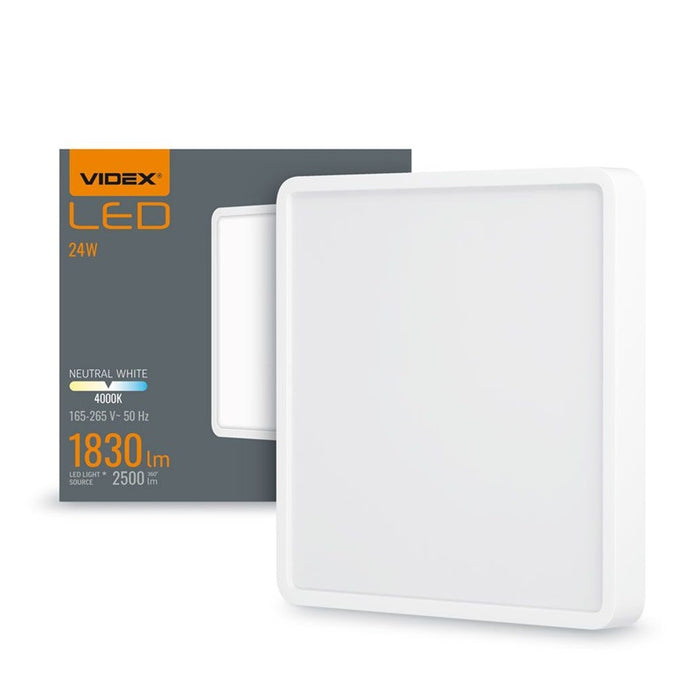

LED LAMP VLE-DLSS-244 SURFACE FRAME SQ 24W/4K/WH VIDEX

Power in operating mode (Pon): 20 W

Useful luminous flux of the light source (Φuse): 2500 Lm

Correlated color temperature: 4000K (neutral white)

Energy class of the light source: E

Rated voltage, frequency: AC 220-240 V, 50/60 Hz

Beam angle: 170°

Place of application: indoor

Rated current: 180 mA

Color rendering index (CRI): Ra > 80

Life: 30000 hours

On/off cycles: 20000

Useful luminous flux of the reference light source: in a sphere (360°)

Ingress protection: IP20

Warranty: 2 years

Operating temperature range: -20° +40°C

Dimmable: no

Mercury content: Does not contain

Height: 264 mm

Width: 264 mm

Depth: 29 mm

Outer box: 20 pcs.

Power Factor (PF): 0.5

Directional or non-directional light source: NDLS

Networked or non-networked light source: NMLS

Color tunable light source (CTLS): no

Displacement factor (cos φ1): -

Survival rate: 0.9

Chromaticity coordinates (x): 0.38

Chromaticity coordinates (y): 0.38

Color rendering index value R9: >0

Lumen maintenance rate: ≥96%

Flicker Index (Pst LM): -

Stroboscopic effect metric (SVM): -

Technology: LED

Net weight per unit: 1000g

CRI Min: Ra 80

CRI Max: Ra 89

Maximum power: 24 W

Luminaire luminous flux: 1830 Lm

Installation location: Ceiling, Flat surface, Wall

Housing color: white

Input interface: free wire ends

Electric shock protection class: II

Ultraviolet radiation: no

Replaceable control unit: from the manufacturer

Housing material: iron alloy

Replaceable light source: from the manufacturer

Packaging marking: Waste recycling, CE, Disposal

Light source or containing product: Containing product

Connected light source (cls): pcs

High brightness light source: No

Anti-glare shield: No

Energy consumption in on-mode of the light source (kWh/1000h): 24

Color consistency in MacAdam ellipses (SDCM): <6 (4000K)

Suitable for installation in normally flammable surfaces: yes
