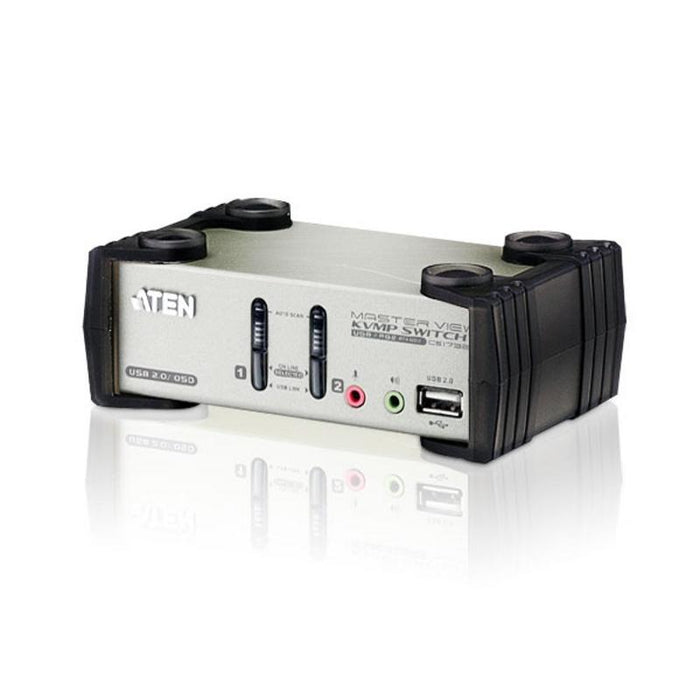

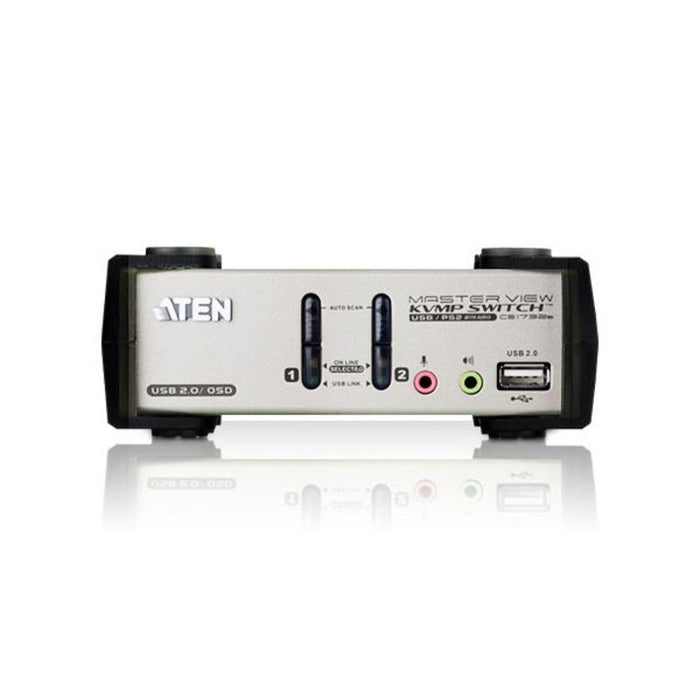

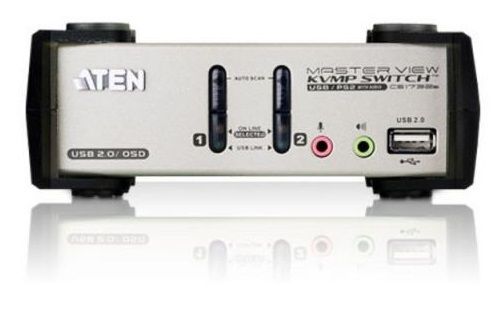

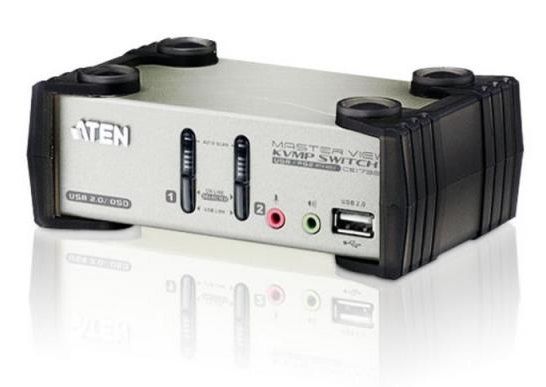

KVMP switch, ATEN CS1732B, 2-port

The CS1732B is a 2-port KVM switch with a 2-port USB 2.0 hub.

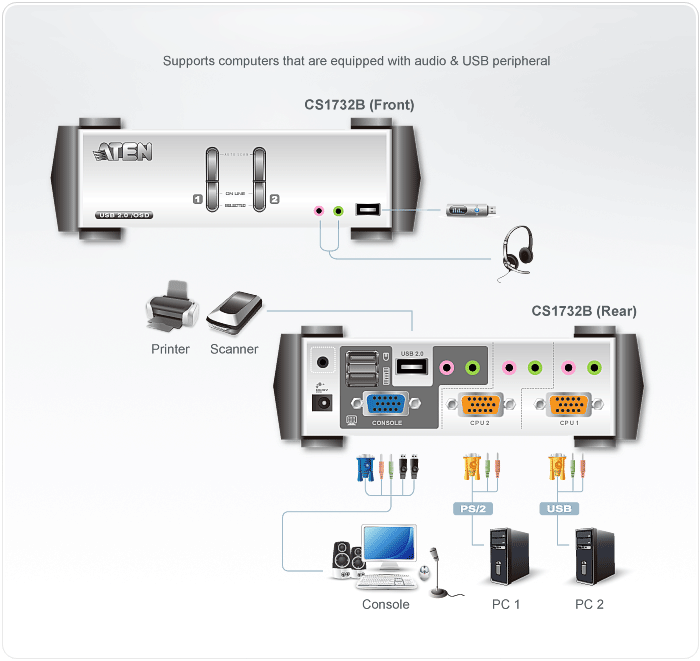

Controls up to 2 computers from one keyboard, mouse and monitor. Each computer can be USB
or PS/2 interface. Switching with case buttons, hotkeys, OSD menu, and mouse.
Allows sharing of USB peripherals between computers in the installation, supports sound.

2-port KVM switch with USB 2.0 support and 2.1 surround sound
One console controls 2 computers and 2 additional USB devices
2-port USB 2.0 built-in hub
USB 2.0 compatibility
Dual interface – supports computers with PS/2 or USB keyboard and mouse
Supports sound – full bass response support provides a rich experience for 2.1 surround sound systems
Console audio ports on the front panel for easy access – ideal for IP phones
Independent switching of KVM, USB and Audio focus
Excellent video quality; 2048 x 1536; DDC2B
Supports widescreen resolutions
Switching via front panel buttons, multilingual OSD (On Screen Display) menu, hotkeys and mouse
Multi-platform support – Windows, Mac and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Video DynaSync™ – stores EDID (Extended Display Identification Data) information on the console monitor to optimize resolution
Full keyboard emulation for seamless restart
Sun/Mac keyboard support and emulation*
Auto Scan mode for monitoring all computers
LED Display for easy status monitoring
Easy installation, no software required
Firmware update

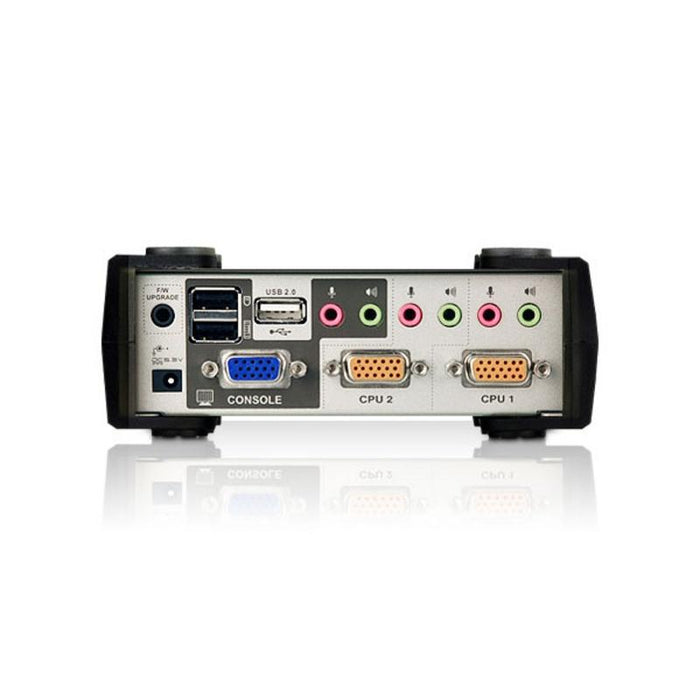

Console Ports: 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
KVM ports: 2 x SPHD-15 Female (Yellow) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
