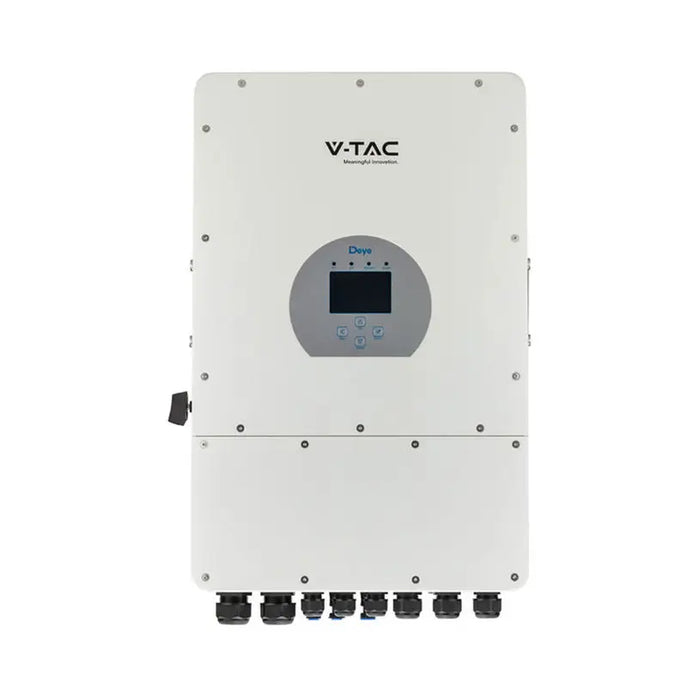

HYBRID SINGLE PHASE INVERTER 8KW V-TAC

Specifications

Amperage
• PV input current: 26+26A;
• Rated AC output current: 33.3/38.5 A
• Maximum AC output current: 36.7/42.3 A
Power
• Max. Input Power: 10400W;
• Rated output power: 8000W;
• Max. output power: 8800W;
Voltage
• Starting voltage: 125V;
• Nominal input voltage: 370 (125-500);
• DC voltage range at full load: 200-425V;
• MPPT range: 150-425V;
Frequency-50Hz/60Hz
Power Factor (PF)-0.8 leading 0.8 lagging

Possibilities:
• IP grade-IP65
• Operating environment- -40~60°C, >45°C derating

Battery data:

• Battery type - Lead-acid or lithium-ion battery
• Battery voltage range (V)- 40~60
• Max. Charging Current (A)- 190A
• Max. Discharge Current (A)- 190A
• External temperature sensor - Yes
• Charging curve-3 stages / leveling
• Lithium-ion battery charging strategy - Self-adapting to BMS
