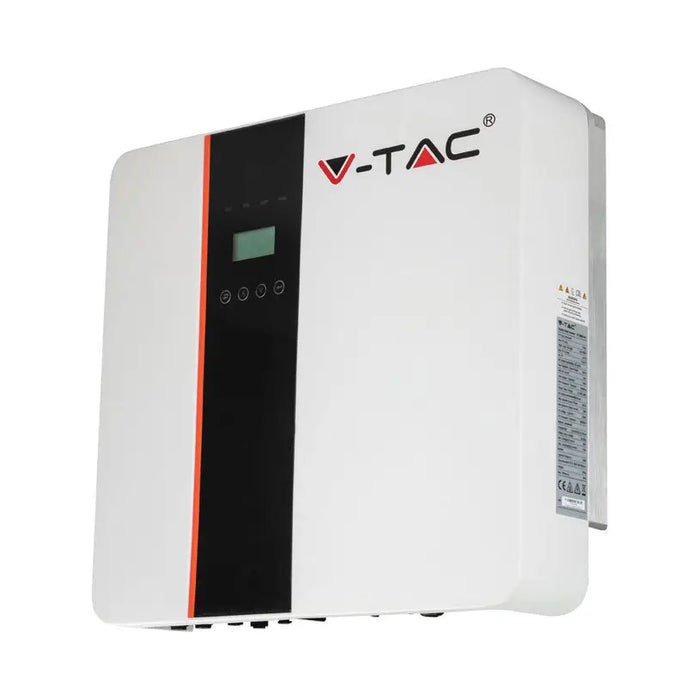

HYBRID SINGLE PHASE INVERTER 5KW V-TAC

Specifications

INPUT (PV):
-Max. PV input power - 7kW
-Max. PV input voltage-550V
-MPP voltage range-125V~500V
-Max. PV input current-14A
-Number of MPP-2 tracking devices
OUTPUT (AC):
-Max. Output current-21.7A
-Rated power-5kVA
-Nominal voltage-230 V, L + N + PE
-Operating voltage range-230 V, L + N + PE
-Frequency-176V~270V-50Hz/60Hz
POWER OUTPUT (EPS):
-Rated power-5kVA
-Nominal voltage-230Vac
-Nominal current-21.7A
-Rated frequency-50Hz/60Hz
-Auto-switching time-<20ms
BATTERY:
-Battery voltage range-40V~58V
-Max. Charging Voltage-58V
-Charge/discharge current–95A / 104.2A
-Battery type- Lithium / lead-acid
-Communication- RS485, CAN
EFFICIENCY:
-Max. DC efficiency -97.60%
-MPPT efficiency -99.90%
-Battery charge/discharge efficiency -95.00%

GENERAL DATA:
Operating temperature- -25°C~ +60°C
Cooling method - Natural cooling
Degree of protection - IP65
Noise emission-<35dB
Max. Working altitude-2000m
Relative humidity-0~95% (non-condensing)
Standby power consumption - <3W
Communication:- Standard: RS485 / CAN / DRM Optional: WIFI / 4G
Supports automatic battery switching
Diesel generator input source maintenance
Possibility of parallel, intelligent BMS control
