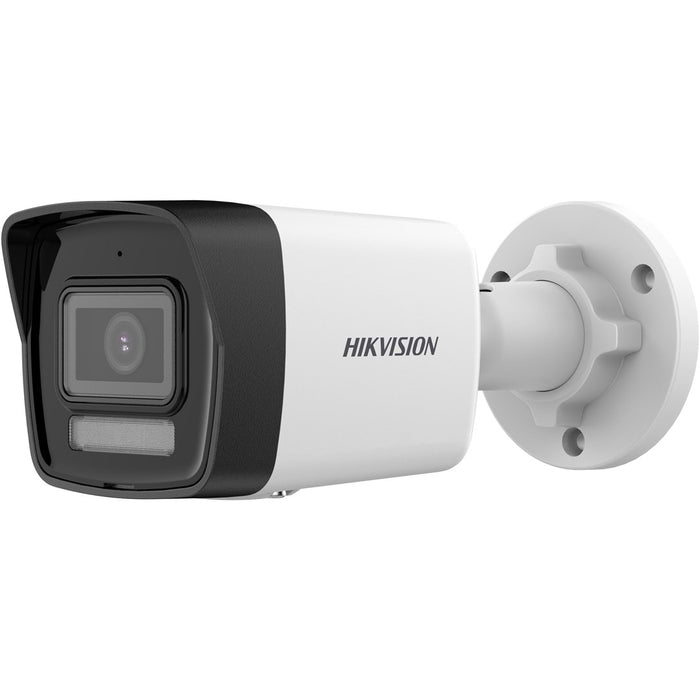

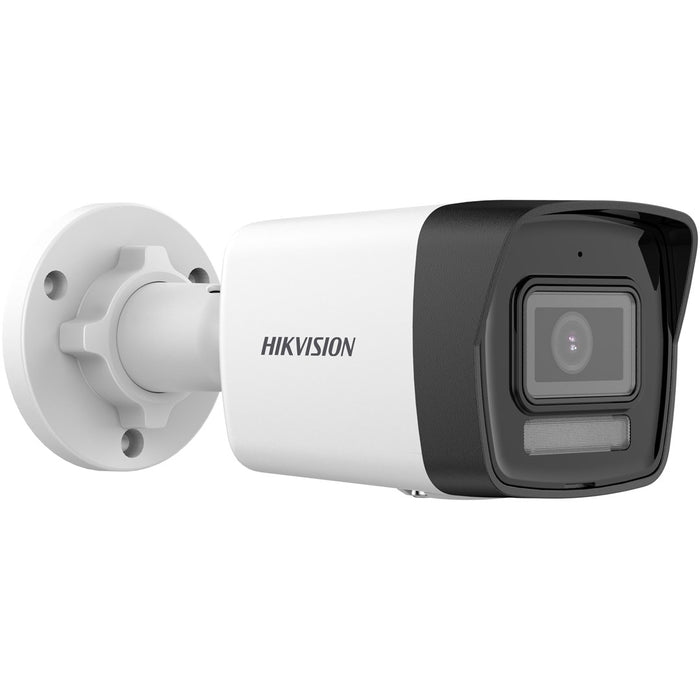

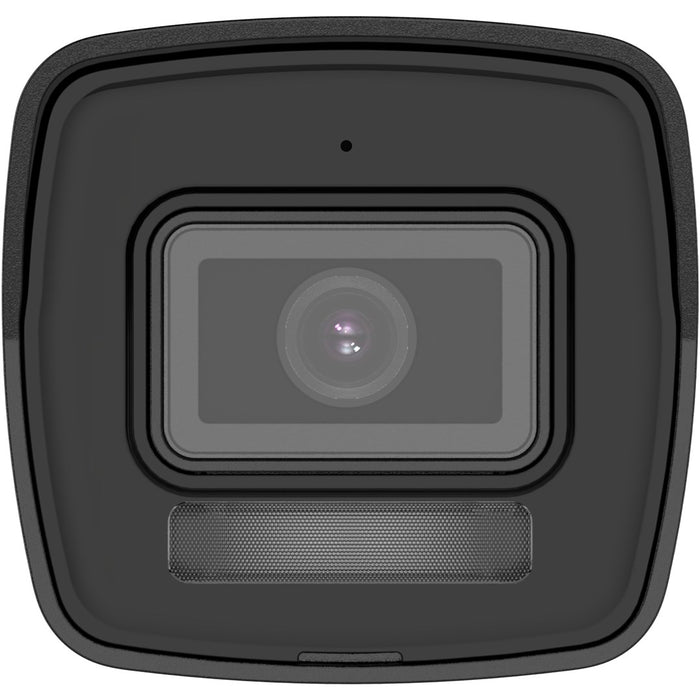

HIKVISION DS-2CD1061G2-LIU 2.8mm IP CAMERA

HIKVISION DS-2CD1061G2-LIU 2.8mm IP CAMERA

HIKVISION
€91,50 - €91,50
€91,50
€91,50 - €91,50
€91,50
SKU DGT0285100
Ships within 8 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Design

Housing material Plastic, Metal
Product colour White
International Protection (IP) rating IP67
Form factor Bullet
Protection features Waterproof
Mounting type Ceiling/wall

Power

Power consumption (max.) 5 W
Power source type DC, PoE
Output DC current 0.41 A
Output DC voltage 12
Power consumption (Power over Ethernet (PoE)) 6.5 W

Security

Audit log Yes
Video motion detection Yes
Password reset by email Yes
Digest authentication Yes
Heartbeat Yes
Mirror Yes
Password protection Yes
Personal data protection Yes
Digital watermark Yes

Operating conditions

Storage humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -30 - 60 °C
Storage temperature (T-T) -30 - 60 °C

Control functions

Management via web-based interface Yes

Weight and dimensions

Weight 285 g
Height 69.1 mm
Width 66 mm
Length 170.8 mm

Network

Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Wi-Fi No
Bluetooth No
Client compatibility iVMS-4200, Hik-Connect
Supported network protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Number of users 32 user(s)
User access level Administrator, Operator, User
Number of simultaneous live view channels 6 channels
Real-time (Live view) Yes

Performance

Type IP surveillance camera
Built-in lighting Yes
Wide dynamic range (WDR) Yes
Connection technology Wired
Supported mounting Indoor and outdoor
Day/night mode Yes
Number of languages 1
Infrared (IR) cut filter Yes
Dynamic range 120 dB
Supported languages Polish

Packaging data

Packaging weight 481 g
Packaging height 118 mm
Packaging depth 121 mm
Packaging width 216 mm

Package contents

Number of cameras 1

Audio

Built-in microphone Yes
Supported audio formats G.722.1, AAC-LC, G.726, PCM, MP2L2, G.711
Signal-to-noise ratio (SNR) 52 dB
Sampling rates 8 - 16 kHz
Bitrate range 16 - 160 Kbit/s

Storage

Built-in hard disk No

Ports and interfaces

Ethernet LAN ports (RJ-45) 1

Camera

Number of privacy masking zones 4
Tilt angle range 0 - 90°
Rotation angle 360°
Minimum illumination 0 lx
Pan range 0 - 360°
Camera shutter speed 1 - 1/100000 s
Lens vertical field of view 55°
Lens diagonal field of view 127°
Lens horizontal field of view 105°

Image sensor

Progressive scan Yes
Optical sensor size 25.4 / 2.4 mm (1 / 2.4")
Sensor type CMOS
Number of sensors 1

Video

Backlight compensation (BLC) Yes
Supported graphics resolutions 3200 x 1800, 2688 x 1520, 1280 x 720 (HD 720), 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080)
Bitrate 32 Kbps - 16 Mbps
Maximum resolution 3200 x 1800 pixels
Highlight compensation (HLC) Yes
Total megapixels 6 MP
Video compression formats H.264+, H.265+, H.265, M-JPEG, H.264
Video streaming Yes
Bitrate control Constant bitrate (CBR)/Variable bitrate (VBR)
Region of interest (ROI) encoding Yes
Image quality adjustment White balance, Brightness, Sharpness, Contrast, Saturation
Privacy masking Yes

Night vision

Night vision distance 30 m
Night vision Yes
Infrared wavelength 850 nm

Strip system

Fixed focus Yes
Keep distance 30 m
Detection distance 76 m
Maximum aperture number 1.6
Identification distance 7 m
Recognition distance 15 m
Fixed focal length 2.8 mm
Number of lenses 1

Durability

Compliance certificates REACH, Low Voltage Directive (LVD), CB, RoHS, CE, WEEE, RCM
Environmental compliance Yes
