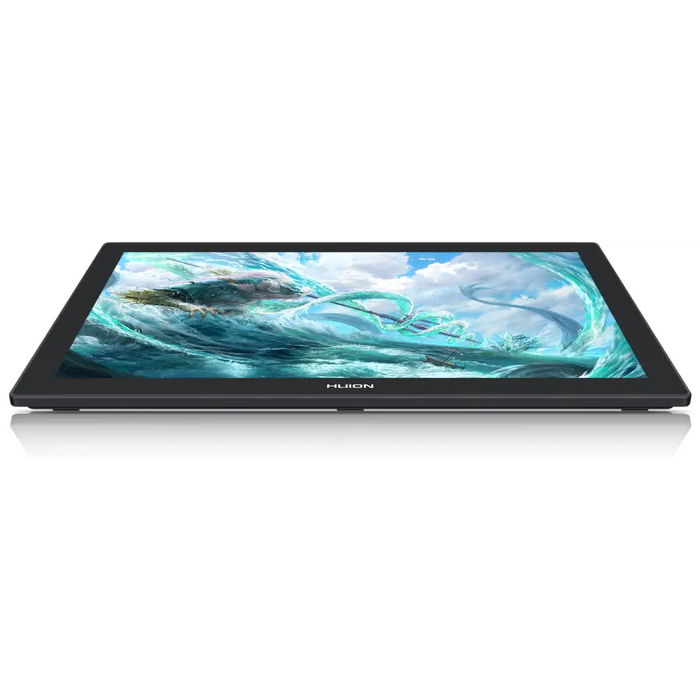

Kamvas Pro 24 (4K)
Simply powerful

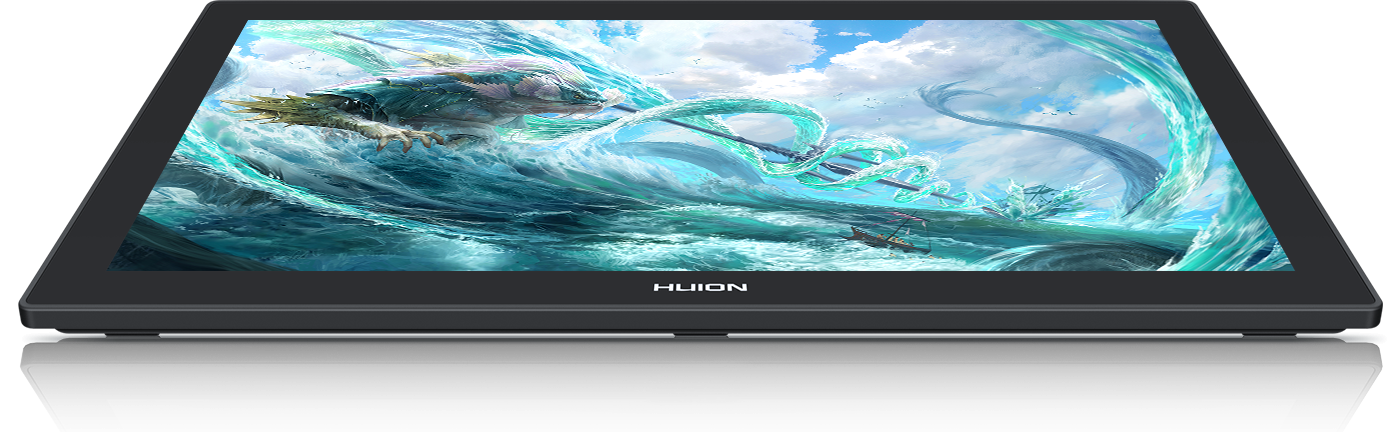

4K screen to expand your viewing experience.
The Kamvas Pro 24(4K) screen measures up to 23.8 inches, allowing users to "split" the screen in two, as when using two monitors, thus providing a more efficient workspace. In addition, the 4K UHD resolution improves the overall display quality, allowing the picture to be displayed more naturally and clearly.
True colors.
With a color depth of up to 10 bits, Kamvas Pro 24(4K) is capable of displaying 1.07 billion true colors. The 140% sRGB wide color gamut of this QLED display also guarantees users an unprecedented viewing experience.

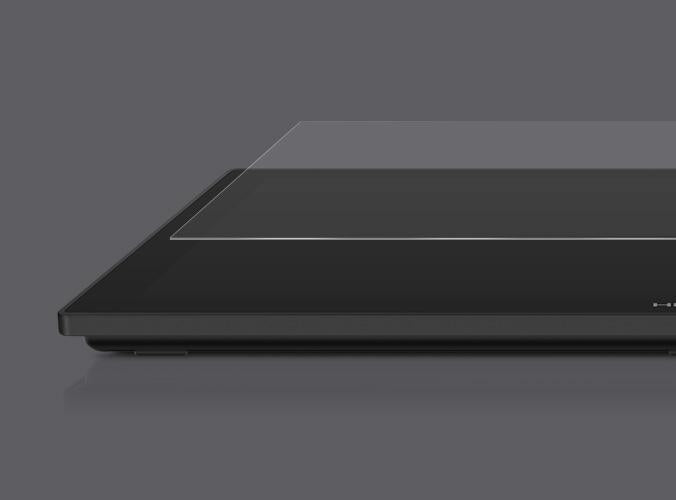

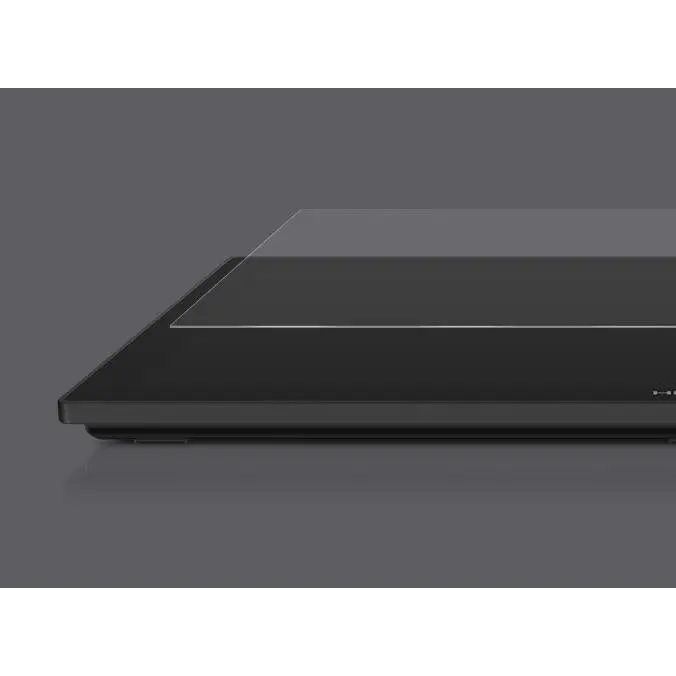

Paper-like texture for natural and accurate rendering.
Thanks to the full lamination technology, there is no air gap between the LCD screen and the glass, which effectively reduces parallax and increases transmittance. In addition, the anti-glare glass not only alleviates reflections, but also provides a more natural pen-on-paper drawing experience.
High display quality with HDR technology.
Kamvas Pro 24(4K) is equipped with HDR technology, which can automatically adjust the brightness, color, and contrast of the screen, providing a more dynamic way to improve the overall image quality.

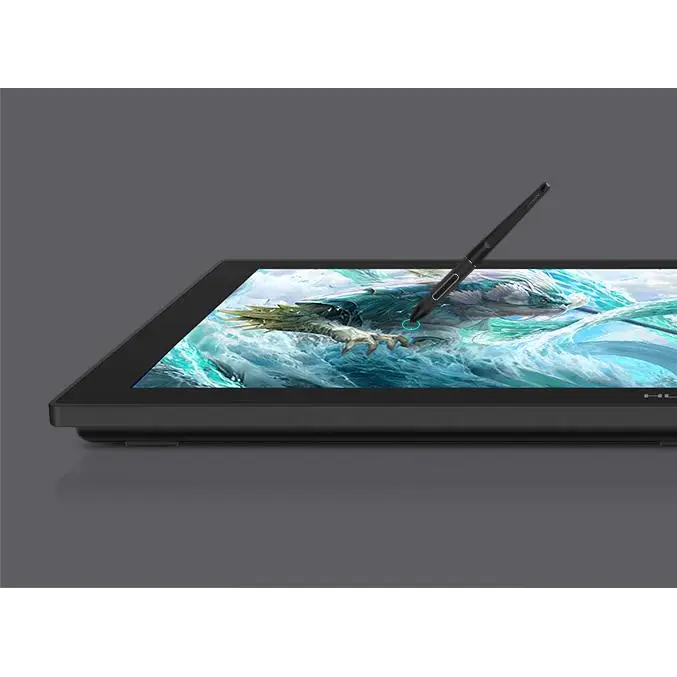

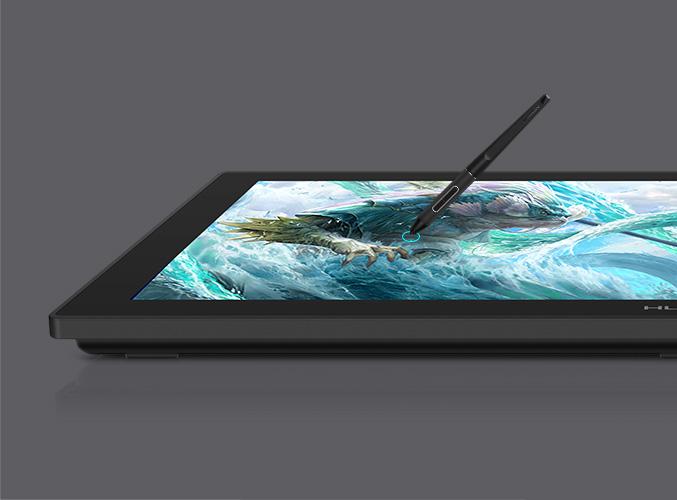

Natural and stable drawing with pen on paper.

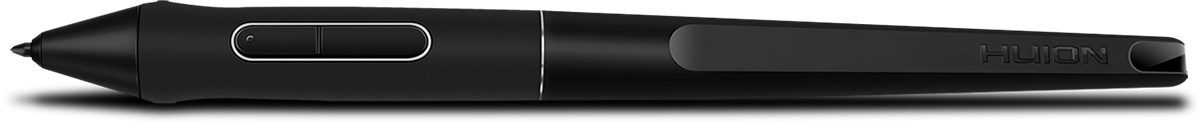

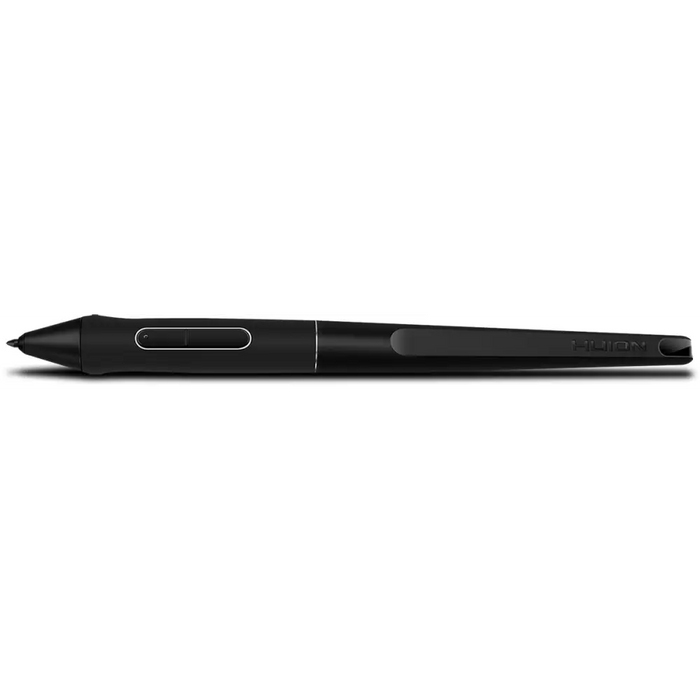

The PW517 battery-free digital pen, which is developed based on PenTech3.0, allows for more precise and flexible strokes. Two programmable buttons on the digital pen are designed to facilitate operation. This digital pen can also be used to adjust the parameters of the on-screen menu, such as brightness, color temperature, etc.
Brilliant ideas can be presented immediately.
With 8192 levels of pressure sensitivity, lines of varying width and density can be produced naturally. In addition, ±60° tilt support and 300 PPS speed allow users to capture any input instantly and organically.
.
Technical specifications:
Model GT-2401
Panel size: 23.8inch
Resolution: 3840 x 2160（16:9）UHD
PPI 185PPI
LCD Type IPS
Working area: 527.04 x 296.46mm
Contrast: (Typical) 1200：1
Brightness: 220cd/m2
Response time: 10ms
Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
Gamma: 98%NTSC/102%Adobe RGB/140%sRGB(Quantum dots)
Colors: 16.7M(8bit)
Pen Technology: Battery-free Electromagnetic Resonance
Pen resolution: 5080LPI
Pressure sensitivity: 8192 levels
Accuracy: ±0.5mm（Center）±3mm（Corner）
Sensitive height: 10mm
Speed: 300PPS
Tilt: ±60°
Pen model: PW517
Input voltage: 100-240VAC,50/60Hz
Output voltage: 19V 3A
Video interfaces: HDMI，DP，USB-C，DC，USB-A 2.0 x 2，3.5mm headphone jack
Dimensions: 589.2 x 364 x 22.7 mm (without stand)
Weight: 6.3KG
Color: black
Built-in stand with 20° adjustment
Supported OS: Windows 7 or later, macOS 10.12 or later, Android (USB3.1 DP1.2 or later)
AG Glass: YES, no glare
Full lamination: YES
Operating temperature and humidity: 0 -+40°C、20-80%
Storage temperature and humidity: —20°C~60°C、 10-90%
Package contents:
Tablet, Pen, Keyboard KD100, HDMI cable, USB-C to USB-C cable, USB-A to USB-C cable; power adapter; power cord;

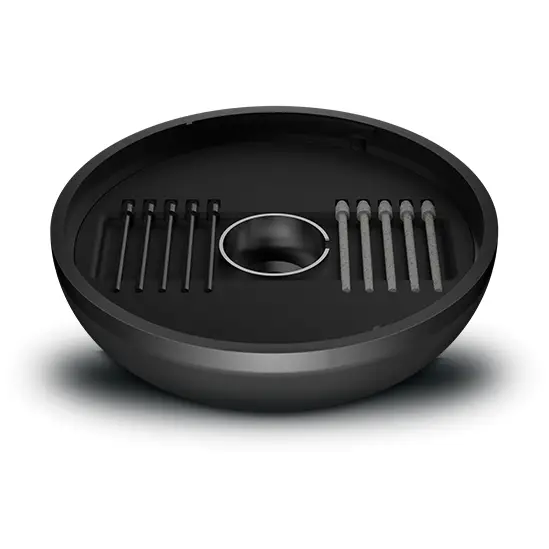

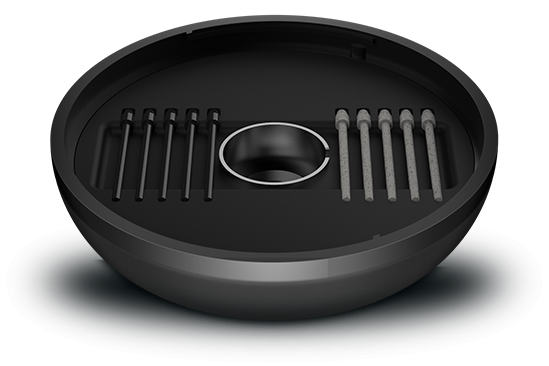

PH05A pen stand, pen nibs x 10, nib change clip, cleaning cloth
