Fnirsi P6100 oscilloscope probe

Fnirsi P6100 oscilloscope probe

by Fnirsi
€10,10 - €10,10
€10,10
€10,10 - €10,10
€10,10
SKU DGT0425996
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops.

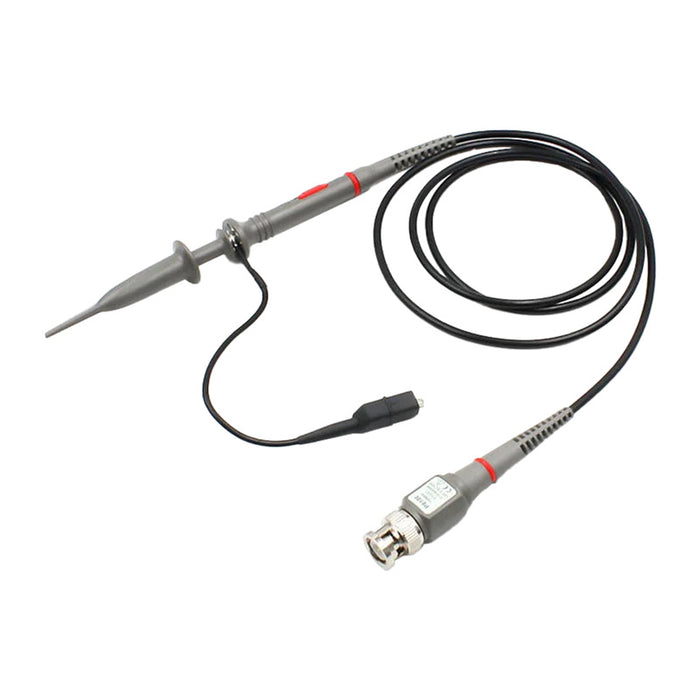

oscilloscope probe on a gray background

Safe operation with higher voltages

In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.

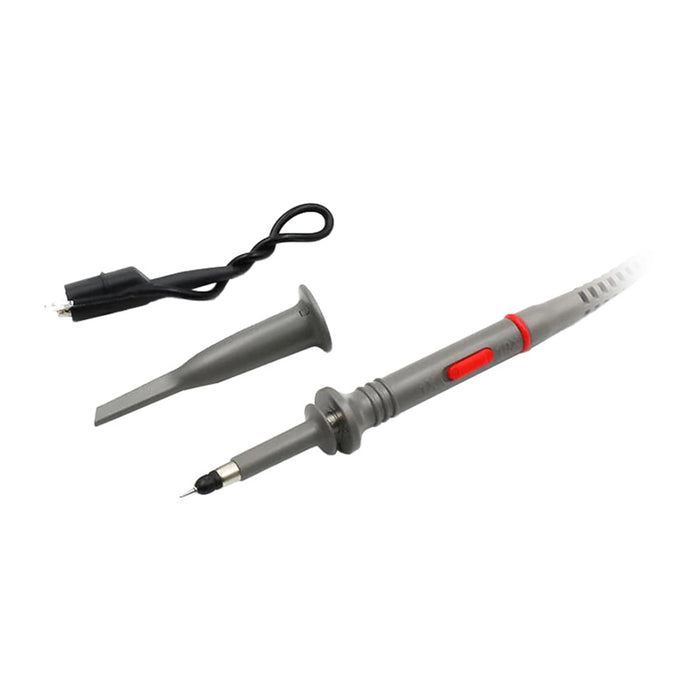

oscilloscope probe, tips, and cable on a gray background

Convenient cable length

The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.

oscilloscope probe tip on a gray background

Included:

  • Fnirsi P6100 oscilloscope probe



Manufacturer Fnirsi
Model P6100
Frequency response DC–6 MHz (1X mode), DC–100 MHz (10X mode)
Attenuation ratio 1:10
Input capacitance: 1X: 85 pF–120 pF, 10X: 18.5 pF–22.5 pF
Compensation range 10 pF–30 pF
Rise time < 3.5 ns
Operating voltage 1X: < 200 V DC + AC (peak), 10X: < 600 V DC + AC
Cable length 120 cm
Operating temperature range -10°C to +50°C
Storage temperature range -20°C to +75°C
Humidity ≤ 5% (relative humidity)
Weight 80 g
Color gray-black
