Description
STATIONARY CHARGING STATION WITH RICH FUNCTIONALITY

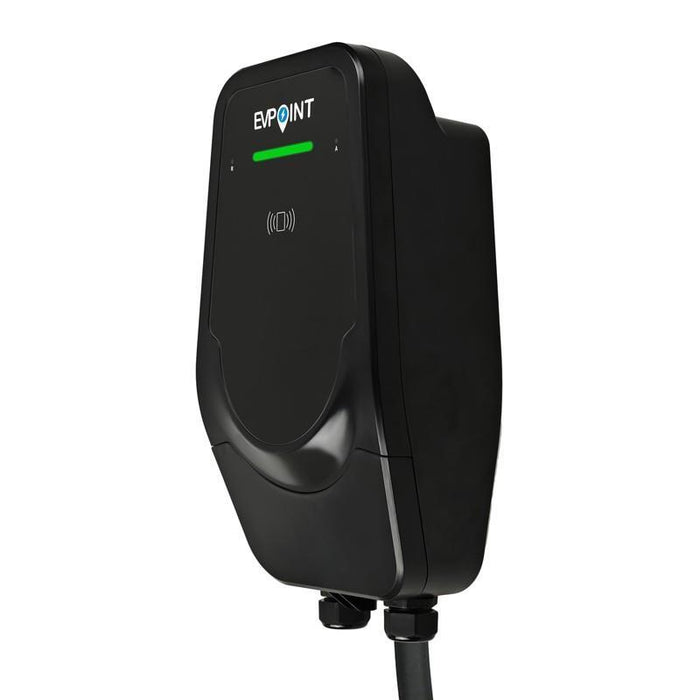

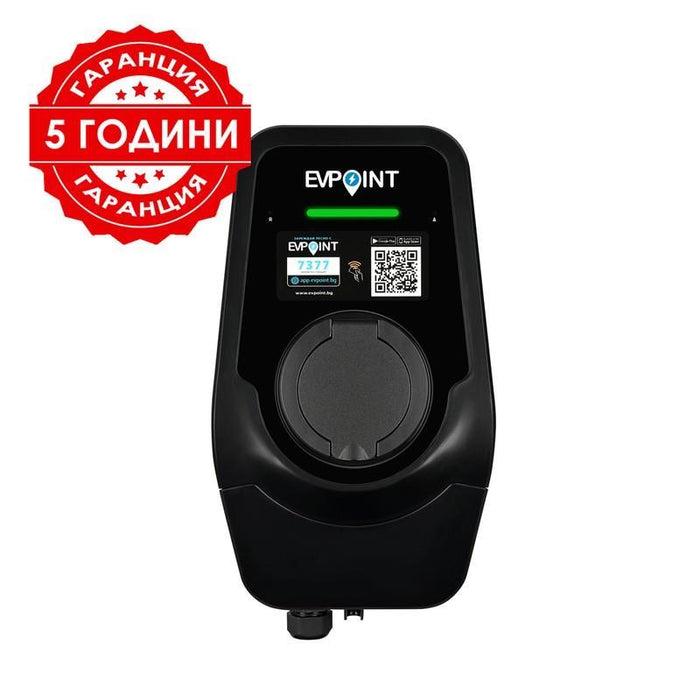

EVPoint EV11 is a next-generation charging station that enables fast and safe AC charging with power up to 11 kW. The device is a perfect solution for charging at home and in public settings by connecting a Type 2 cable for European vehicles or a Type 1 adapter for American ones. Its successful use specifically in public settings makes this station, manufactured in Bulgaria, one of the most sought-after chargers for hotels, office buildings, car parks, shopping centres and car showrooms. This is not a typical charging station. Adding electrical energy to the vehicle's battery is the main task of every station. However, with the development of software, more and more convenient extras are being added to chargers, which simplifies daily charging and proper monitoring of all processes. EV11 is exactly such a device – modern.
Thanks to its internet connectivity options (3G, 4G, Wi-Fi and Ethernet), the station allows remote control and real-time monitoring from the comfort of the EVPoint mobile app. The internet connection also allows remote receipt of updates that improve the device's operation, as well as online checks in case of a problem or fault. The station itself has its own web interface for configuration, monitoring and diagnostics. Through the supported OCPP 1.6 protocol, the station can be connected to any platform that works with the same protocol. This is especially important when the station is used for public access. Operator platforms, such as the one at evpoint.bg, provide access to and management of your stations, as well as billing customers for charging fees.
Smart Charging Configuration
The internet connectivity of the stationary station allows smart configuration of your charging sessions, so that processes can run on a set schedule during hours when electricity is at a lower price / tariff. From the comfort of your smartphone and thanks to the EVPoint mobile app, you can set the minimum and maximum amount of electricity you want to charge, the time window in which the process should run, and save a daily schedule so that you do not have to re-enter the desired parameters all the time. Through the mobile app, the station will carry out your set requirements, which guarantees maximum efficiency of every single charge with the EV11 station.
Choosing the Charging Speed
The charging rate can also be controlled. The three-phase charging station can charge at an amperage you specify, up to 16 A – 11 kW. Given the widely used single-phase onboard chargers in electric vehicles on the market at present, EV22 stands out as one of the best-optimised chargers in terms of functionality and charging capabilities. When installed at a public location where other smart stations are also installed, EVPoint EV22 can monitor instantaneous consumption and regulate the charging power of all devices so that the grid is not overloaded, while at the same time the process is not interrupted. This function is known as Dynamic Load Management. Electric vehicle 3.7 kW 7.4 kW 11 kW 22 kW HYUNDAI IONIQ ELECTRIC (28 kWh) 7.5 hours 4 hours 4 hours 4 hours HYUNDAI IONIQ 5 (72.6 kWh) 20 hours 10 hours 6.5 hours 6.5 hours PEUGEOT E-208 (47.5 kWh) 13 hours 6.5 hours 4.5 hours 4.5 hours RENAULT ZOE (41 kWh) 11 hours 5.5 hours 4 hours 1.5 hours BMW I3 (37.9 kWh) 12 hours 6 hours 4 hours 4 hours SKODA ENYAQ IV (58 kWh) 18.5 hours 9 hours 6 hours 6 hours Mercedes EQE 350+ (90.6 kWh) 29 hours 14.5 hours 9.5 hours 5 hours BMW iX M60 (105.2 kWh) 33.5 hours 16.5 hours 11 hours 11 hours Manufacturer: EVPoint Model: EV11 PLUS MY24 Maximum power: 11 kW (three-phase), 16 amperes Stand-by power consumption: < 8 VA, 5.2 W Nominal voltage: 230 V AC (for single-phase connection); 400 V AC (for three-phase connection) Connection to the electric vehicle: Type 2 socket IEC 62196-2 (optional with cable) Number of phases: three-phase, 3 x 16 A (11 kW) / The charging station can be connected both three-phase and single-phase. With a three-phase connection, it allows charging up to 11 kW (16 A per phase), and with a single-phase connection up to 3.7 kW (16 A on the first phase L1). Communication protocol: OCPP 1.6J Communication modules: WLAN: 802.11 b/g/n/e/i (2.4GHz); Bluetooth: BT4.2 (used only for station configuration); Ethernet (LAN) via RJ45 port (10/ 100 Mbps); GSM via SIM card (3G, LTE, CAT M1, CAT NB-1 upon request) Authorization method: via the EVPoint mobile application, RFID card, Plug & Charge Housing material: Plastic Protection degree: IP54 environmental protection; IK08 Residual current protection: built-in class B, RCD DC < 6 mA and AC < 30 mA; ground wire check; +- 207v - 253v check Electricity meter: Built-in electricity meter Installation: On a wall or on a stand Operating temperature: -25 ° C + 55 ° C Color: matte black Dimensions: 363 (H) x 200 (W) x 129 (D) mm Warranty: 60 months: 24 months (standard) + 36 months (* extended warranty) Weight: 3.6 kg. Origin: Bulgaria
