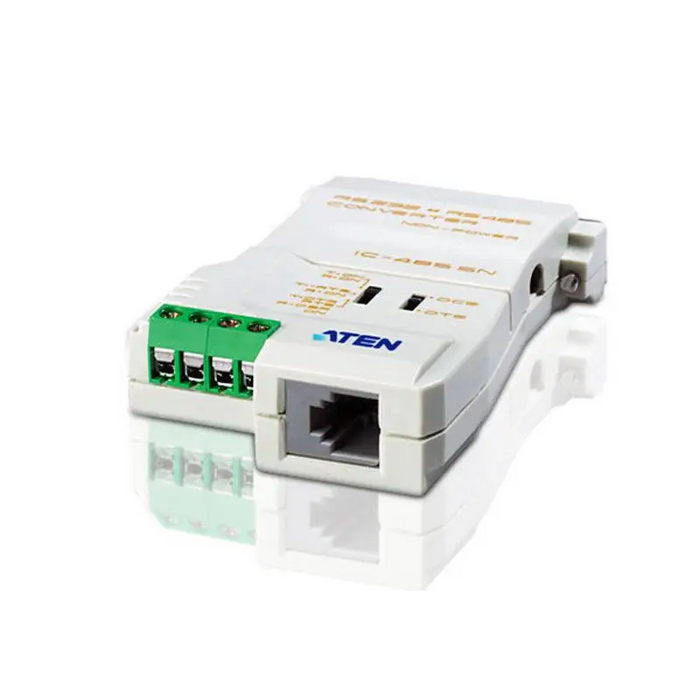

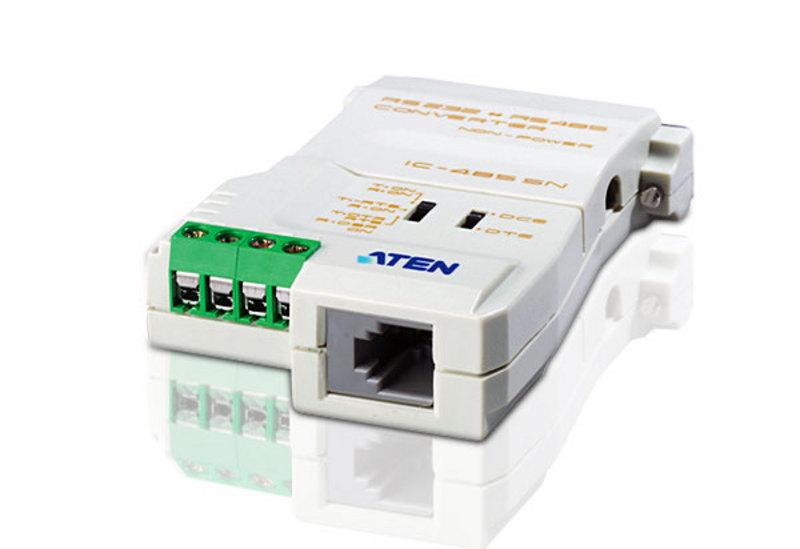

Converter ATEN IC485SNS-232 - RS-485

Converter ATEN IC485SNS-232 - RS-485

by Aten
€48,90 - €48,90
€48,90
€48,90 - €48,90
€48,90
SKU DGT0093250
Ships within 4 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

The IC485S is a bi-directional converter for converting RS-232 signals to RS-422/RS-485 and
back over long distances, up to 1200 m (4000 ft.).
Supports connection with up to 32 hubs and offers monitoring of data exchanged between devices.
No need for external power supply

Connectors: 1 DB-25 Female (RS-232) RS-485 / RS-422 Four Terminal Block 1x RJ-11 Female
Keys: DCE, DTE, TxON, RxON, TxRTS, RxON, TxDTR/RTS, RxDSR/ON
Consumption: DC 9V, 0.82 W, 2 BTU
Signal range: 1200m (max.)
Transfer speed: Up to 100 Kbps up to 1200 m
