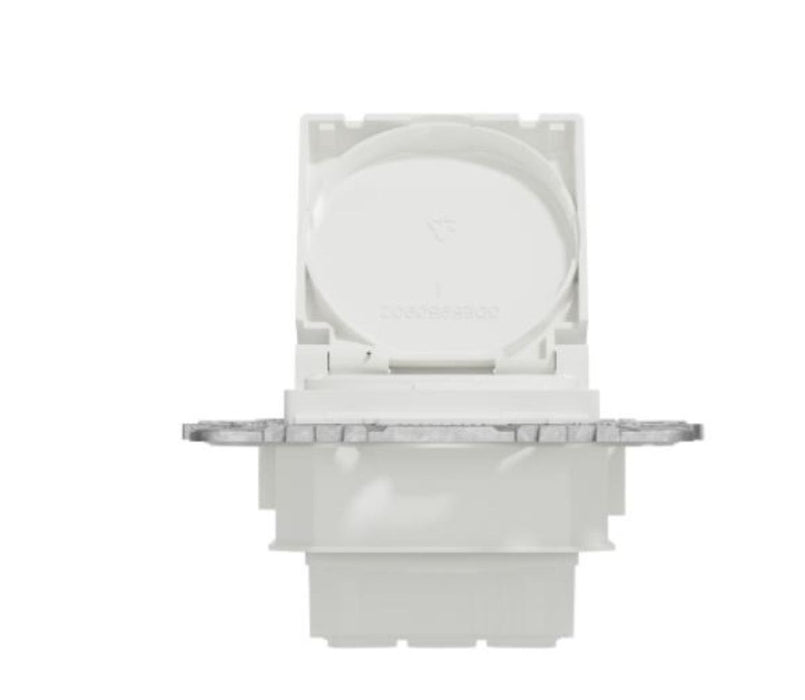

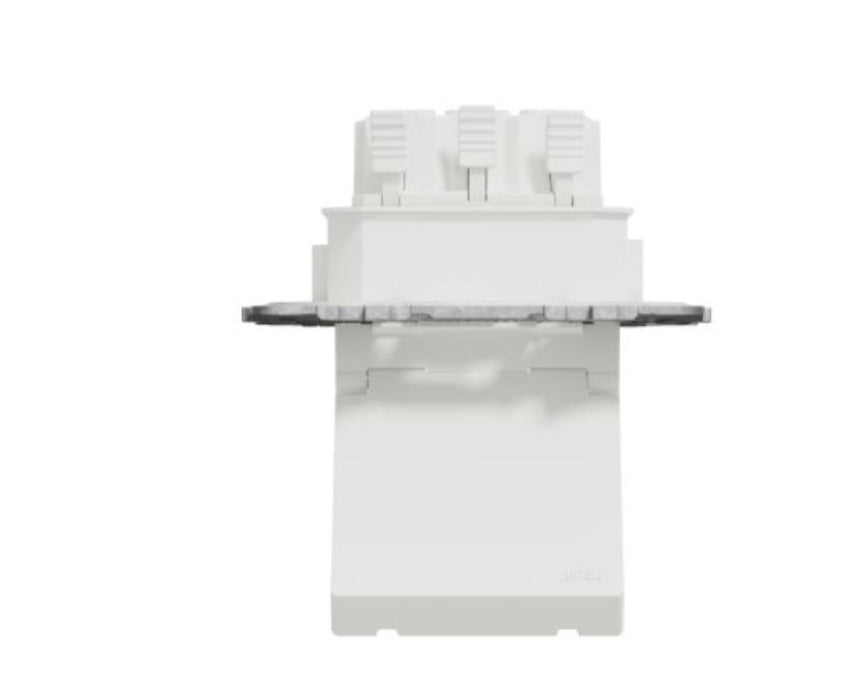

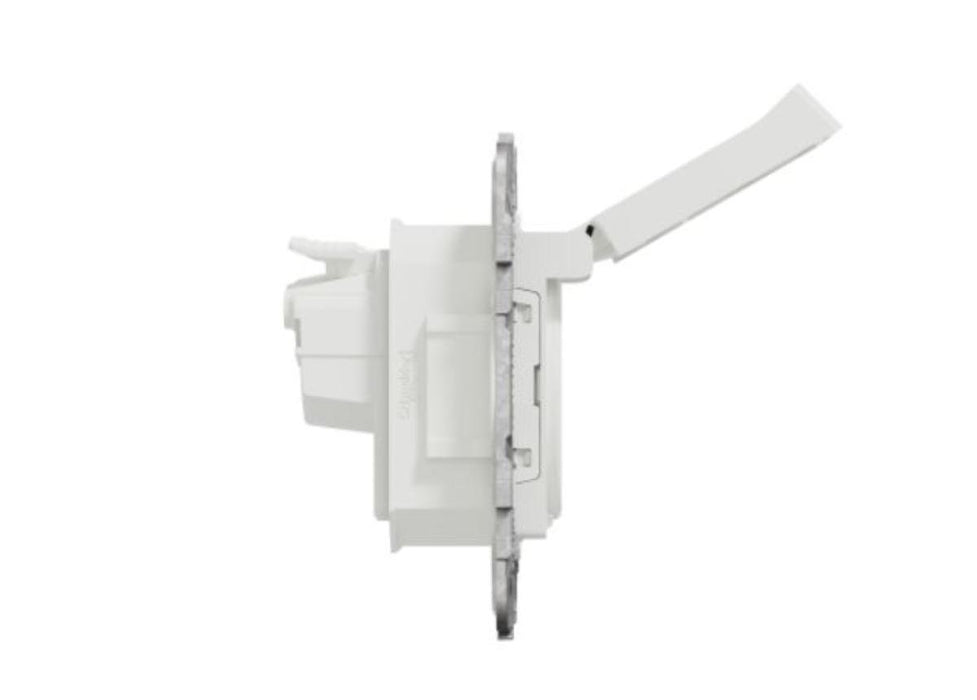

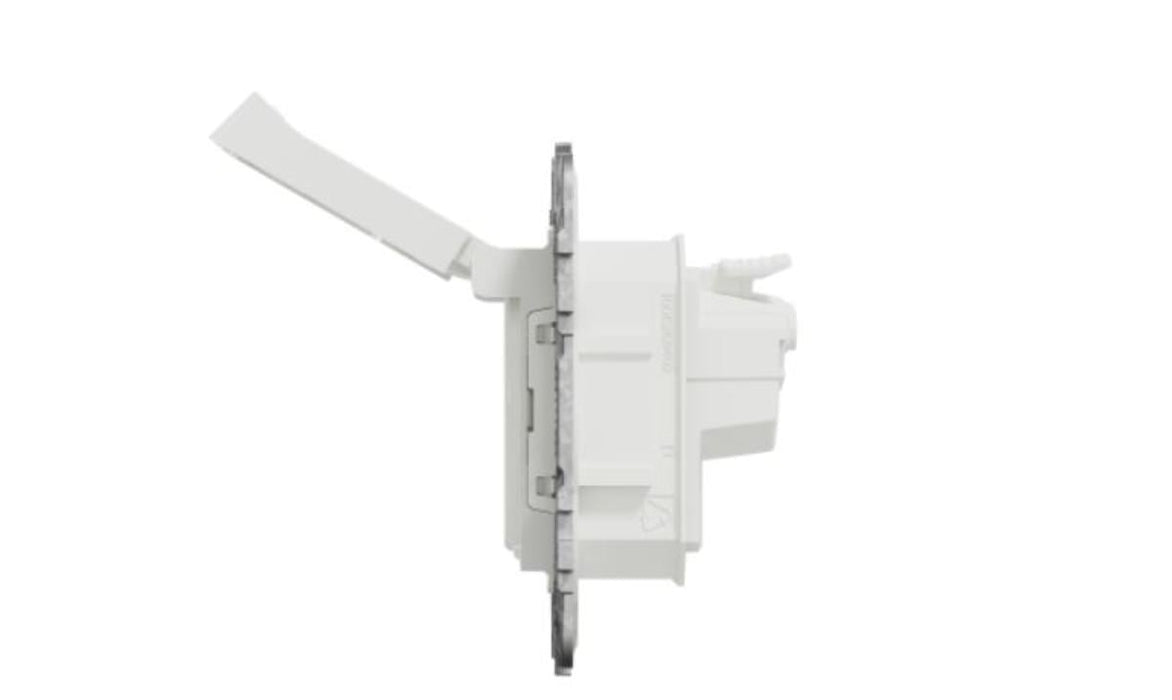

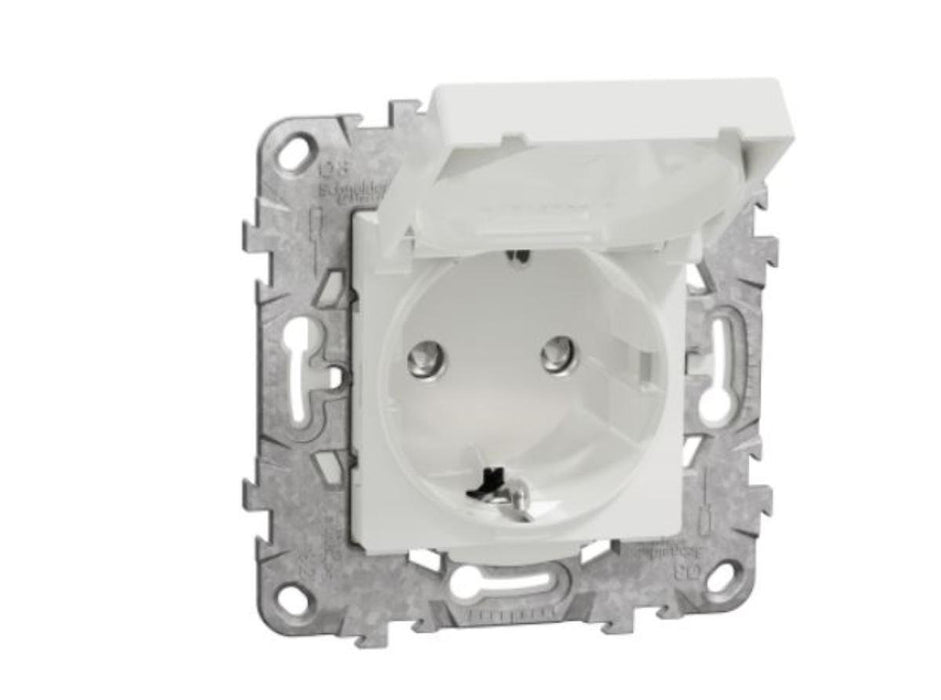

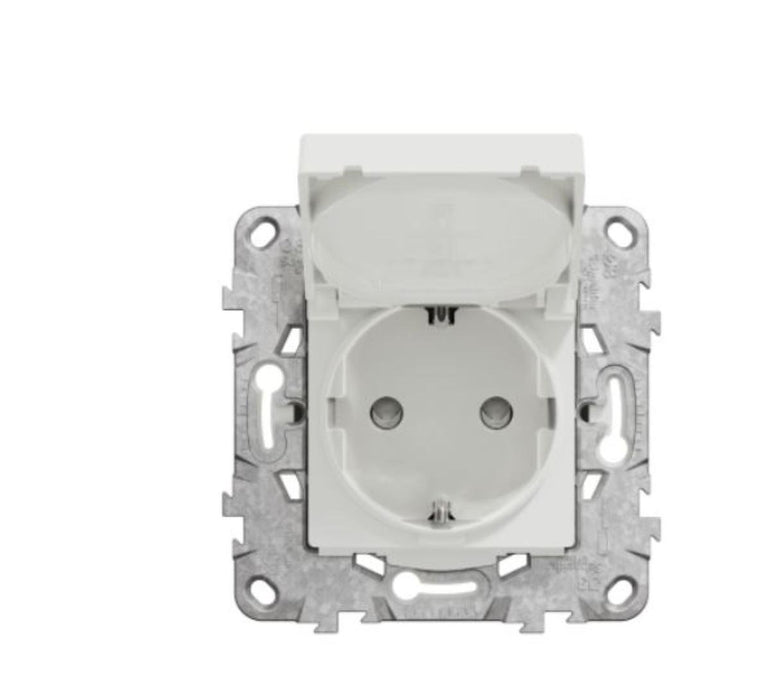

CONTACT SHUKO UNICA IP44 WHITE

Schneider Electric New Unica NU508218 socket outlet is white. This device complies with the German standard. Its suitable mounting box can be recessed into the wall surface with a built-in type. With the achieved level IP44, the device has better performance against solid particles and liquids. The new Unica includes a set of new designs, colours and materials. Users benefit from a beautiful design that matches their style and innovative products. The new Unica is designed with intelligent features to be flexible, easy to understand and quick to install, providing solutions for all customer requirements.

Product range: New Unica
Product or component type: socket outlet
Device application: power supply
Device presentation: mechanism with mounting frame
Colour shade: white (RAL 9003)
Outlet pole configuration: 2P + E
Outlet standard: Schuko
Rated current: 16 A
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Fixing mode: Screws

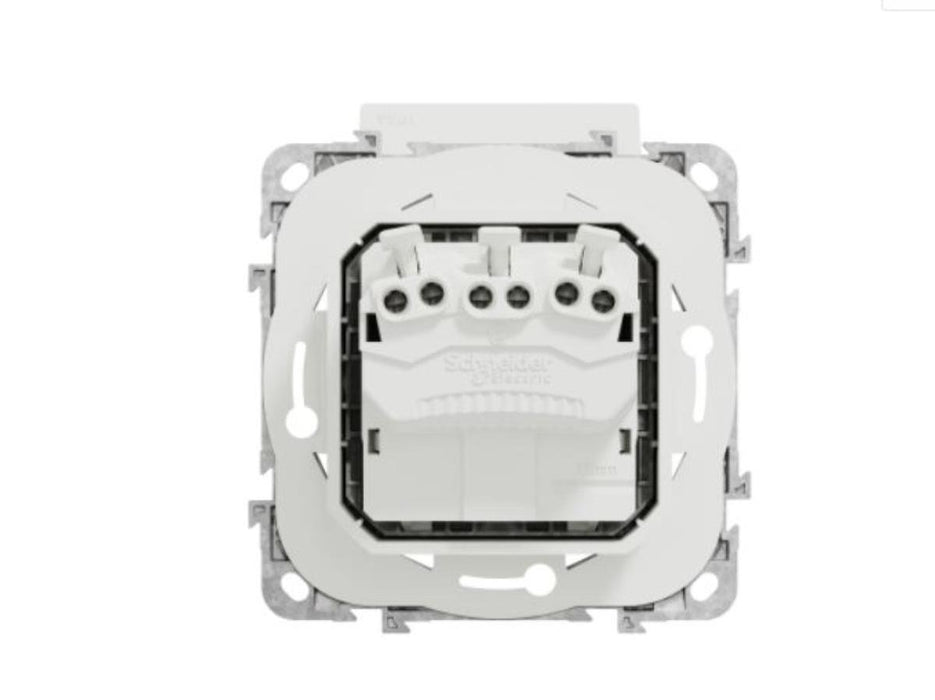

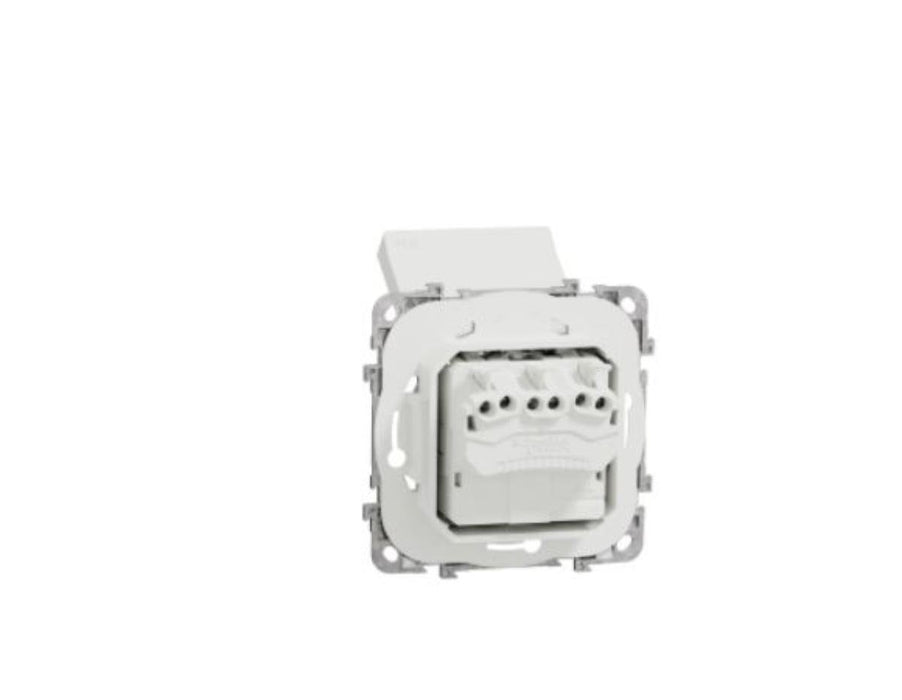

Connections – terminals: Screw terminals
Cable cross-section:
0…2.5 mm² cable(s), 2 - cable stiffness: flexible
0…2.5 mm² cable(s), 2 - cable stiffness: rigid
Minimum load capacity:
100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical endurance:
10000 cycles, cos phi = 0.8
Insulation resistance:
> 5 MOhm at 500 V
Dielectric strength:
2000 V
Material:
PC: mechanism cover
PC (polycarbonate) GF10 FR: housing

Standards:
IEC 60884-1
UNE 20315-1-1
UNE 20315-1-2
DIN VDE 0620-1

Product certificates:
AENOR
EAC

Mounting depth:
30.5 mm
Depth:
40 mm
Width:
74.5 mm
Height:
74.5 mm
Net weight
0.099 kg
Surface treatment
Untreated

Chemical agent resistance:
Resistant to alcohol (70%)
Resistant to alcohol (96%)
Resistant to A-lactic acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soap water
Resistant to crystal cleaning agent
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
Environment
ambient air temperature for operation
-5…35 °C
ambient air temperature for storage
-5…50 °C
IK degree of protection: IK04
IP degree of protection: IP44

Environmental characteristic:
Acetone
Bleach
UV resistant
Petrol
Oil
Alcohol
Window cleaner
Liquid soap
