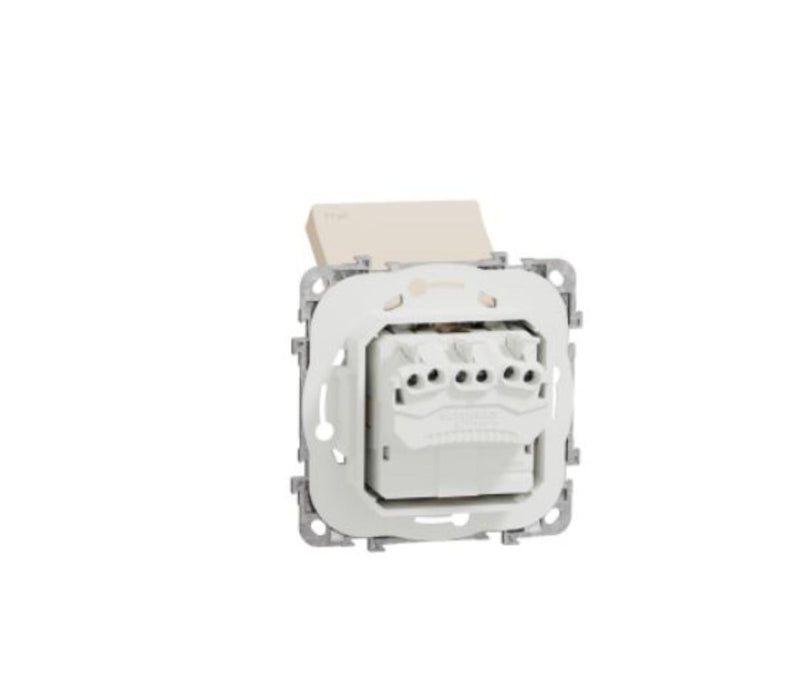

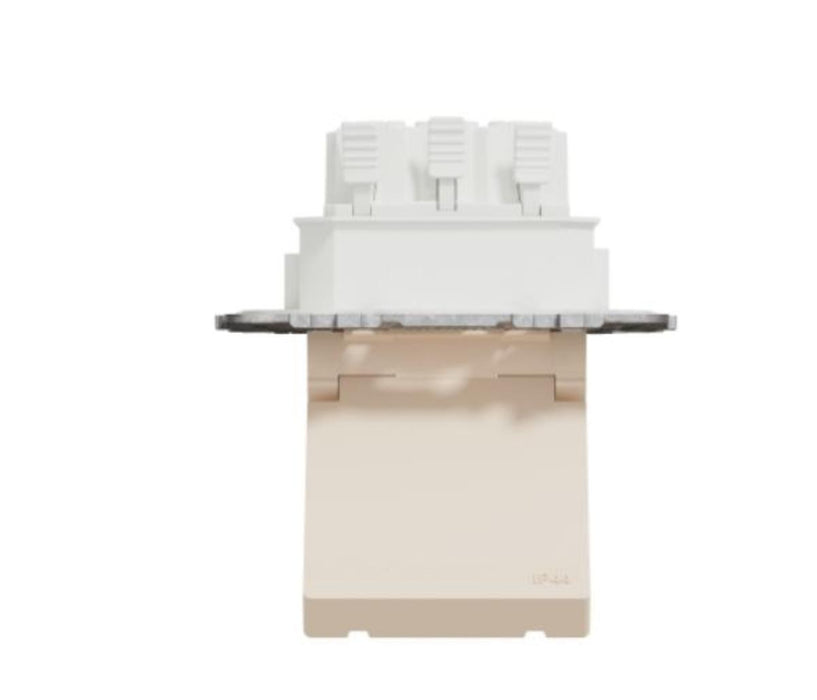

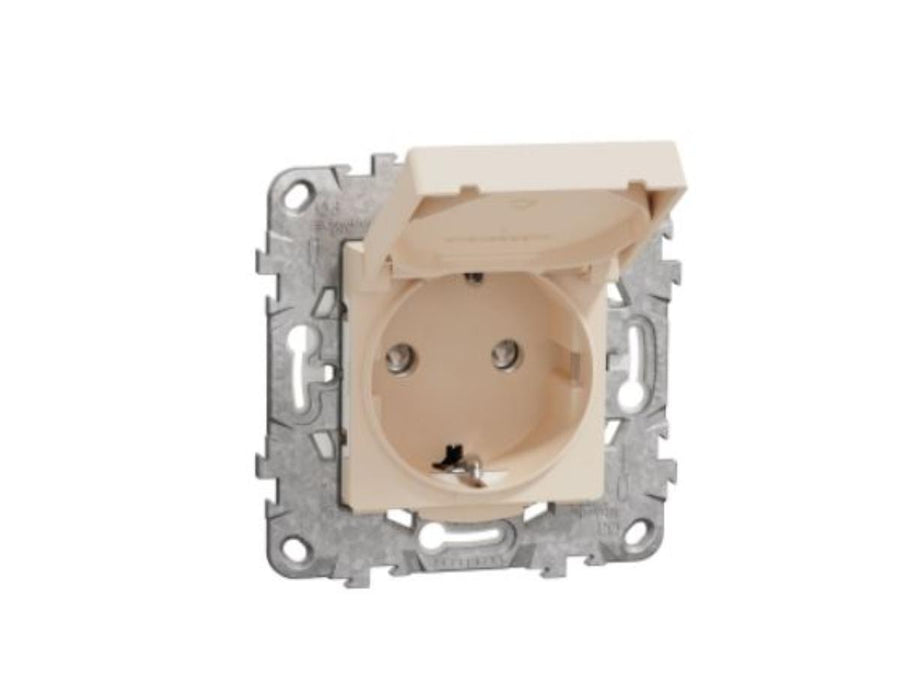

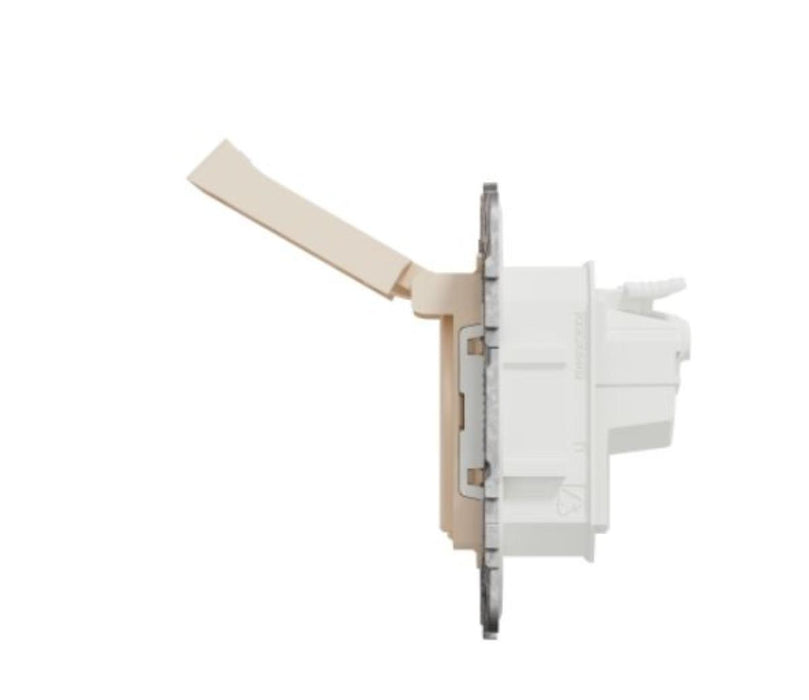

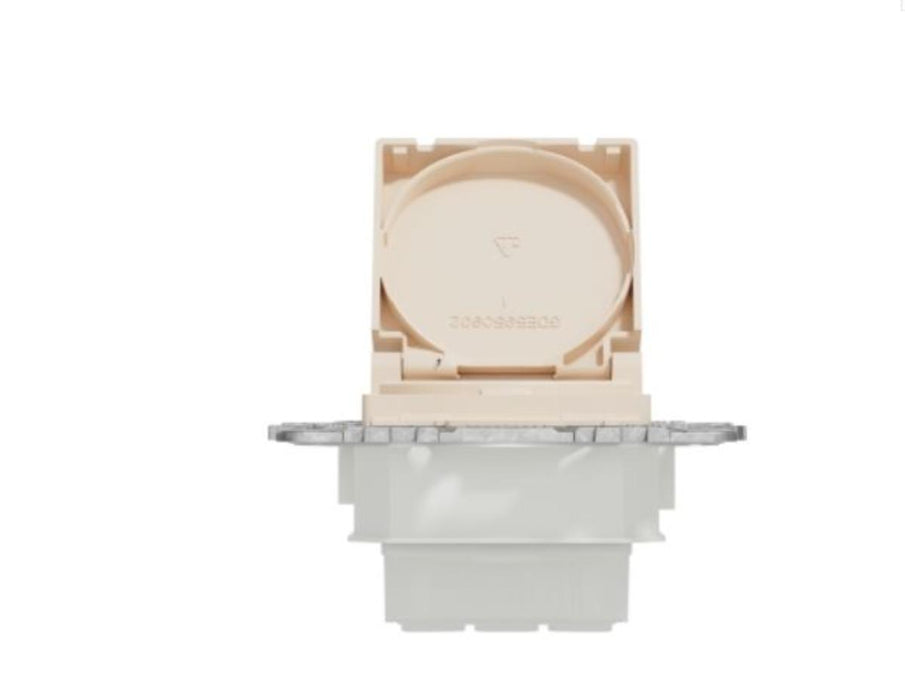

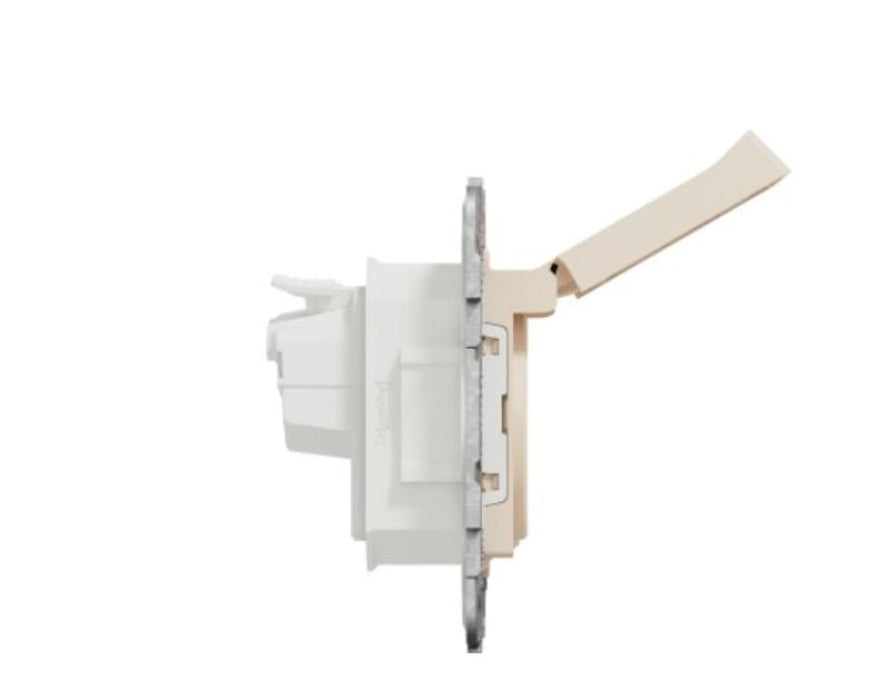

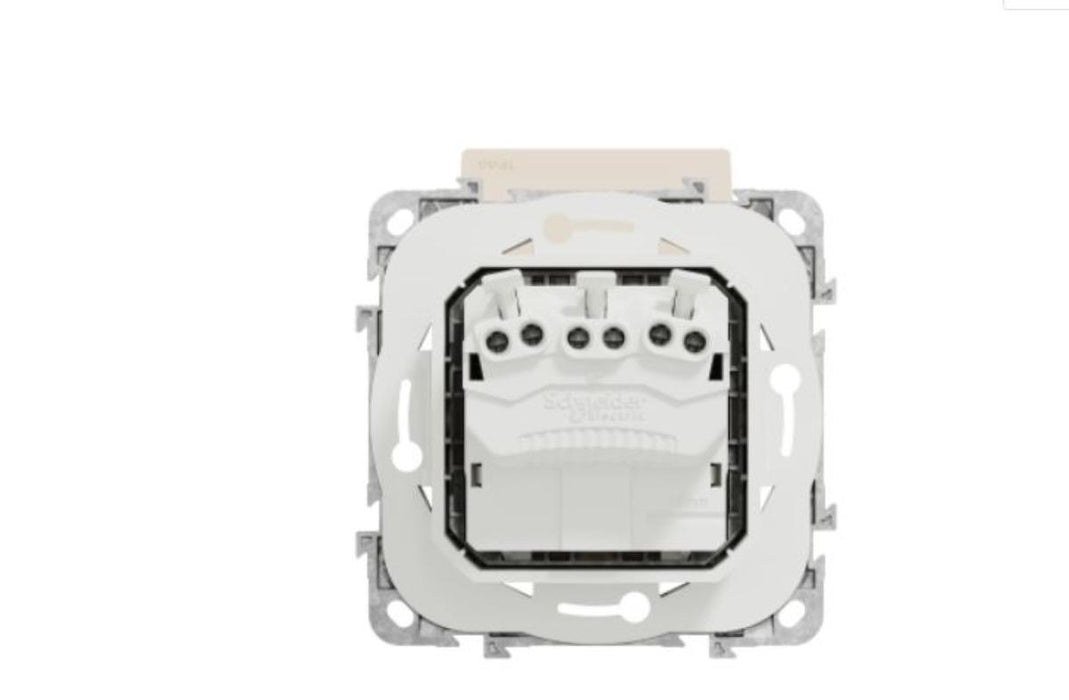

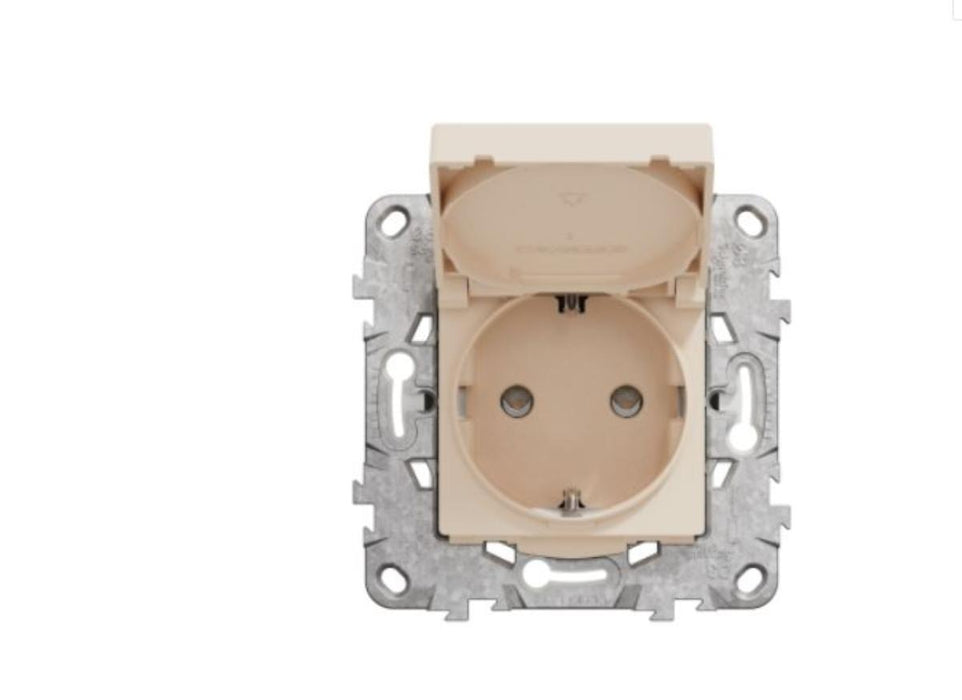

CONTACT SHUKO UNICA IP44 IVORY

The Schneider Electric New Unica NU508244 socket outlet is in ivory color. This device complies with the German standard. Its suitable mounting box can be recessed into the wall surface with a flush-mounted type. With a reached level of IP44, the device has better performance against solid particles and liquids. The new Unica includes a set of new designs, colors, and materials. Users benefit from a beautiful design that matches their style and innovative products. The new Unica is designed with smart features to be flexible, easy to understand, and fast to install, providing solutions for all customer requirements.

Product line: New Unica
Product or component type: socket-outlet
Device application: power supply
Device presentation: mechanism with fixing frame
Color tint: ivory (RAL 1013)
Outlet pole configuration: 2P + E
Outlet standard: Schuko
Rated current: 16 A
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Fixing mode: Screws
Connections – terminals: Screw terminals
Cable cross section:
0…2.5 mm² cable(s), 2 - cable stiffness: flexible
0…2.5 mm² cable(s), 2 - cable stiffness: rigid
Minimum load capacity:
100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability:
10000 cycles, cos phi = 0.8
Insulation resistance:
> 5 MOhm at 500 V
Dielectric strength:
2000 V
Material:
PC: mechanism cover
PC (polycarbonate) GF10 FR: casing

Standards:
IEC 60884-1
UNE 20315-1-1
UNE 20315-1-2
DIN VDE 0620-1

Product certifications:
AENOR
EAC

Embedding depth:
30.5 mm
Depth:
40 mm
Width:
74.5 mm
Height:
74.5 mm
Net weight
0.099 kg
Surface treatment
Untreated

Resistance to chemical agents:
Resistant to alcohol (70%)
Resistant to alcohol (96%)
Resistant to A-lactic acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal window cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
Ambient environment
ambient air temperature for operation
-5…35 °C
ambient air temperature for storage
-5…50 °C
IK protection degree: IK04
IP protection degree: IP44

Environmental characteristics:
Acetone
Bleach
UV resistant
Petrol
Oil
Alcohol
Window cleaning fluid
Liquid soap
