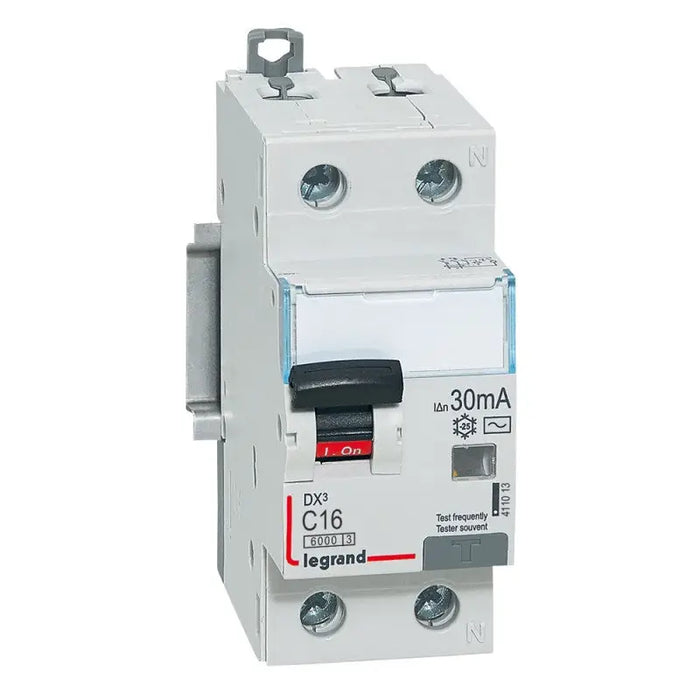

COMBINED RESIDUAL OVERCURRENT SWITCH DTZ+DX3 1P+N 16A 30mA LGR 411013 LEGRAND

COMBINED SWITCH LEGRAND DX3 1P+N 16A 30mA (LGR 411013) – Unparalleled Protection for Your Home and Business!

Ensure maximum electrical safety and peace of mind with the LEGRAND DX3 1P+N 16A 30mA combined residual current device (RCD+RCD). Designed by the world leader in electrical equipment, Legrand, this device integrates the functions of residual current protection and circuit breaker, offering a compact and effective solution for protection against current surges, short circuits and overloads.

Why is LEGRAND DX3 1P+N 16A 30mA indispensable for your electrical installation?

• Double protection in one device: This combination switch offers simultaneous protection against two major electrical risks:

  • Residual current protection (RCP): With a rated residual current of 30 mA, it instantly cuts off the power supply when touching live parts or when there is a current leak, protecting human life from dangerous electric shocks.

  • Circuit breaker (CB) with characteristic C: Provides protection against overload and short circuit, protecting your installation and appliances from damage.

• High breaking capacity: With a rated breaking capacity of 6000 A (according to IEC 61009-1 at 230V~) and 10 kA (according to IEC 60947-2 at 230V~), this switch guarantees reliable operation even under severe short-circuit conditions.

• AC type for alternating sinusoidal currents: Designed to detect alternating sinusoidal currents, making it a standard and reliable choice for most residential and commercial installations.

• Easy installation and flexibility: With a standard width of 2 modules (17.5 mm each), it mounts on a TH35 DIN rail. It offers the option of connecting with a comb or pin rail and is compatible with additional contacts, triggers and actuators from the DX3 series, ensuring system expandability.

• Power factor λ > 0.90: A high power factor indicates efficient operation and reduced losses.

• Guaranteed quality from Legrand: As a leading manufacturer of electrical solutions, Legrand is synonymous with innovation, reliability and durability. By choosing this product, you are investing in proven quality and security.

Technical characteristics:

• Product type: Residual current circuit breaker (RCBO)

• Number of poles: 1P+N (2P)

• Rated current: 16 A

• Rated residual current: 30 mA

• Trigger characteristic: C

• Supply voltage: 230 V

• Rated breaking capacity: 6000 A (according to IEC 61009-1), 10 kA (according to IEC 60947-2)

• DTZ type: AC (detects alternating sinusoidal currents)

• Width: 2 modules

• Manufacturer: Legrand

• Color: Gray

General characteristics:

• Compatible with the optimal HX3 power distribution system up to 125 A.

• Designed for mounting on a TH35 support.

Don't compromise on the safety of your electrical equipment and the people in your facility. Invest in a LEGRAND DX3 1P+N 16A 30mA combination switch and enjoy reliable and complete protection.
