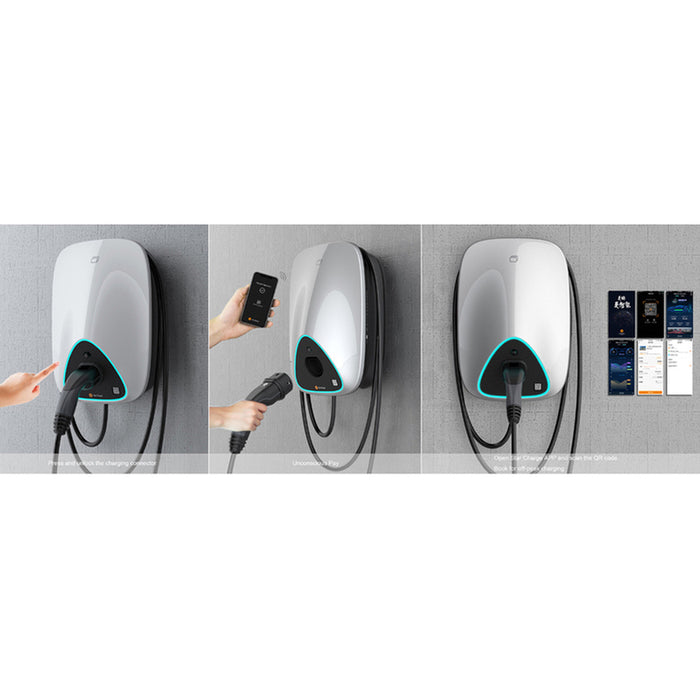

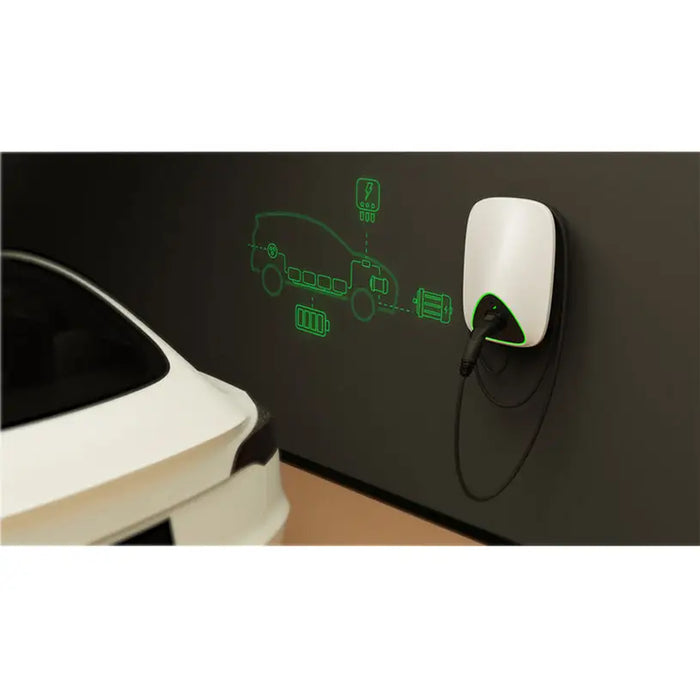

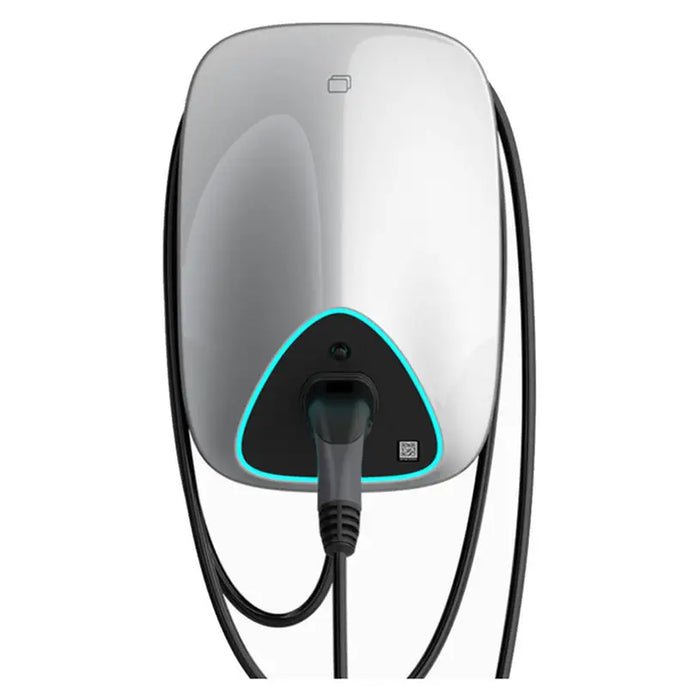

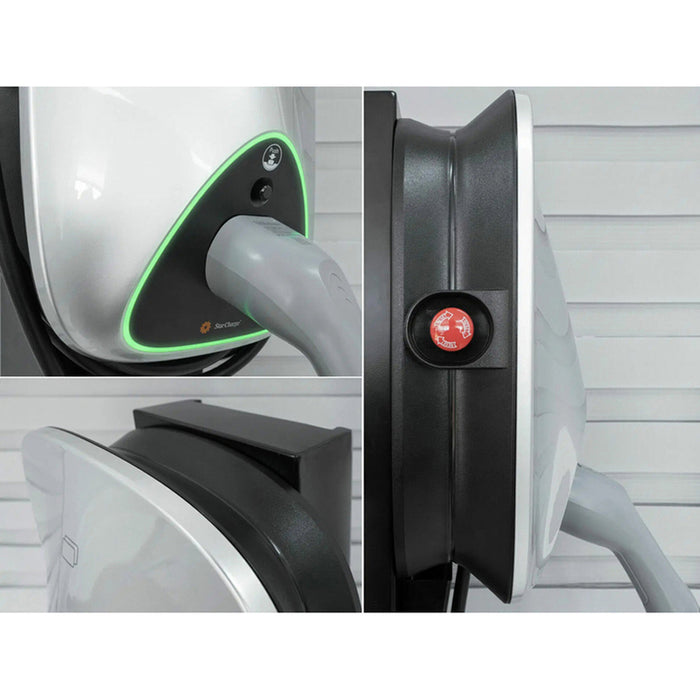

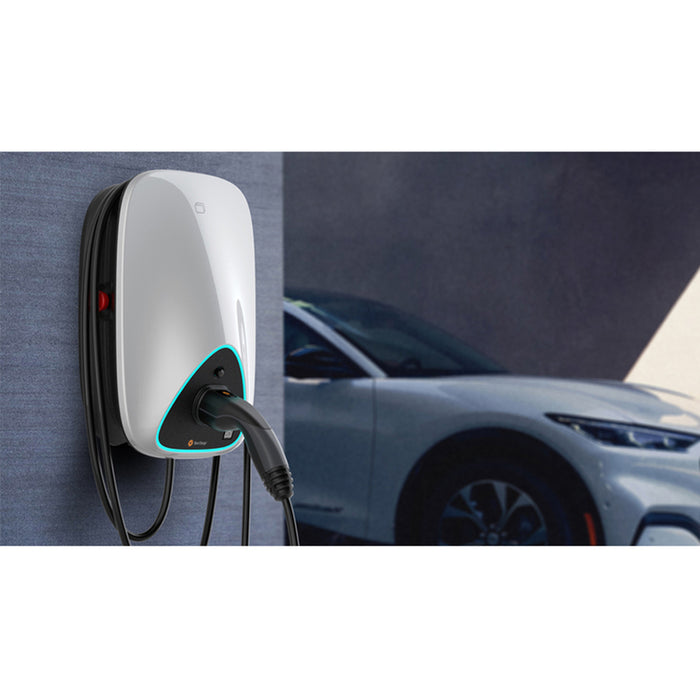

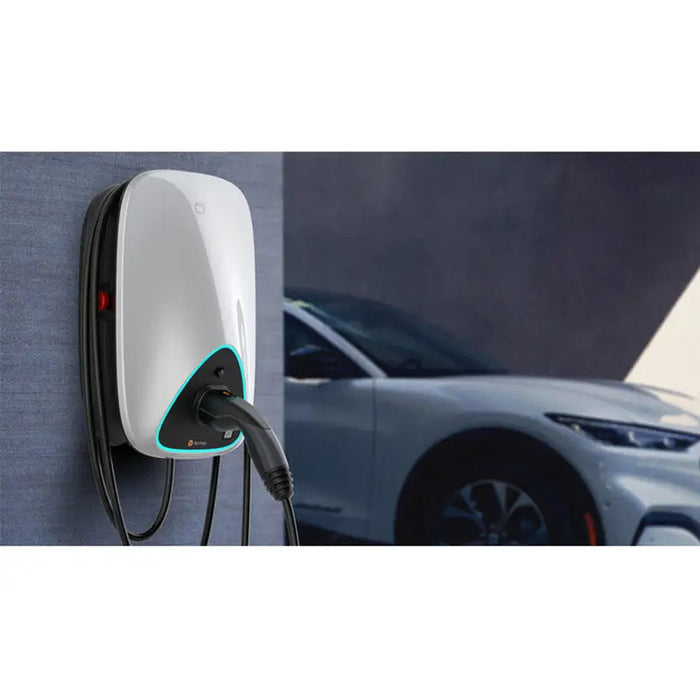

CAR CHARGING STATION 22KW WITH CABLE TYPE 2 STARCHARGE AURORA 22kW

Aurora Station Star Charge - the future of electric vehicle charging

• Compatible with a wide range of EV models, so you can charge your vehicle no matter what make or model you drive.
• Excellent industrial design brings a pleasant user experience.
• The station can be connected to operator software via the OCPP 1.6 protocol.
• Supports 4G, Wi-Fi, Ethernet, RS485.
• Charging mode: Mode 3 (IEC 61851-1)
• Input/output power and current: 22kW/32A max.
• Nominal input/output voltage: 230Vac±10%, Single phase, 50/60Hz, L+N+PE
• Network TN-S, TN-C, TN-CS, TT
• Connection to the electric vehicle: Configuration 01: 1 x IEC 62196-2 Type 2 Coupled Plug (Case C) Configuration 02: 1 x IEC 62196-2 Type 2 Socket (Case B)
• Residual current protection: Type A RCD + DC 6mA
• Protection overvoltage, undervoltage, residual current, short circuit, overheating, grounding
• IP rating: IP54@Case B, IP55@Case C
• IK rating: IK10
• Cooling: Natural cooling
• Installation:Wall mount
• Practical dimensions and 5-meter cable length
• Dimensions (WxDxH) 28.2x40.9x14.8cm
