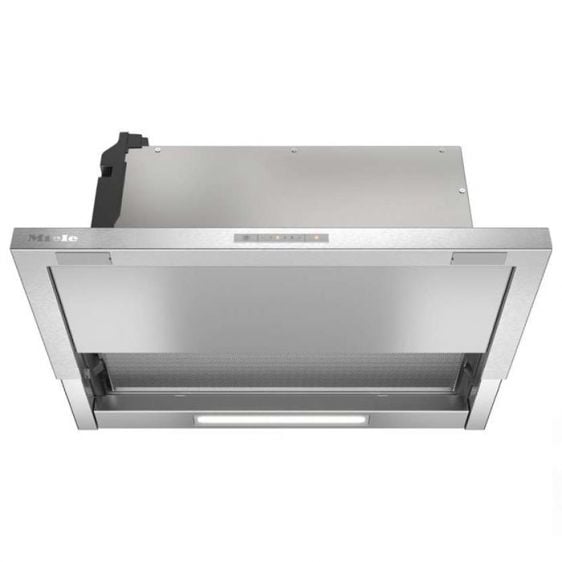

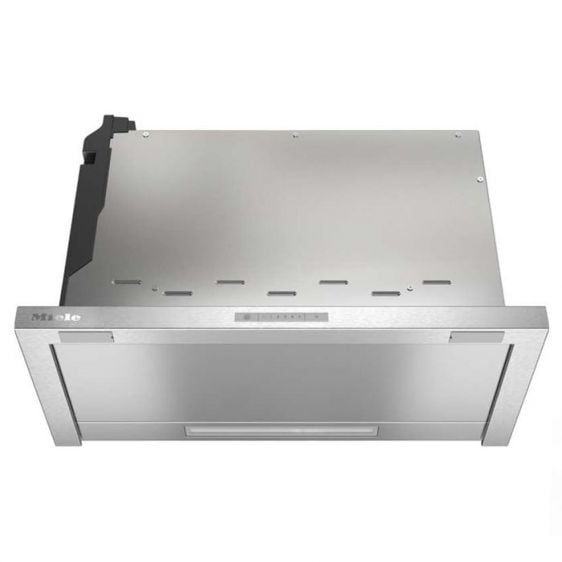

Built-in hood MIELE DAS 2620 EDST

Technical specifications:

Construction type

• Slim hood •

Design

• Color Stainless steel

User convenience

• Electronic control •
• Light-sensor controls •
• Power levels (number, excluding Booster setting) 3
• Booster setting •
• Programmable Booster shutdown •

Convenience of cleaning

• Easy-to-clean inner casing coating – CleanCover •

Efficiency and sustainability

• Filter system Number of dishwasher-safe stainless steel grease filters 1

Lighting

• LED •
• Number x W 2 x 3 W
• Lighting intensity in Lx 320
• Color temperature in K 3.000

Fan

• Air intake with max. duct diameter in ventilation mode (not for models with outdoor unit)
• Air suction at level 1 (m³/h) 150
• Air intake at level 2 (m³/h) 275
• Air suction at level 3 (m³/h) 400
• Air intake at Booster setting (m³/h) 550
• Sound power level for stage 1 (dB(A) re 1 pW) 45
• Sound power level for stage 2 (dB(A) re 1 pW) 51
• Sound power level for level 3 (dB(A) re 1 pW) 56
• Sound power level for Booster setting (dB(A) re 1 pW) 64
• Sound pressure level at level 1 (dB(A) re 20 µPa) 32
• Sound pressure level at level 2 (dB(A) re 20 µPa) 39
• Sound pressure level at level 3 (dB(A) re 20 µPa) 44
• Sound pressure level at Booster setting (dB(A) re 20 µPa) 52
• Air intake in recirculation mode
• Air suction at level 1 (m³/h) 80
• Air intake at level 2 (m³/h) 180
• Air suction at level 3 (m³/h) 280
• Air intake at Booster setting (m³/h) 350
• Sound power level for stage 1 (dB(A) re 1 pW) 53
• Sound power level for stage 2 (dB(A) re 1 pW) 61
• Sound power level for level 3 (dB(A) re 1 pW) 67
• Sound power level for Booster setting (dB(A) re 1 pW) 72
• Sound pressure level at level 1 (dB(A) re 20 µPa) 40
• Sound pressure level at level 2 (dB(A) re 20 µPa) 48
• Sound pressure level at level 3 (dB(A) re 20 µPa) 54
• Sound power level for Booster setting (dB(A) re 1 pW) 60

Safety

• Safety shutdown •

Technical characteristics

• Case width in mm 595
• Height of the hood housing in mm 34
• Depth of the hood housing in mm 275
• Minimum distance above electric hobs in mm 450
• Minimum height above gas hob (max. 12.6 kW total power, burner ? 4.5 kW) in mm 650
• Net weight in kg 12.0
• Length of the electrical cable in m 1.5
• Standard plug installed •
• Total included load in kW 0.19
• Voltage in V 230
• Fuse rating in A 10
• Frequency in Hz 50
• Number of phases 1

Installation instructions

• Outlet for connection to ventilation from above •
• Outlet diameter for connection to ventilation in mm 150

Warranty: 25 months
