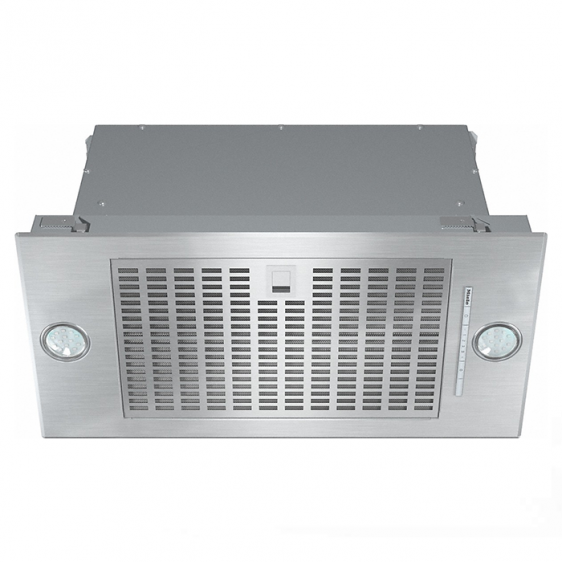

Built-in hood MIELE DA 2360

Technical specifications:

Construction type

• Fully integrated hood •

Design

• Color Colorless
• RAL color is possible upon special request •
• Special execution possible •

User convenience

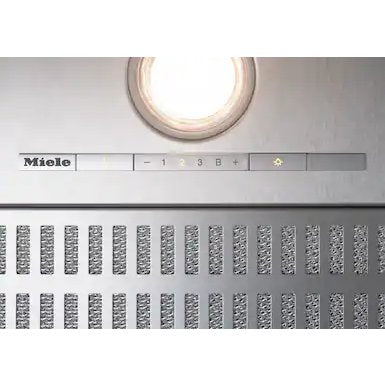

• Electronic control •
• Light-sensor controls •
• Power levels (number, excluding Booster setting) 3
• Booster setting •

Convenience of cleaning

• CleanCover •

Efficiency and sustainability

• Annual electricity consumption in kWh/year 49.1

Filter system

• Number of dishwasher-safe stainless steel grease filters 1

Lighting

• LED •
• Number x W 2 x 3 W
• Lighting intensity in Lx 350
• Color temperature in K 3.000

Fan

• Double-acting fan •
• AC (Alternating Current) electric motor •
• Air intake with max. duct diameter in ventilation mode (not for models with outdoor unit)
• Air suction at level 1 (m³/h) 250
• Air suction at level 2 (m³/h) 300
• Air suction at level 3 (m³/h) 360
• Air intake at Booster setting (m³/h) 600
• Sound power level for stage 1 (dB(A) re 1 pW) 47
• Sound power level for stage 2 (dB(A) re 1 pW) 48
• Sound power level for level 3 (dB(A) re 1 pW) 52
• Sound power level for Booster setting (dB(A) re 1 pW) 64
• Sound pressure level at level 1 (dB(A) re 20 µPa) 31
• Sound pressure level at level 2 (dB(A) re 20 µPa) 34
• Sound pressure level at level 3 (dB(A) re 20 µPa) 38
• Sound pressure level at Booster setting (dB(A) re 20 µPa) 50
• Air intake in recirculation mode
• Air suction at level 1 (m³/h) 190
• Air suction at level 2 (m³/h) 250
• Air suction at level 3 (m³/h) 320
• Air intake at Booster setting (m³/h) 500
• Sound power level for stage 1 (dB(A) re 1 pW) 54
• Sound power level for stage 2 (dB(A) re 1 pW) 60
• Sound power level for level 3 (dB(A) re 1 pW) 64
• Sound power level for Booster setting (dB(A) re 1 pW) 72
• Sound pressure level at level 1 (dB(A) re 20 µPa) 39
• Sound pressure level at level 2 (dB(A) re 20 µPa) 45
• Sound pressure level at level 3 (dB(A) re 20 µPa) 49
• Sound power level for Booster setting (dB(A) re 1 pW) 57

Safety

• Safety shutdown •

Technical characteristics

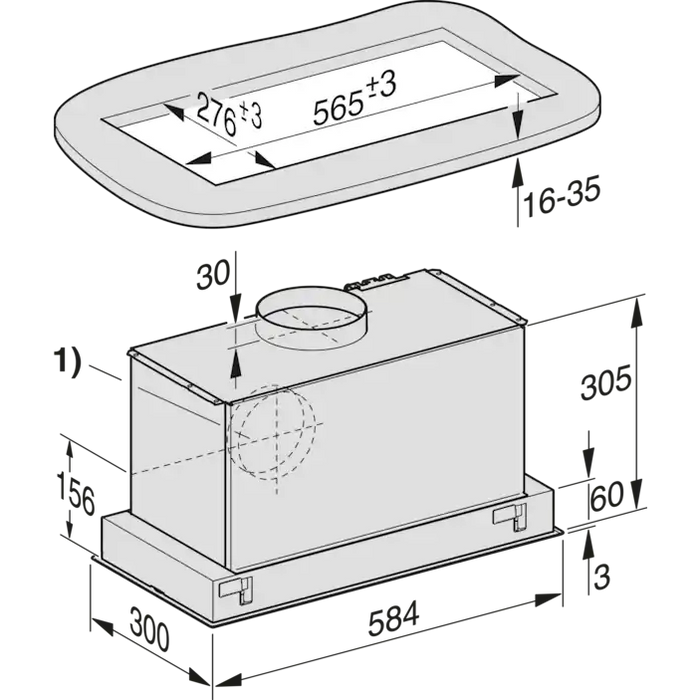

• Case width in mm 584
• Height of the hood housing in mm 63
• Depth of the hood housing in mm 297
• Minimum distance above electric hobs in mm 450
• Minimum height above gas hob (max. 12.6 kW total power, burner ? 4.5 kW) in mm 650
• Net weight in kg 11.0
• Length of the electrical cable in m 1.5
• Standard plug installed •
• Total connected load in kW 0.23
• Voltage in V 230
• Fuse rating in A 10
• Frequency in Hz 50
• Number of phases 1

Installation instructions

• Outlet for connection to ventilation from above •
• Outlet for connecting to ventilation from top and rear •
• Outlet diameter for connection to ventilation in mm 150

Accessories provided with the appliance

• Non-return valve •
• Reducing flange from 150 to 125 mm Ø •

Warranty: 25 months
