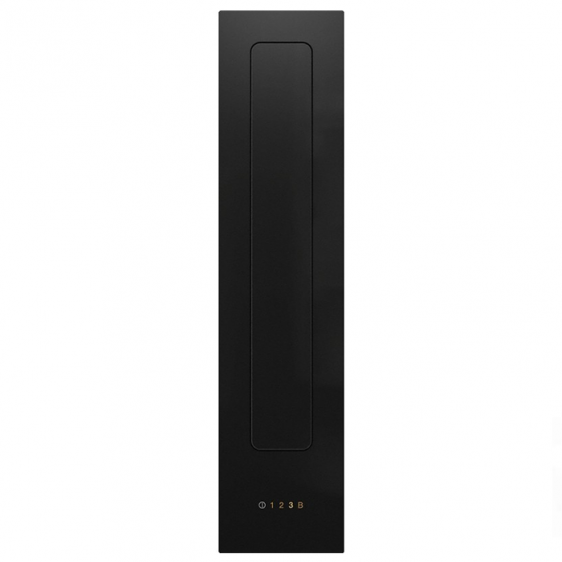

Built-in cooker hood with underdraft MIELE CSDA 7000 FL

Greater safety when combined with gas

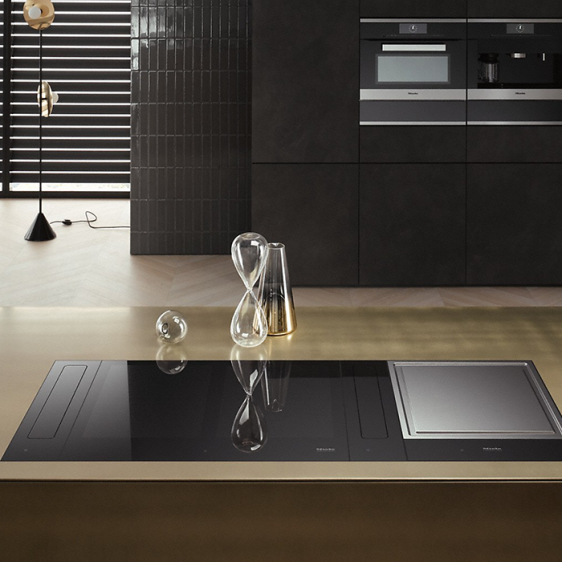

The new cooktop extractor can be installed next to any SmartLine element. When installed next to a gas element, it is essential to use the FlameGuard. This is a cover for the cooktop extractor. It adjusts automatically, is held in place with magnets and can be used on either side of the extractor. It prevents flames from entering the extractor.

Technical specifications:

• Intuitive quick selection with numeric sequences – Smart Select
• Elegant design – for flush or raised installation
• Combines perfectly with every SmartLine element
• Effective filtration – 10-layer stainless steel grease filter.
• Energy efficient and quiet – powerful ECO engine

Construction type

• Undermount hood with downdraft •

Design

• Hidden •
• Frameless – surface mounted •

User convenience

• Digital display for power level •
• Remaining time 5 min. •

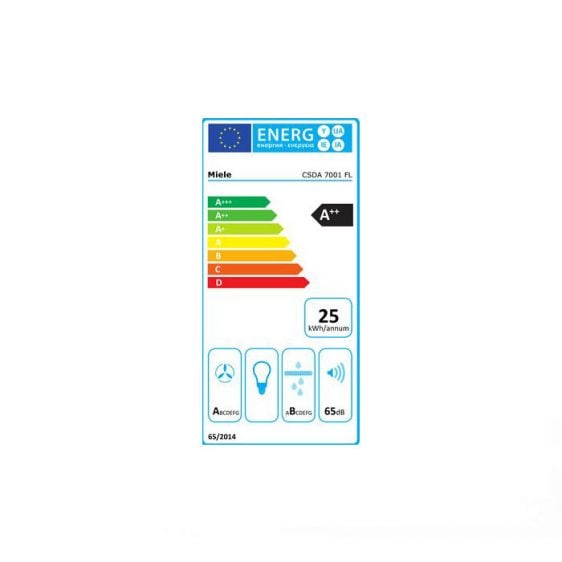

Efficiency and sustainability

• Annual electricity consumption in kWh/year 29.3
• Hydrodynamic efficiency class A
• Lighting efficiency class -
• Grease filtration efficiency class B
• ECO motor •

Convenience of cleaning

• Easy-to-clean glass ceramic •
• Easy-to-clean inner casing coating – CleanCover •

Filter system

• Number of dishwasher-safe stainless steel grease filters (10-layer) 1
• Air intake with max. duct diameter in exhaust mode
• Air intake at Level 1 (m³/h) in accordance with EN 61591 150
• Air intake at Level 2 (m³/h) in accordance with EN 61591 290
• Air intake at Level 3 (m³/h) in accordance with EN 61591 440
• Air intake at Booster level (m³/h) in accordance with EN 61591 535
• Sound power at Level 1 (dB(A) re 1 pW) in accordance with EN 60704-3 44
• Sound power at Level 2 (dB(A) re 1 pW) in accordance with EN 60704-3 58
• Sound power at Level 3 (dB(A) re 1 pW) in accordance with EN 60704-3 66
• Sound power at Booster level (dB(A) re 1 pW) in accordance with EN 60704-3 70
• Sound pressure at Level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 29
• Sound pressure at Level 2 (dB(A) re 20µPa) in accordance with EN 60704-2-13 43
• Sound pressure at Level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 51
• Sound power at Booster level (dB(A) re 20 µPa) in accordance with EN 60704-2-13 55

Air intake in recirculation mode

• Air intake at Level 1 (m³/h) in accordance with EN 61591 100
• Air intake at Level 2 (m³/h) in accordance with EN 61591 235
• Air suction at Level 3 (m³/h) in accordance with EN 61591 380
• Air intake at Booster level (m³/h) in accordance with EN 61591 460
• Sound power at Level 1 (dB(A) re 1 pW) in accordance with EN 60704-3 49
• Sound power at Level 2 (dB(A) re 1 pW) in accordance with EN 60704-3 63
• Sound power at Level 3 (dB(A) re 1 pW) in accordance with EN 60704-3 73
• Sound power at Booster level (dB(A) re 1 pW) in accordance with EN 60704-3 78
• Sound pressure at Level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 34
• Sound pressure at Level 2 (dB(A) re 20µPa) in accordance with EN 60704-2-13 49
• Sound pressure at Level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 58
• Sound power at Booster level (dB(A) re 20 µPa) in accordance with EN 60704-2-13 63

Safety

• Safety shutdown •
• FlameGuard •

A set of technical characteristics

• Dimensions in mm (width) 120
• Dimensions in mm (height) 168
• Dimensions in mm (depth) 520
• Housing height including electrical installation box in mm 168
• Slot dimensions in mm (width) for top mounting 100
• Slot dimensions in mm (depth) for top mounting 500
• Internal slot dimensions in mm (width) for concealed installation 100
• Internal cutout dimensions in mm (depth) for concealed installation 500
• External cutout dimensions in mm (width) for concealed installation 124
• External cutout dimensions in mm (depth) for concealed installation 524
• Weight in kg 11
• Total rated power in kW 0.170
• Voltage in V 230
• Fuse rating in A 10
• Number of phases 1
• Cable length in m 2

Installation instructions

• Base fan with ventilation connection •
• Side and rear air exhaust connection •
• Dimensions of the drain pipe connector in mm (width) 222
• Drain pipe connector dimensions in mm (depth) 89

Standard accessories

• Network cable with plug •

Warranty: 25 months.
