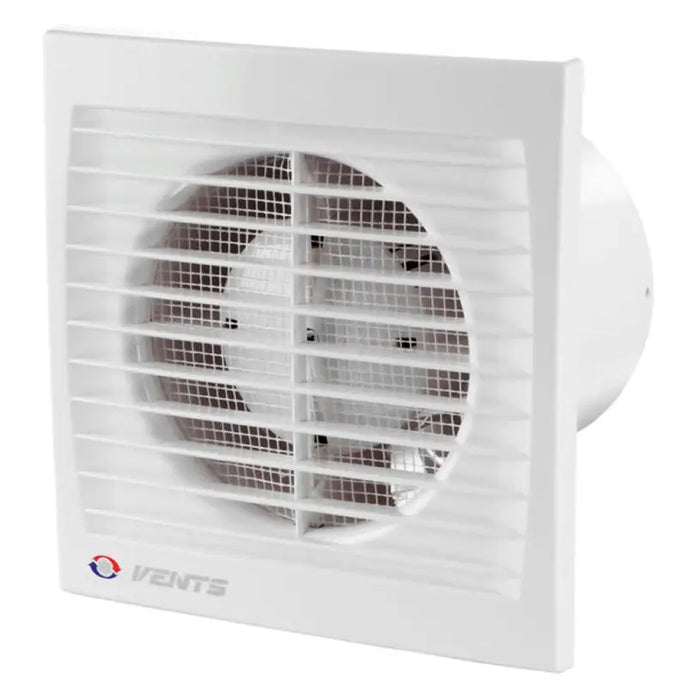

BATHROOM FAN VENTS 125 S

BATHROOM FAN VENTS 125 S

Application

• Permanent and or periodic ventilation of bathrooms, kitchens and other service areas.
• Installation in a ventilation shaft or air duct.
• Compatible with 100 mm air ducts.

Design

• Extremely thin front panel - only 8 mm.
• The housing and fin are made of high-quality ABS plastic, UV resistant.
• The intelligent impeller design gives the fan high efficiency and long life.
• Insect net.
• Protection class IP 34.

Engine

• Reliable low-watt motor.
• Designed for continuous operation without the need for maintenance.
• Built-in overheating protection.

Model options

• MA L - The motor is equipped with bearings for a longer service life (about 40,000 hours) and allows installation at any angle.
• MA Turbo - Engine with increased flow rate.
• MA L Turbo - Engine with increased flow and bearing engine.
• MA Press - Propeller with improved aerodynamics for higher pressure.
• MT - Fan with timer and adjustable operating time delay from 2 to 30 minutes.
• MTH - Fan with timer (2 to 30 minutes) and humidity sensor with adjustable level from 60 to 90%.
• MV - Fan with built-in "rope" type switch MTP - Fan with timer (2 to 30 minutes) and motion sensor with sensitivity from 1 to 4 meters and an angle of 100 degrees.

IMPORTANT!!! FOR NORMAL OPERATION OF FANS WITH TIMER, TIMER AND HUMIDITY SENSOR, TIMER AND MOTION SENSOR OPTIONS, A CONSTANT PHASE IS REQUIRED NEXT TO IT AS SHOWN IN THE ATTACHED CONNECTION DIAGRAM WHERE:

Overall dimensions
