| Marketing description |

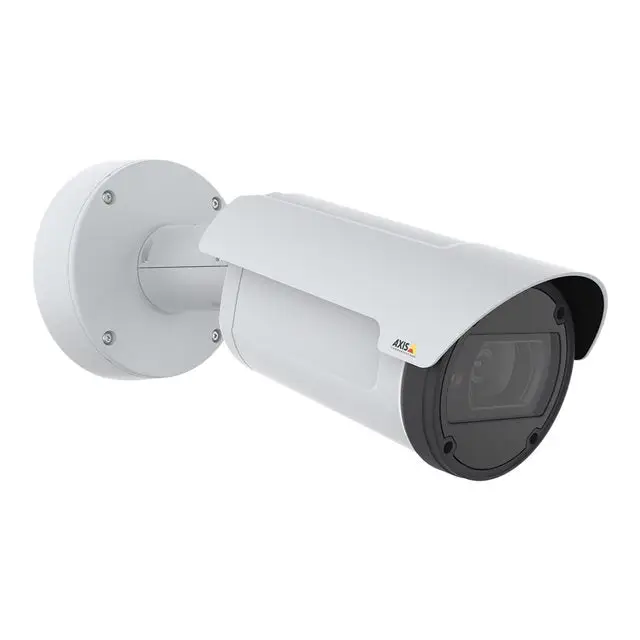

| AXIS Q1798-LE combines superior resolution with ultra-high light sensitivity for large-scale surveillance. It captures outstanding forensic images in low-light scenes. |
| Product features |
-
Huge savings in storage and bandwidth
AXIS Q1798-LE captures images with more realistic and saturated colours and sharper images of moving objects. Even the darker areas of the scene will be brighter and more colourful. And thanks to zipstream, enhanced with support for H.264 and H.265, it reduces bandwidth and storage requirements like never before.
-
Anytime, anywhere
Signed firmware and secure boot ensure that only authorised firmware is installed and that the firmware has not been compromised. AXIS Q1798-LE includes support for video with audio, as well as scene profiles, shock detection, corridor format with automatic rotation and barrel distortion correction for consistently excellent image quality.
|
| General |
| Device type |
Network surveillance camera |
| Audio support |
Yes |
| Audio formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connection technology |
Wired |
| Width |
36 cm |
| Depth |
14.7 cm |
| Height |
14.7 cm |
| Weight |
2.55 kg |
| Camera |
| Type |
Colour - Day and night - fixed - weatherproof |
| Digital video format |
MJPEG, H.264 |
| Maximum digital video resolution |
3840 x 2160 |
| Motion detection |
Yes |
| Video modes |
3840/30p |
| Exposure range |
2 s - 1/45500 s |
| Minimum illumination |
0.03 lux - colour - F1.7 - 50 IRE
0.006 lux - B&W - F1.7 - 50 IRE
0 lux - IR - F1.7 |
| Infrared LEDs |
Yes |
| Infrared range |
100 m |
| Digital video capture resolution |
3840 x 2160, 160 x 90, 3712 x 2784 |
| Frame rate (max.) |
30 frames per second |
| RAM |
2 GB |
| Flash memory |
512 MB |
| Functions |
Sharpness control, white balance, saturation control, brightness control, contrast control, image mirroring, defogger, privacy mask function, NAS readiness, active tampering alarm, password protection, lens distortion correction function, shock detection, auto-rotate mode, autofocus, ONVIF support (Profile S), ONVIF support (Profile G), image overlay, pixel counter support, IR cut filter, digital data authentication, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, HTTPS encryption, Lightfinder 2.0 technology |
| Image sensor |
| Type |
10 MP RGB BSI CMOS 4/3" |
| Lens construction |
| Optical zoom |
4 x |
| Focal length |
12 mm - 48 mm |
| Lens iris |
F/1.7-4.0 |
| Focus adjustment |
Automatic |
| Horizontal field of view (degrees) |
20 - 90 |
| Vertical field of view (degrees) |
12 - 62 |
| Interfaces |
| Network interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
LAN/power - terminal block
Audio line in/microphone - 3.5 mm jack |
| Supported memory cards |
MicroSD card, microSDHC card, microSDXC card |
| Miscellaneous |
| Included accessories |
Connector kit, Resistorx L-key |
| Included cables |
1 x network cable |
| Compliant standards |
EN55024, EN 61000-6-1, EMC, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 62262 IK08, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, EAC, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1, IEEE 802.1x |
| Colour |
White |
| Power |
| Power requirements |
PoE Class 3 |
| Software / System requirements |
| Included software |
Windows decoder with 1-user licence, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard |
| Manufacturer warranty |
| Service and support |
Limited warranty - 3 years |
| Environmental specifications |
| Minimum operating temperature |
-40 °C |
| Maximum operating temperature |
60 °C |
| Relative humidity (operating) |
10 - 100% |
