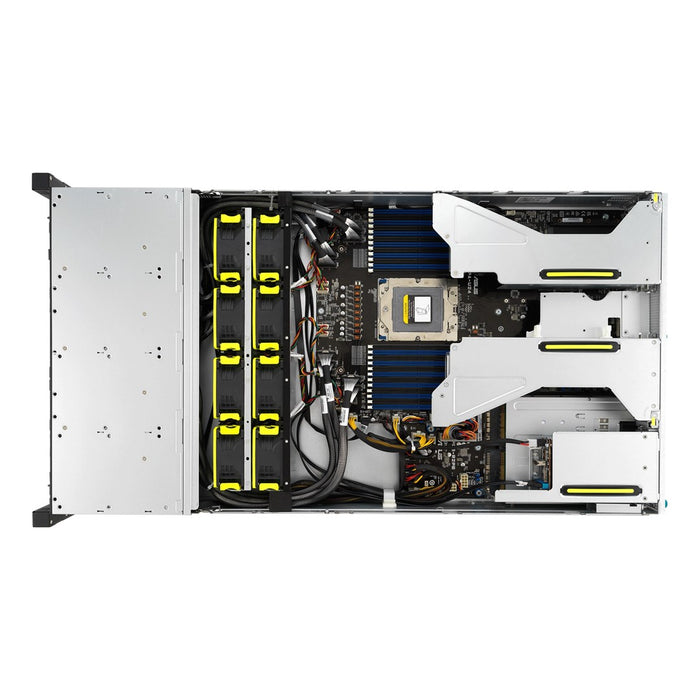

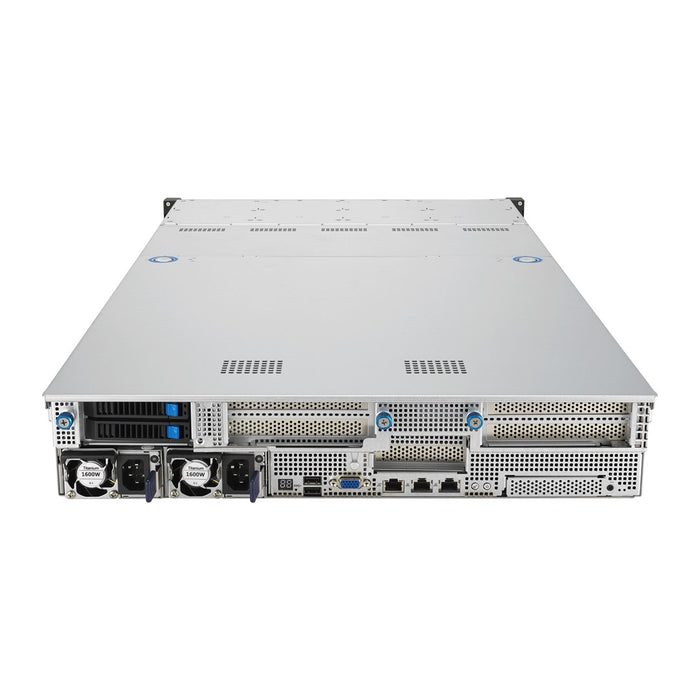

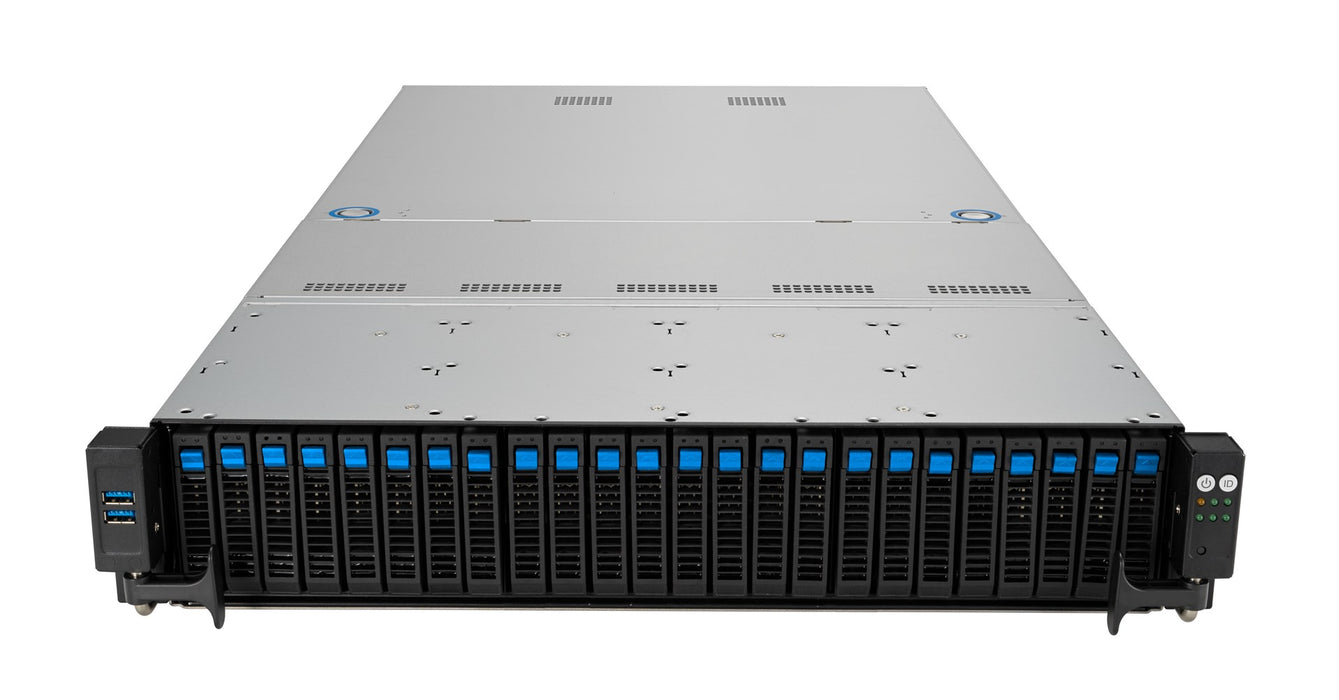

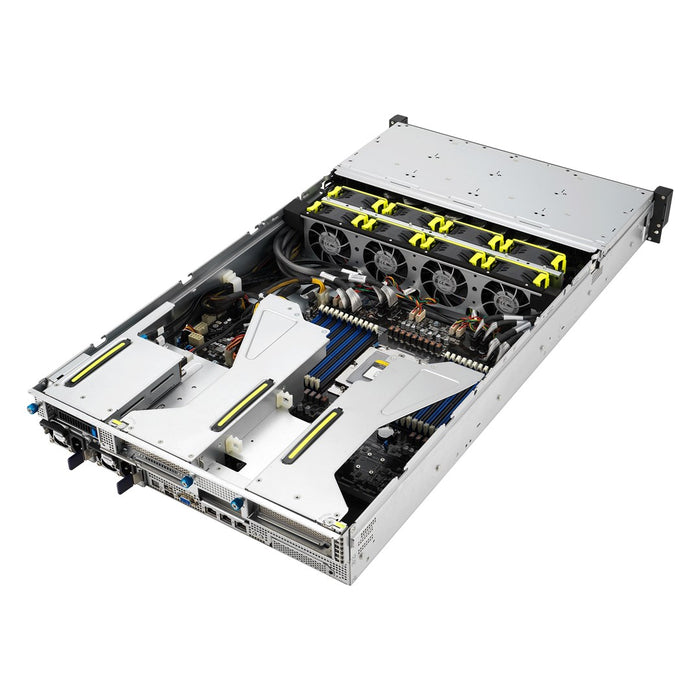

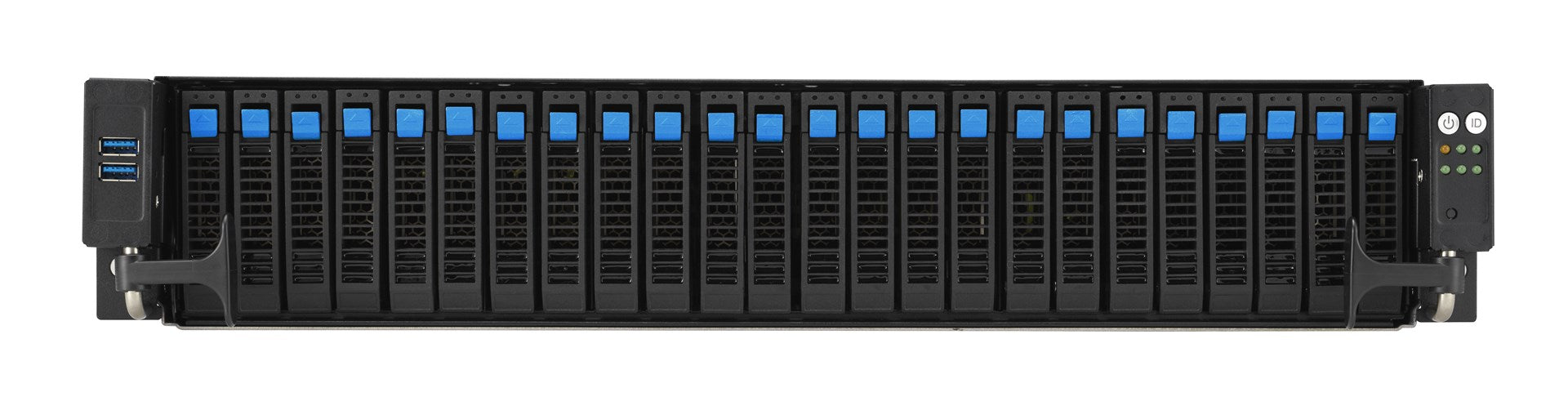

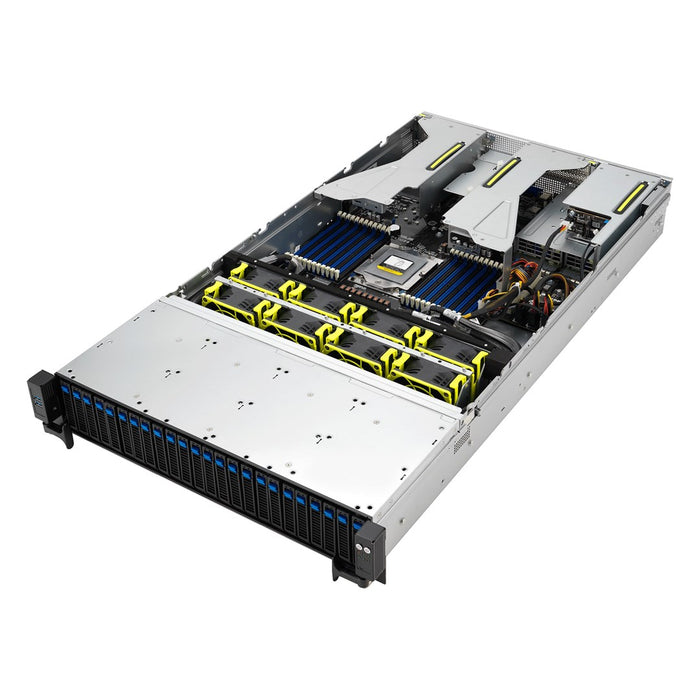

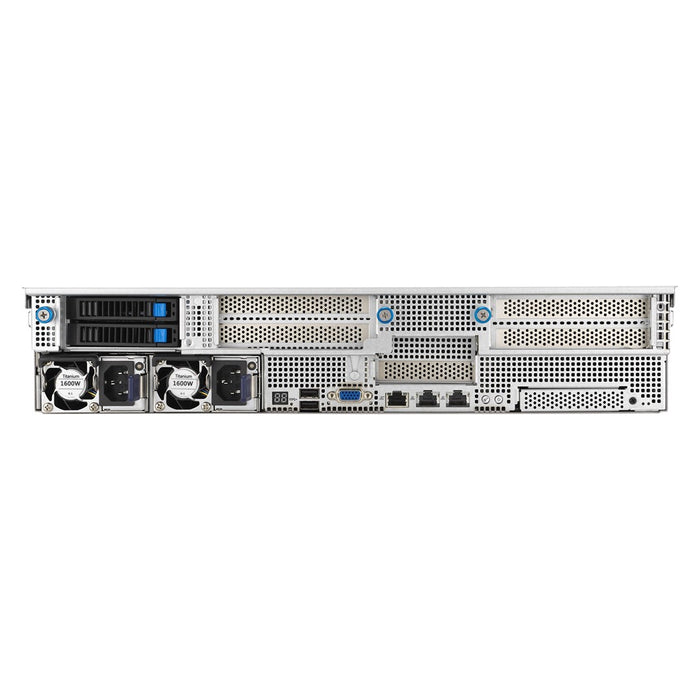

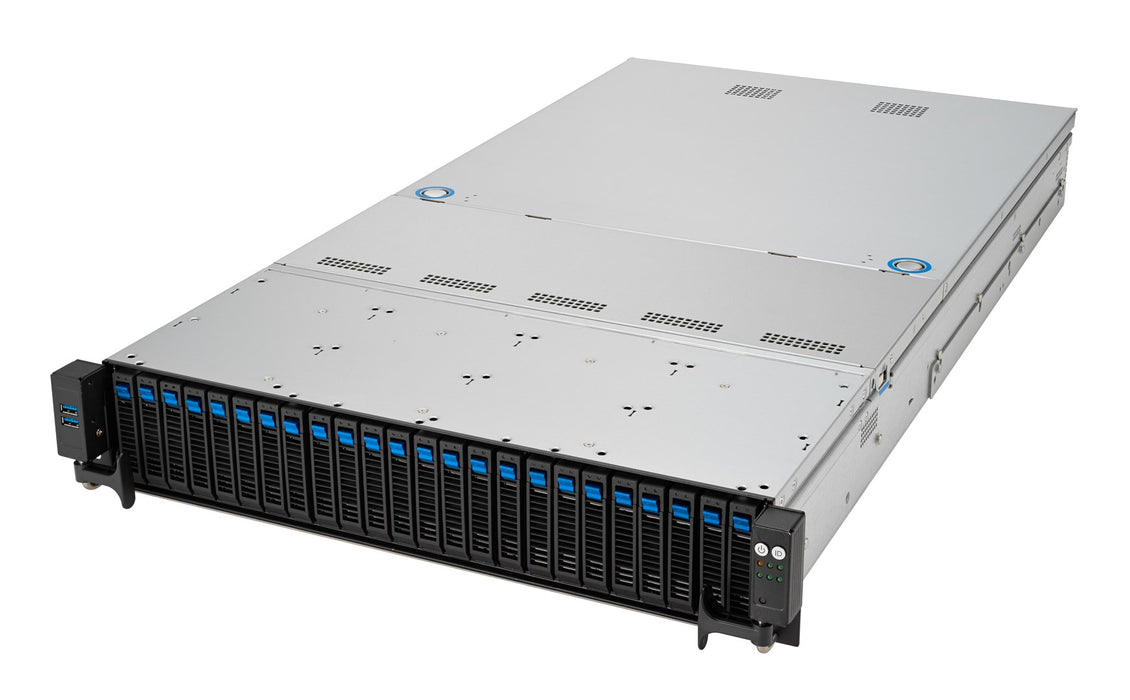

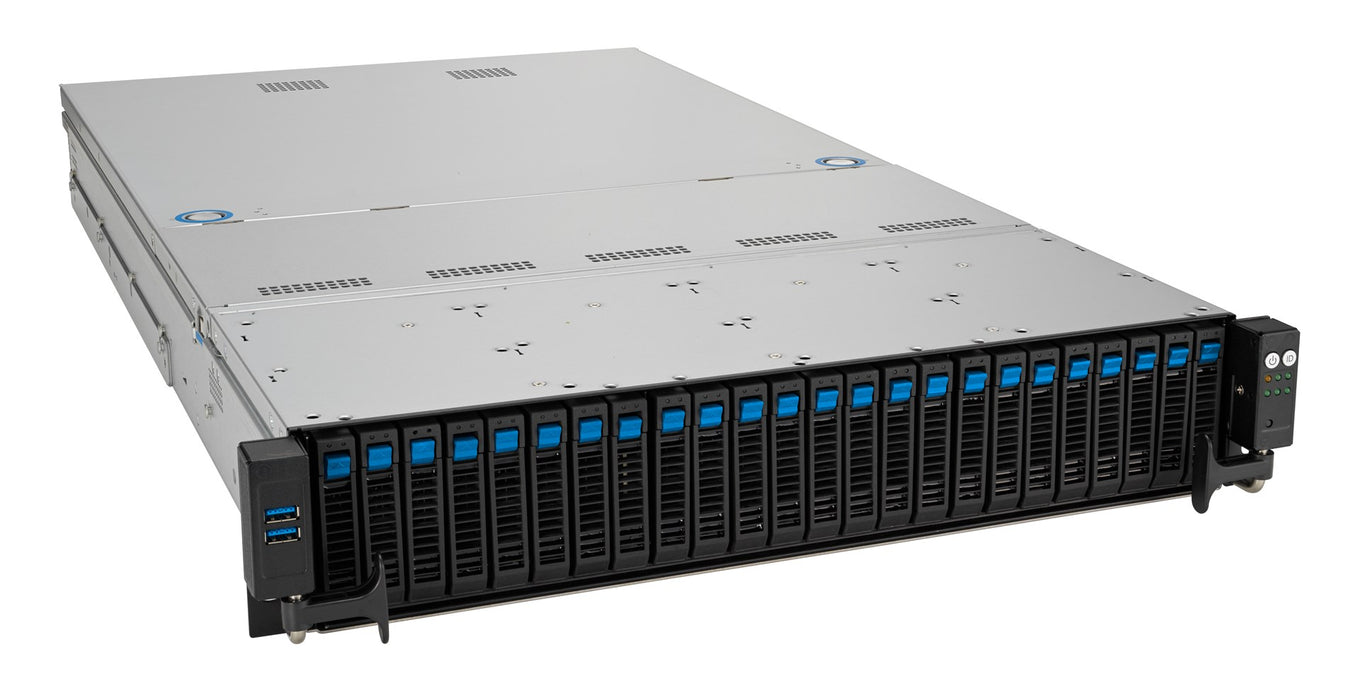

ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey

ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey

Asus
SKU DGT0157252

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Sustainability certifications CB, RCM, Federal Communications Commission (FCC), CE
Compliance certifications RCM, CE, Federal Communications Commission (FCC), CB

Processor

Processor socket SP5 socket
Compatible processor series AMD EPYC 9004
Processor manufacturer AMD
Number of supported processors 1
Processor family AMD EPYC

Graphics

Integrated graphics card model Aspeed AST2600
Integrated graphics card memory 64 MB

Memory

Number of DIMM slots 24
Supported DIMM module capacities 32GB, 128GB, 64GB, 16GB, 256GB
Supported memory types DDR5-SDRAM
Supported RDIMM memory speeds 4000, 4400 MHz, 3600 MHz, 4800 MHz
Maximum internal memory 6 TB

Design

Chassis type Rack mount (2U)
Power on/off switch Yes
Reset button Yes
Product colour Grey
LED indicators Yes

Power

Redundant power supply (RPS) support Yes
Power supply 1600 W

Operating conditions

Operating temperature (T-T) 10 - 35 °C
Storage humidity (H-H) 20 - 90%
Storage temperature (T-T) -40 - 70 °C

Weight and dimensions

Width 449 mm
Height 88.1 mm
Depth 840 mm
Weight 19.1 kg

Network

Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Intel® I350-AM2

Packaging data

Packaging weight 26.6 kg

Expansion slots

PCI Express slot version 5.0

Storage

Supported storage device sizes M.2, 2.5
Number of 2.5" bays 26
Hot-swap HDD bays Yes
SSD form factor M.2
Number of supported drives 28
Supported drive types HDD and SSD

Ports and interfaces

Number of VGA (D-Sub) ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Ethernet LAN ports (RJ-45) 2
IPMI LAN (RJ-45) port Yes

Safety warning

Warnings Do not disassemble the device yourself. The product may contain components harmful to health; handle with extra care. Do not dispose of in regular household waste; the product requires special treatment.
