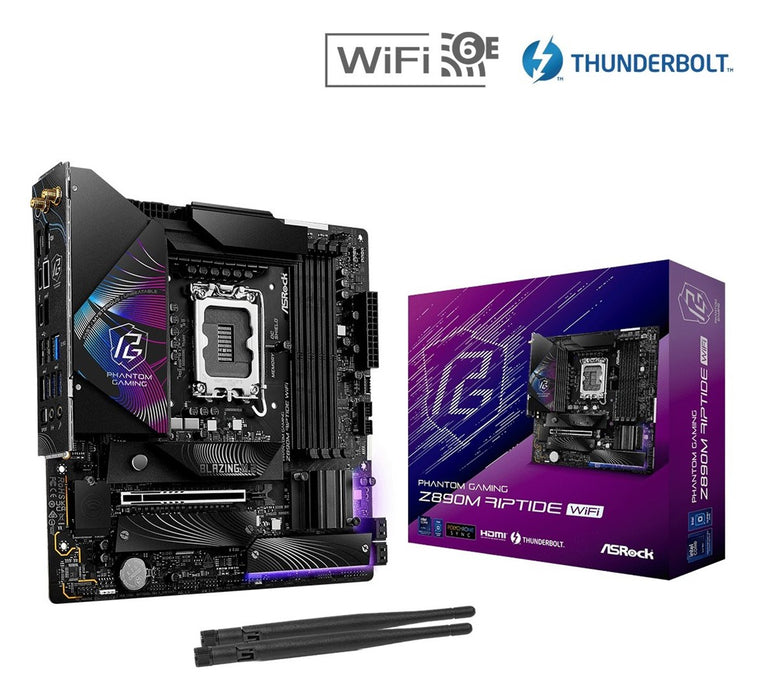

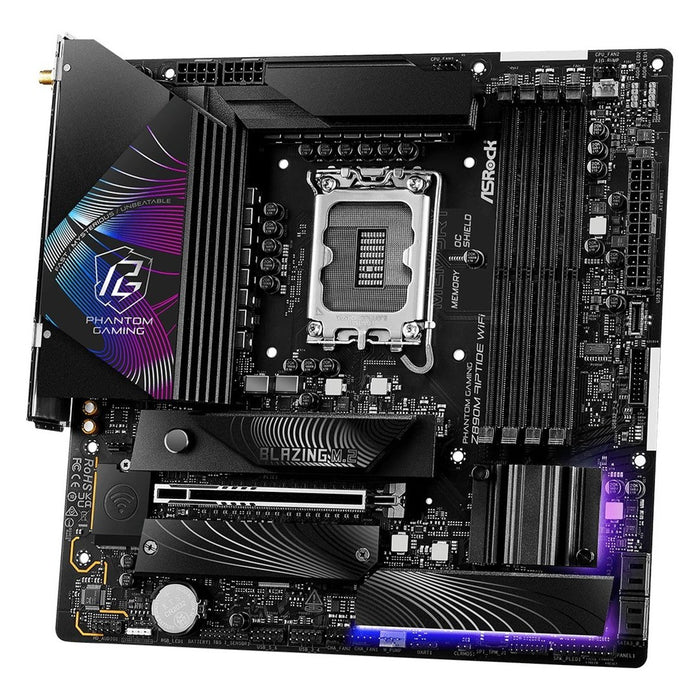

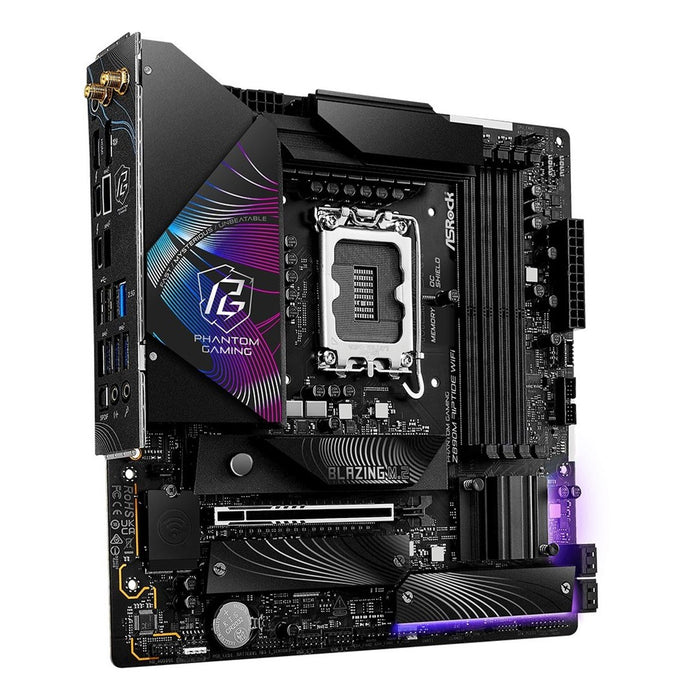

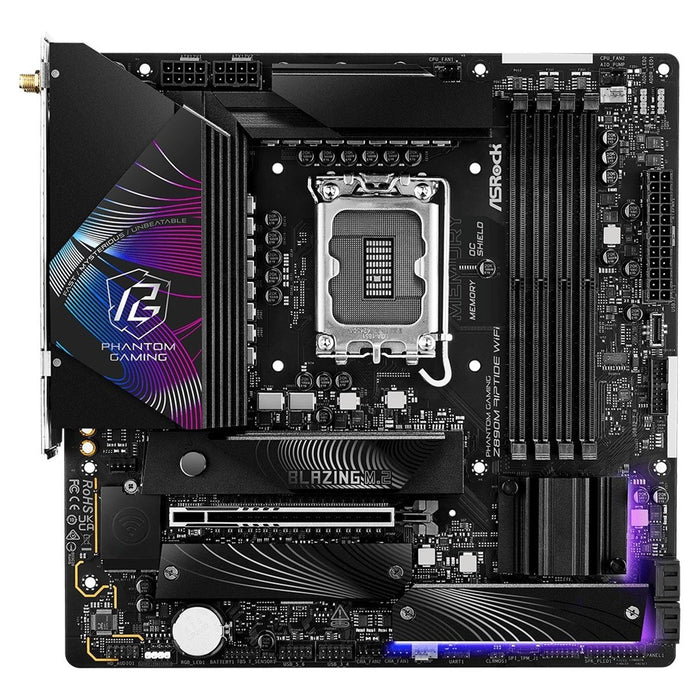

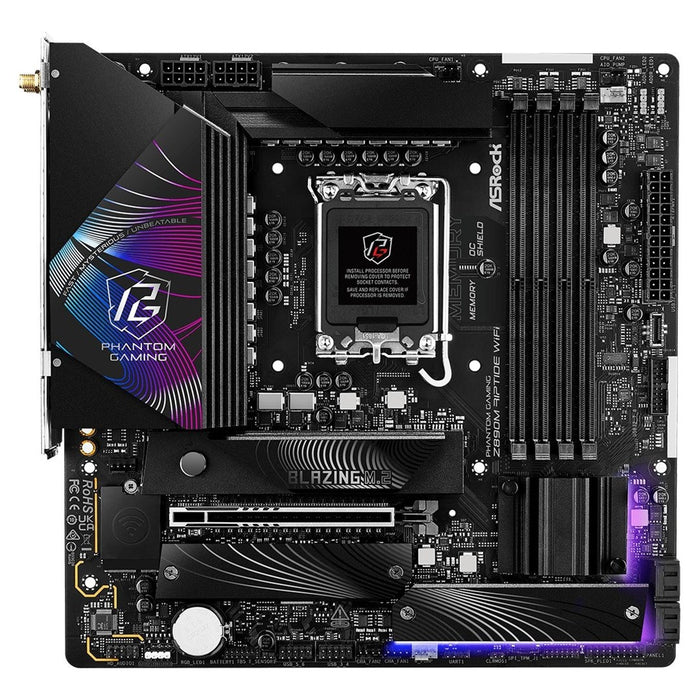

ASRock Z890M Riptide WiFi Motherboard

ASRock Z890M Riptide WiFi Motherboard

ASROCK
€328,90 - €328,90
€328,90
€328,90 - €328,90
€328,90
SKU DGT0222825
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Compatible processor series Intel Core Ultra (Series 2)
Intel® Turbo Boost Technology 3.0
Maximum number of SMP processors 1
Processor manufacturer Intel
Processor socket LGA1851RL-ILM

Features

Graphics card Intel Xe LPG
Motherboard chipset Intel Z890
Motherboard form factor micro ATX
Supported Windows operating systems Windows 11 x64
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset family Intel

Memory

Maximum internal memory 256 GB
Number of memory slots 4
Supported memory types DDR5 DIMM
Memory channels Dual-channel
Memory slot type DIMM
Unbuffered memory Yes
ECC compatibility Non-ECC
Memory speed (max.) 9466 MHz
Intel Extreme Memory Profile (XMP) version 3.0

Weight and dimensions

Width 244 mm
Depth 244 mm

Network

LAN controller Killer E3100G
Wi-Fi standards 802.11 axe, 802.11a, 802.11ac, 802.11g, 802.11n, 802.11b, 802.11 ax
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Ethernet LAN Yes
Wi-Fi Yes
Highest Wi-Fi standard Wi-Fi 6E (802.11axe)
Wireless statistics Yes
Bluetooth version 5.3
Wi-Fi frequency 2.4 GHz / 5 GHz / 6 GHz

Internal I/O

ATX power connector (24-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Front panel audio connector Yes
TPM connector Yes
CPU fan connector 2
USB 2.0 connectors 2
Thermistor connector Yes
Number of RGB LED pin headers 1
AIO pump fan connector 1
Number of addressable LED slots 2
Pump connector 1
Chassis fan connector (4-pin) 3
Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports 1
8-pin 12 V power connector 2

BIOS

BIOS type UEFI AMI

Package contents

Number of antennas 2
Wi-Fi antenna Yes
Motherboard Yes
Included cables Thermistor cable x 1, SATA III 2 pcs, ARGB splitter cable x 1

Storage controllers

Supported drive interfaces M.2, SATA III
RAID levels 10, 5, 1, 0
Supported drive types HDD and SSD
RAID support Yes

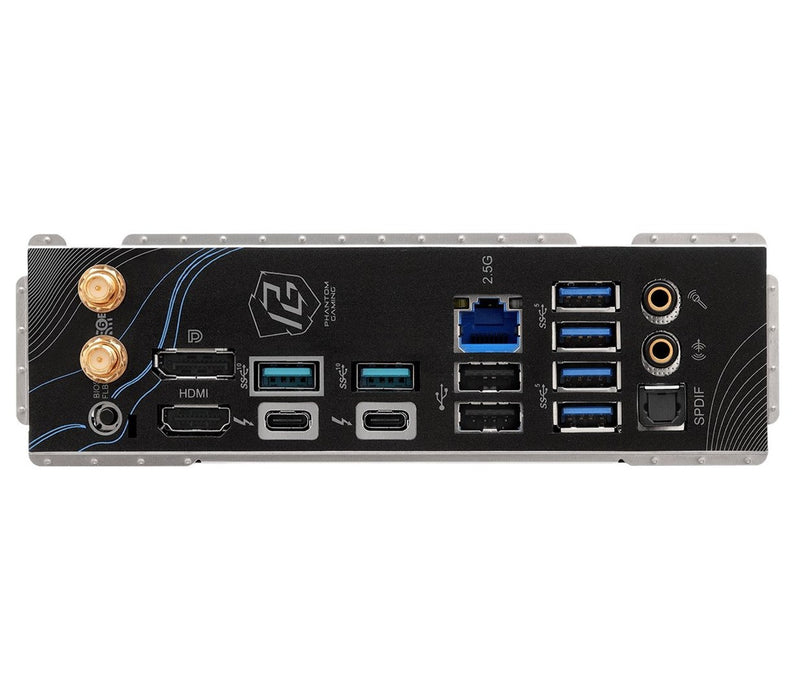

Rear panel ports

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Number of HDMI ports 1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2
DisplayPort version 1.4
Ethernet LAN ports (RJ-45) 1
Line out Yes
Number of Thunderbolt ports USB-C 4 2
Number of USB 2.0 Type-A ports 2
SPDIF optical output Y
Number of microphone inputs 1
Number of antenna connectors 2
Number of DisplayPort outputs 1

Expansion slots

Number of SATA III connectors 4
Number of M.2 (M) slots 1
PCI Express x16 (Gen 5.x) slots 1

Certificates

Certificates ErP/EuP ready, CE, FCC
