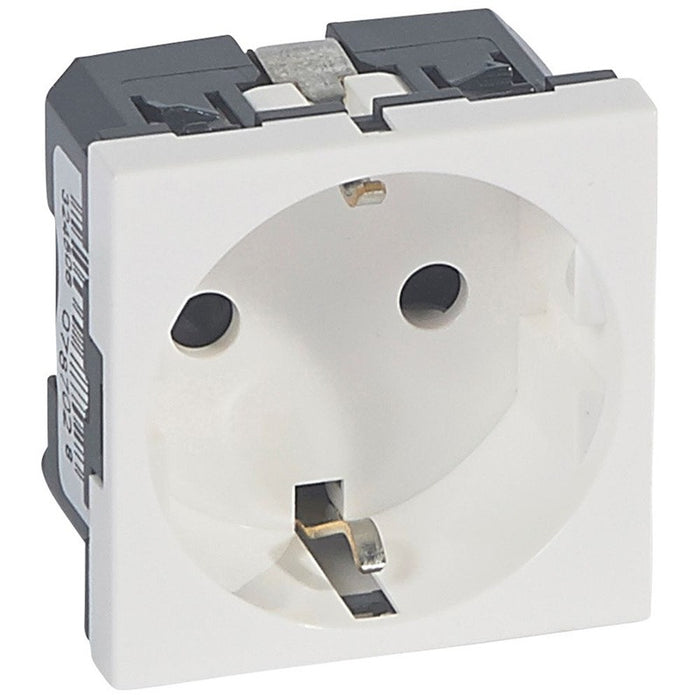

ANTIBACTERIAL CONTACT FOR BUILT-IN SCHUKO LGR 78702 2M MOSAIC LEGRAND

The Legrand Mosaic antibacterial flush-mounted socket is a high-tech solution designed for environments with increased hygiene and safety requirements. The product is a single mechanism according to German standard (2P+E) with a Schuko type protective contact, which combines the functionality of the Mosaic modular system with an innovative surface treatment.

Antimicrobial protection and hygiene

The main advantage of this model is its antimicrobial effect. The housing material contains silver compounds that prevent the development and spread of bacteria, microbes and fungi on the surface of the device. This feature makes the socket extremely suitable for installation in medical institutions, schools, kindergartens, public buildings, kitchens and offices, where infection control is of paramount importance.

Flexibility and integration into the Mosaic system

The product is part of the globally recognized Mosaic ecosystem, occupying two modules (2M) measuring 45 x 45 mm. Thanks to the click-on fastening mechanism, it offers exceptional installation flexibility. The socket can be integrated into various types of bases, including standard flush-mounting boxes, surface-mounting boxes, floor boxes, columns, desktop extenders and office trunking.

Safety and build quality

To ensure maximum safety, the socket is equipped with a built-in child protection (contact protection covers). The mechanism is made of high-quality halogen-free thermoplastic material, which is wear-resistant and does not release toxic substances when heated. The screw terminals provide a strong and reliable electrical connection, suitable for flexible or rigid cables with a cross-section of up to 4 mm².

Technical characteristics

Basic parameters

• Plug type: Shuko (CEE 7/3, type F).

• Configuration: 2P+E with child protection covers.

• Rated current: 16 A.

• Rated voltage: 250 V AC.

• Frequency: 50-60 Hz.

Construction and materials

• Number of modules: 2 modules (modular system 45x45 mm).

• Material: Thermoplastic, halogen-free.

• Surface: Gloss with antimicrobial treatment.

• Color: White (RAL 9003).

• Connection type: Screw terminals.

Protection and sustainability

• Degree of protection: IP41 (protection against solid objects and drops of water).

• Impact resistance: IK04.

• Operating temperature: from -5°C to +35°C.

• Storage temperature: from -10°C to +70°C.

Mounting dimensions

• Device width: 45 mm.

• Device height: 45 mm.

• Total depth: 39.5 mm.

• Installation depth: 31 mm.

• Minimum depth of the installation box: 40 mm.

This Legrand product is the ideal choice for professionals and consumers who are looking for durability, easy installation and high hygiene standards in a modern and aesthetically pleasing form.
