Description

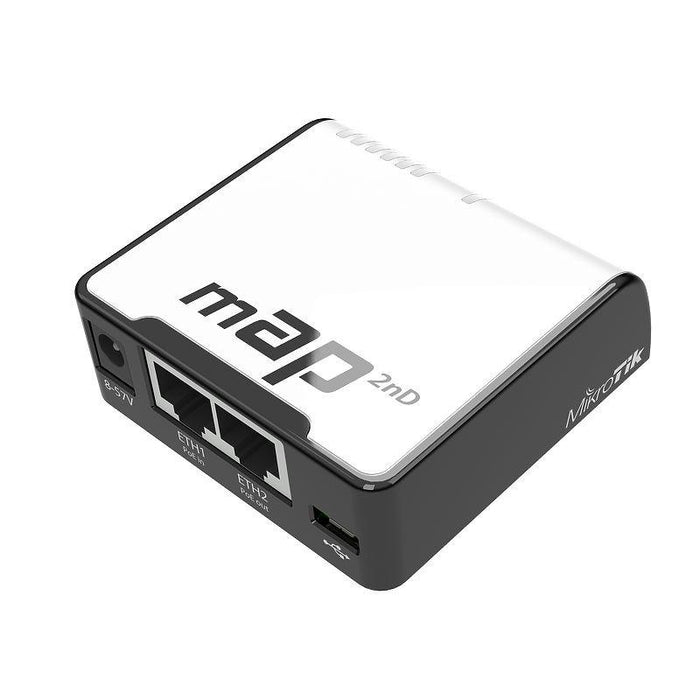

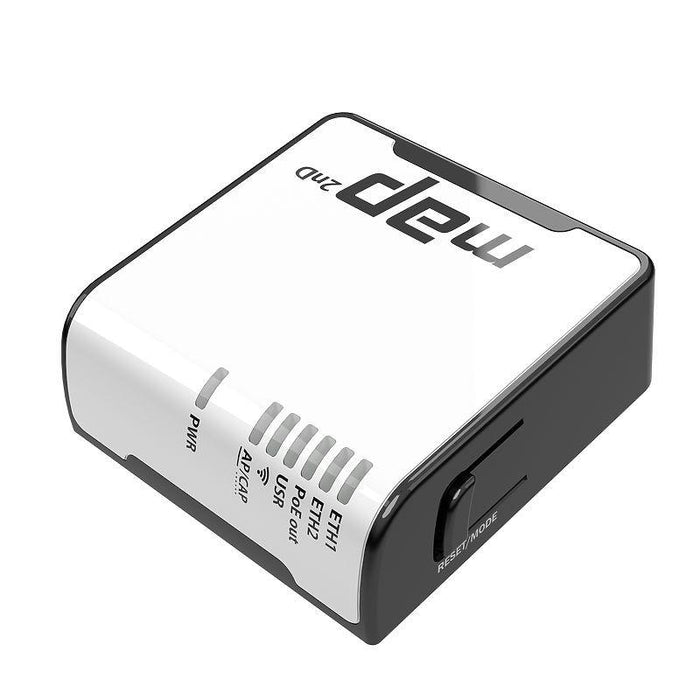

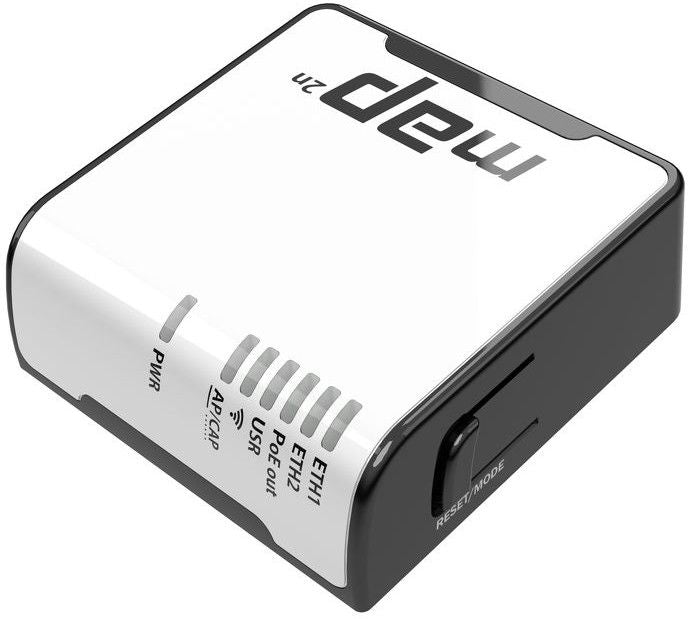

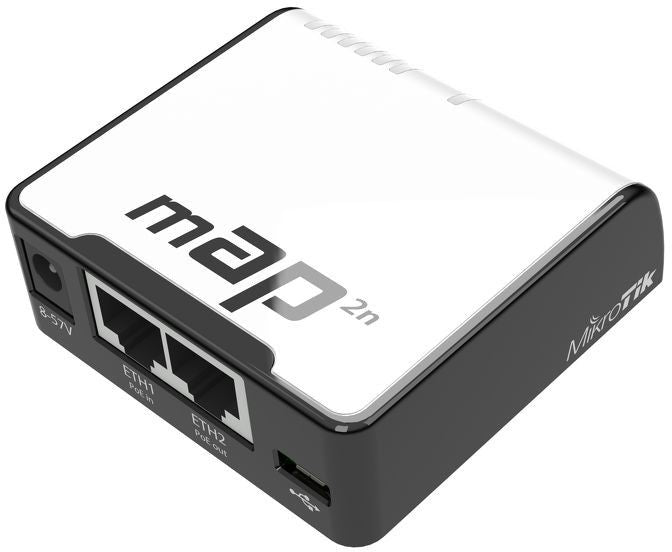

mAP (micro Access Point) is a small-sized Dual-Chain 2.4GHz Access Point with full RouterOS capabilities.
Can be powered by - USB, Passive PoE and power connector. It can also work as a
PoE injector - the second Ethernet port offers up to 500mA power for another device, for example,
you can connect an SXT CPE to it to power it.
CPU Frequency: 650MHz
CPU Cores: 1
Processor: QCA9531
RouterOS License Level: 4
RAM Memory: 64Mb
Internal memory: 16Mb
Network ports: 2
Port speed: 10/100Mbit
Maximum electrical consumption: 5W
PoE in: 802.3af/at
PoE input voltage: 17V - 57V
DC Adapter Port: Yes (Micro USB)
Supply voltage from adapter: 5.5V
Wireless number of 2.4GHz circuits: 2
Wireless 2.4GHz standards: 802.11b/g/n
Antenna sensitivity dBi for 2.4GH: 1.2 dBi
Number of USB ports: 1
USB Port Type: Micro USB
