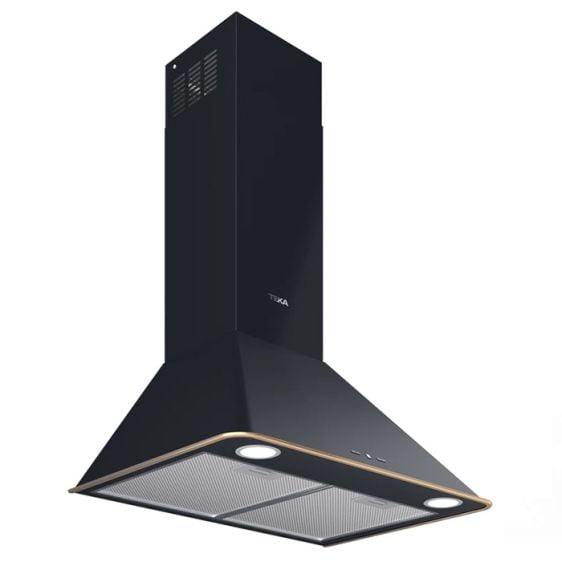

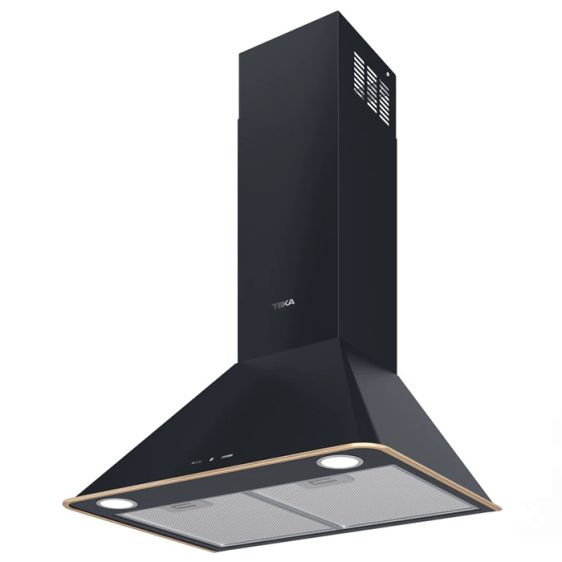

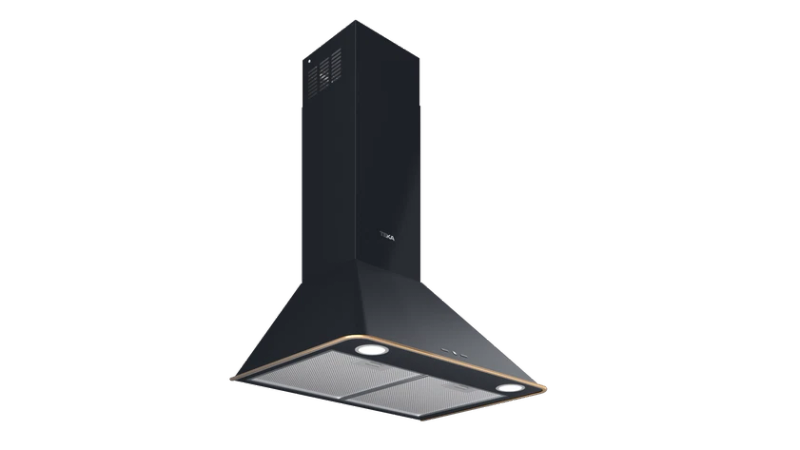

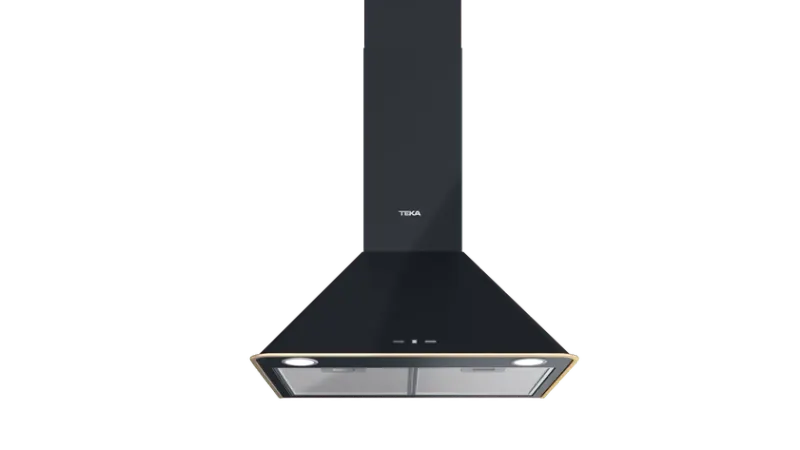

Absorber TEKA DOS 60.2 anthracite / brass

Technical specifications:

• REF. 113010008
• Wall-mounted extractor hood in rustic design
• Decorative frame in brass color

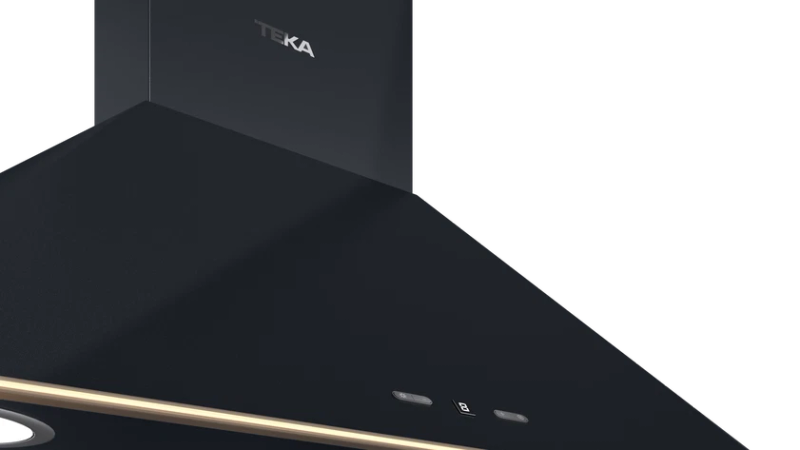

• Electronic control with white display
• Power levels: 3 + 1 intensive
• LED lighting
• Twin turbine engine
• Metal filters
• Maximum capacity: 631 m³/h***
• Noise level (LwA) at minimum level (1st): 46 dB***
• Height-adjustable chimney
• Outlet ø 150 mm
• Reducer ø 150 / ø 120 mm
• Non-return valve
• Possibility of using activated carbon filters
• Energy class: B
• ***According to Delegated Regulation (EU) 65/2014
• Interior lighting (W): 2.5
• Plug: European Plug
• Power supply (V): 220-240
• Frequency (Hz): 50-60
• Maximum power (W): 180
• Motor power (W): 175

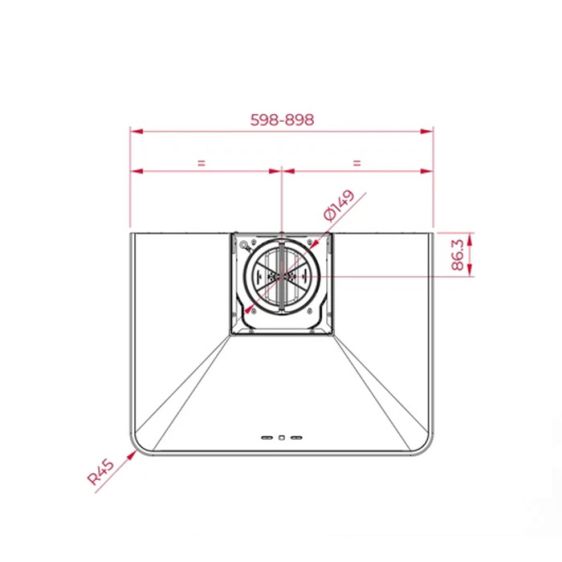

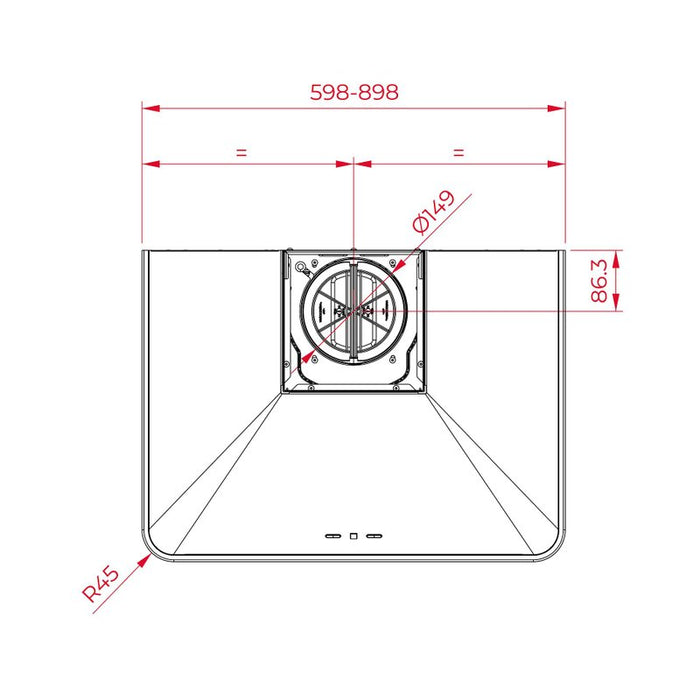

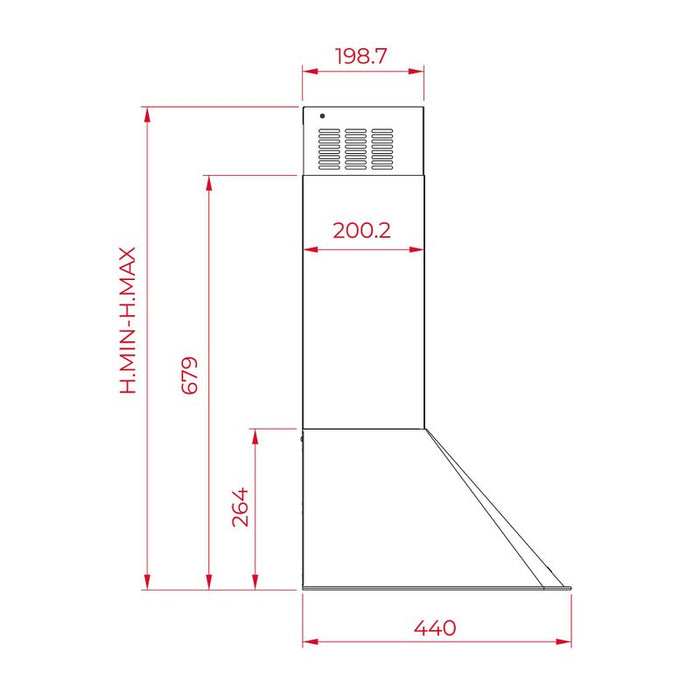

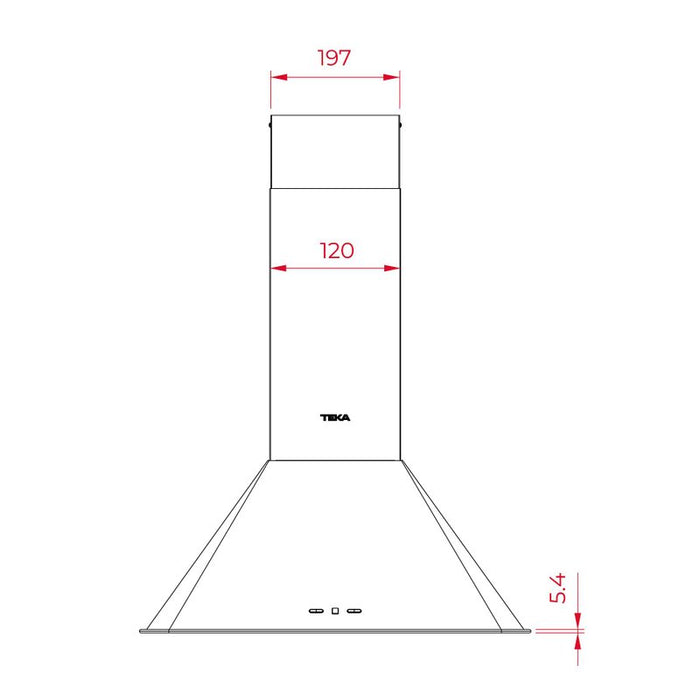

External dimensions

• Height (mm): 716-1129
• Width (mm): 440
• Depth (mm): 598

Features

• Flow rate at the point of greatest efficiency (Qbep) m3/h: 288
• Certificates: CE; CB; Rohs
• Activated carbon filter kit code: 40490910
• Delegated Regulation (EU) 65 and 66/2014
• Maximum flow rate (Qmax) m3 /h : 603.0
• Noise level (LwA) at maximum level dB: 66
• Energy class: B
• Gasodynamic efficiency (FDEhood): 23.8
• Average illumination from the lighting system on the cooking area (Emiddle) Lux: 121.0
• Flow rate at the point of greatest efficiency (Qbep) m3/h: 288
• Gas dynamic efficiency class: B
• Input electrical power at the point of greatest efficiency (Wbep) W : 159.5
• Grease filtration efficiency class: D
• Lighting Efficiency (Lehood) lux/Watt : 20.1
• Time increase factor (f) : 1.1
• Lighting system efficiency class: B
• Minimum flow rate (Qmin) m3/h : 256.0
• Nominal power of the lighting system (WL) W: 6.0
• Noise level (LwA) at minimum level dB: 51

Accessories

• Non-return valve: yes
• Reducer Ø 150 / 120 mm: yes

Distinctive features

• Number of filters: 2
• Opening system: No
• Number of power levels: 3+booster

Warranty: 60 months
