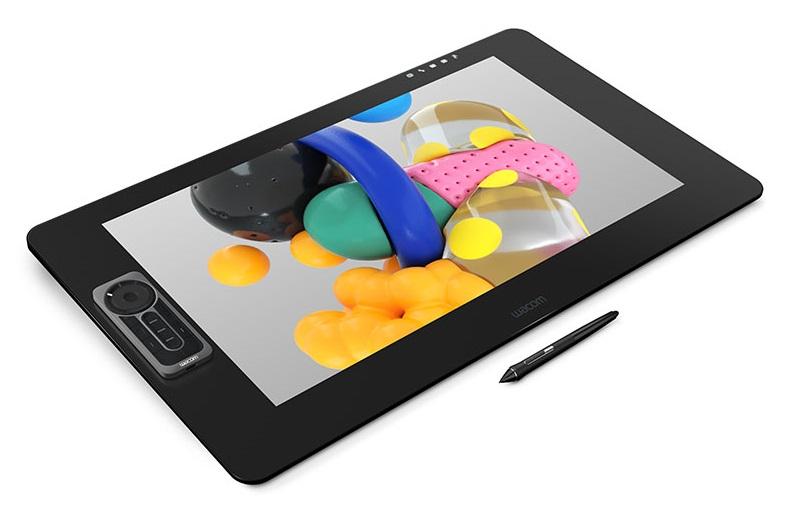

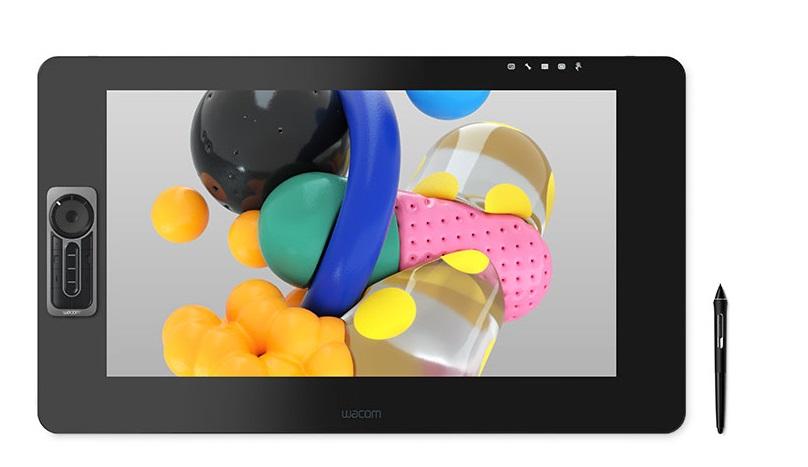

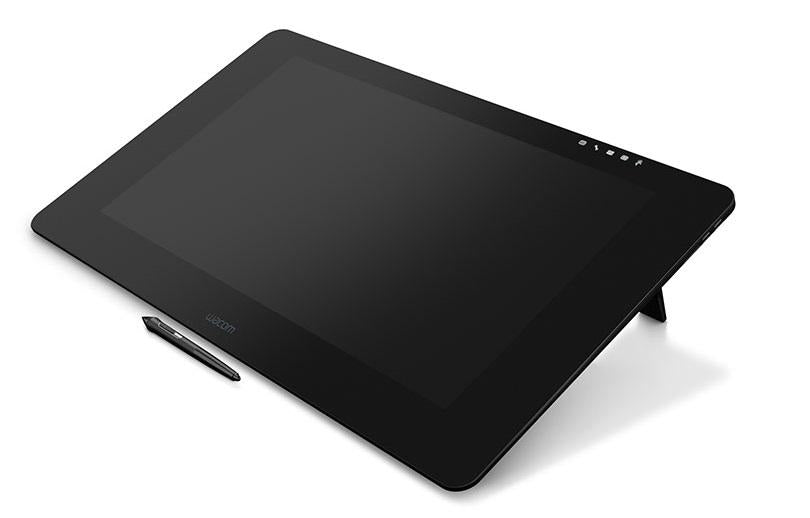

The Wacom Cintiq Pro 24 graphics tablet creates absolute harmony in your workflow.
The screen has 4K resolution and accurate color reproduction – 99% Adobe RGB.
Wacom's new pen - Pro Pen 2 will quickly become your favorite creative tool.
It is more sensitive, more accurate, and more responsive than any other Wacom pen ever created.
Quadrupled pressure levels (8192), no lag, and improved keystroke recognition
The pen's tilt brings working with the Pro Pen 2 as close as possible to the real feeling of drawing with a pencil.
As well as controlling the trace it leaves.
The large 24-inch screen gives you a wide canvas for detailed work. The matte finish of the
The display is anti-glare, so you have the comfort you need for relaxed work.
The Wacom Pro Pen 2 takes care of providing the familiar feeling of drawing with pencil and paper.
So with ample workspace, easy touch controls and all the tools you need for creative work
The Cintiq Pro 24" is perfect for creating anything you want.
Connects to any Mac or PC with a single USB-C cable (included) to a USB-C video port simultaneously for
video and data transfer. DisplayPort or HDMI 2.0 port and standard USB port (for data).
Programmable ExpressKeys™* and radial menu* for easy configuration and
a natural fit into the way you are used to working.
Move, zoom in and out, or rotate your drawing with gestures on the touch-sensitive display,
just as intuitive as on your smart phone.
Product type: Wacom Cintiq Pro 24 graphics display tablet - DTK-2420
Wacom Cintiq Pro 24 dimensions: 677 x 394 x 47 mm
Weight: 7 kg, without optional stand
Screen size (diagonal): 59.94 cm / 23.6 inches
Technology: IPS UHD panel with high brightness
Reproducible colors: 1.07 billion
Aspect ratio: 16:9
Viewing angle: 176° (88°/88°) H, (88°/88°) V
Brightness: 350 cd/m2
Response time: 14 milliseconds
Active area: 522 x 294 mm
Gamma: 99% of Adobe RGB
Industry standard preset: 6500°K default white balance
Communication: USB Type-C port (supporting DisplayPort alternate mode) or DisplayPort or HDMI 2.0 port (for 3840 x 2160 resolution)
Contrast: 1000:1
Pen: Wacom Pro Pen 2
Pressure levels: 8192, for the pen and eraser
Tilt: 40 degrees
Tilt recognition: ±60 levels
Pen type: Pressure sensitive, cordless and battery-free
2 side buttons on the pen, eraser
Replacement nibs: 10 pcs. (6 standard and 4 felt nibs)
Pen compartment/box: Yes - compartment
Pen stand: Yes
Cover: Latex-free silicone rubber
Technology: Patented electromagnetic resonance technology
Resolution: 5080 lpi
ExpressKeys™: 17 customizable, depending on the application of the optional ExpressKey™ Remote
Touch Ring: Yes - on optional ExpressKey™ Remote
Touch Strips: No
Rocker Ring And Home Button: Yes - on the optional ExpressKey™ Remote
Radial menu: Yes
Precision Mode (increased segment operation mode): Yes
Display Toggle (dual monitor settings): Yes
Dedicated Pan, Scroll, Zoom, Brush Size: Yes
ExpressKey™ Remote dimensions: 135 x 52 x 10 mm.
ExpressKey™ Remote operating time: Up to 160 hours when used every 30 seconds
ExpressKey™ Remote charging time: Up to 2 hours
Cables in the package: USB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI2.0 to HDMI2.0 cable (3m), USB-C to USB-C cable (1.5m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote)
Requirements for connection to PC and Mac workstations: USB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
Communication ports: 4 x USB3 ports*
1 x USB-C port
1 x HDMI2.0 port
1 x DP port
2 USB-A Ports (one for ExpressKey Remote dongle)
*When connected to host computer over USB-C (including Cintiq Pro Engine),
Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C
Peripheral connectivity: USB-C port (recommended) or Mini Display Port and USB
Audio: Headphone audio jack, built-in microphone
Power supply: 240V, 50/60Hz
Battery: Rechargeable Li-Ion on ExpressKey™ Remote
Security: Kensington® Lock Port (purchased separately)
Power consumption: 100 W, 2 W or less in standby mode
