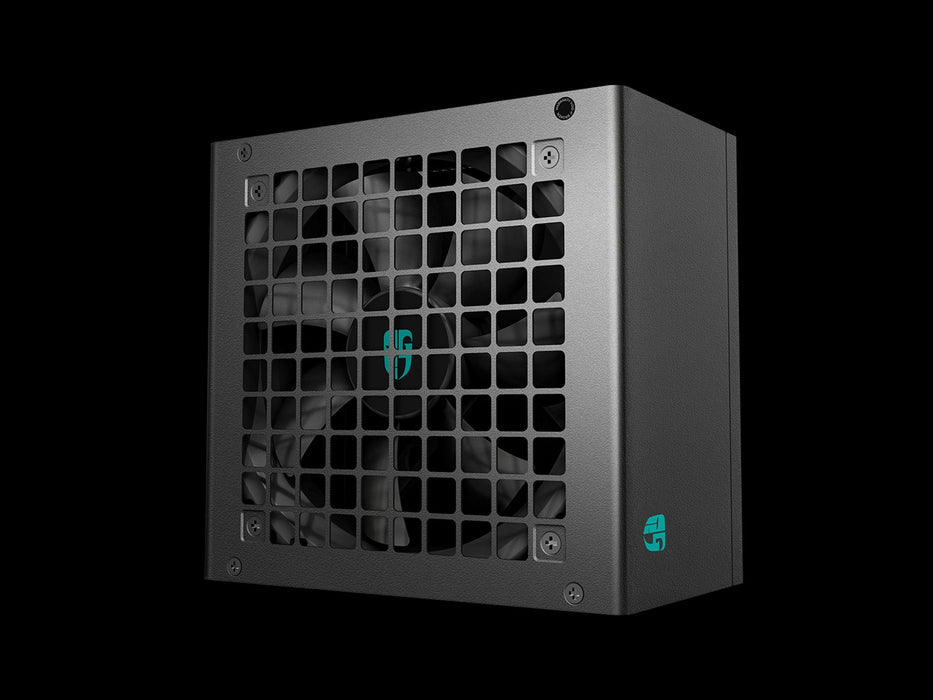

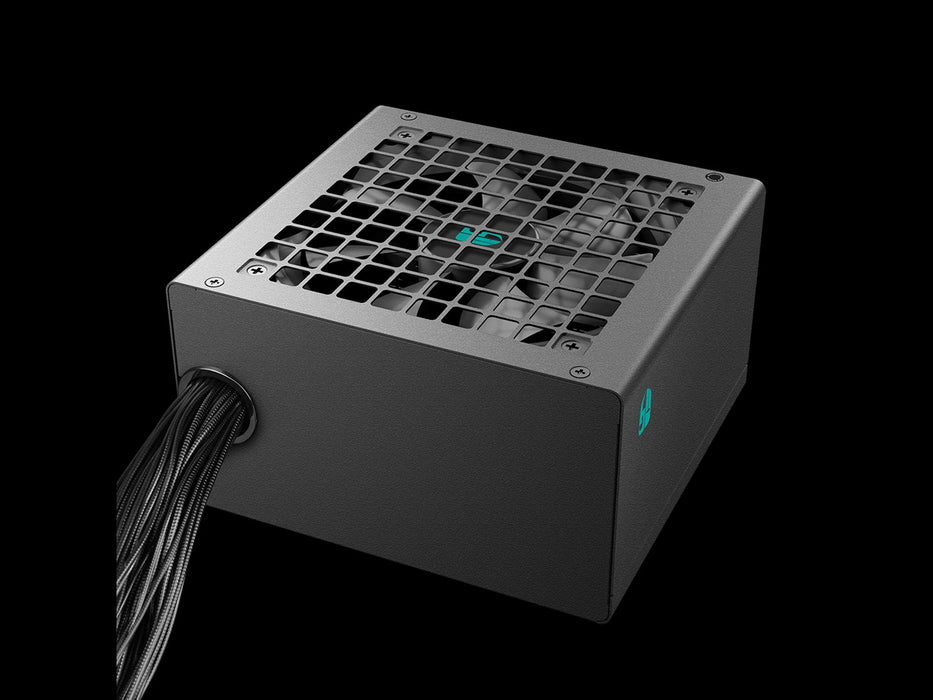

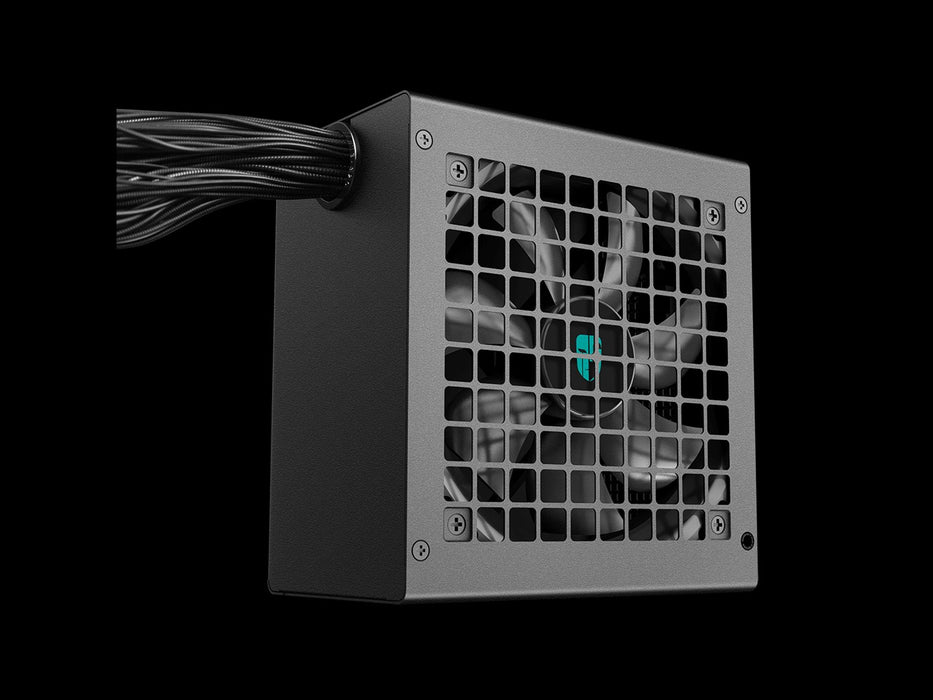

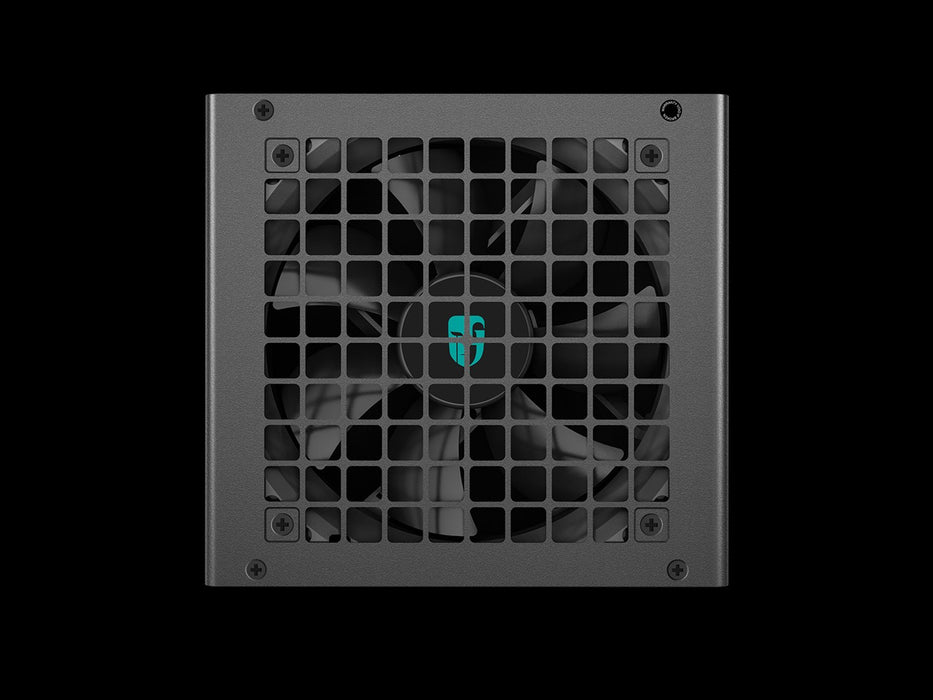

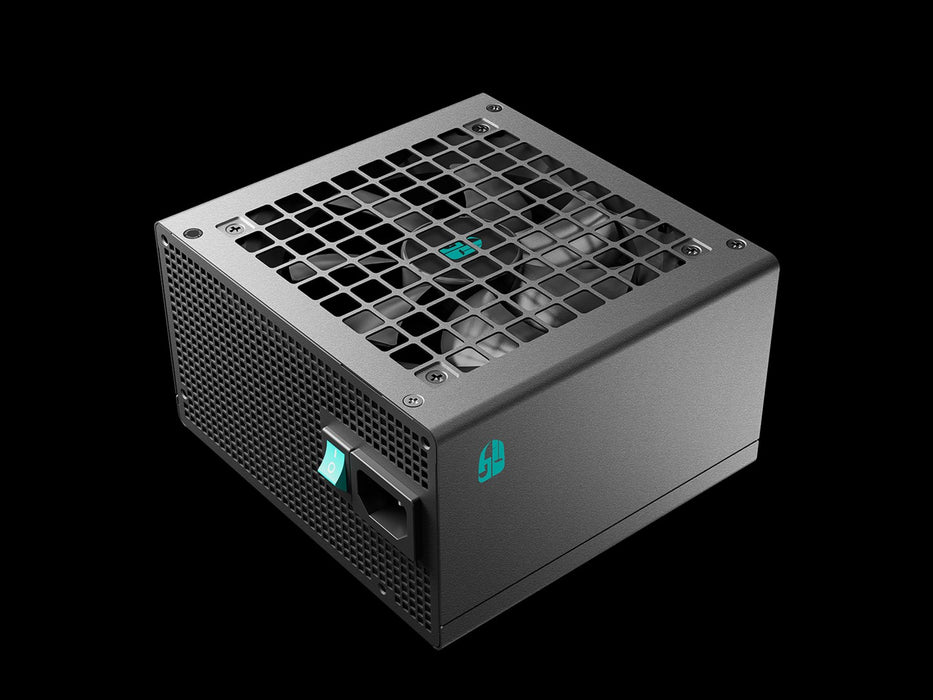

DeepCool PF600X power supply unit

DeepCool PF600X power supply unit

DEEPCOOL
€60,90 - €60,90
€60,90
€60,90 - €60,90
€60,90
SKU DGT0276571
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Sustainability certificates Triman, WEEE, China RoHS
Environmental compliance Yes

Design

Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black

Power

Combined power (+3.3V) 100 W
Efficiency 88%
Power protection functions OCP, NLO, UVP, SIP, OPP, SCP, OTP, OVP
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Power factor correction type (PFC) Active
Combined power (+12V) 600 W
Total power 600 W
Maximum output current (-12V) 0.3 A
Hold-up time 16 ms
Maximum output current (+5V) 16 A
Maximum output current (+12V) 50 A
Maximum output current (+3.3V) 16 A
Combined power (+5Vsb) 15 W
Power Good signal delay range 100 - 150 ms
Maximum output current (+5Vsb) 3 A
AC input frequency 50/60 Hz
Input current 5 A
AC input voltage 200 - 240 V

Operating conditions

Operating temperature (T-T) 0 - 40 °C

Weight and dimensions

Height 86 mm
Depth 140 mm
Width 150 mm

Performance

Power supply unit (PSU) form factor ATX
80 PLUS certificate 80 PLUS Bronze
Bearing technology HYB
ATX version 2.52
Mean time between failures (MTBF) 40000 h
Purpose PC

Packaging data

Packaging type Box

Package contents

Included cables Alternating current

Certificates

Conformity certificates CCC, RCM, KC, CE

Ports and interfaces

PCI Express power connectors (6+2 pin) 2
CPU power connector (4+4 pin) Yes
SATA power cable length 600 mm, 750 mm, 450, 900 mm
Number of SATA power connectors 8
Motherboard power cable length 55 cm
Motherboard power connector 24-pin ATX
