| Marketing description |

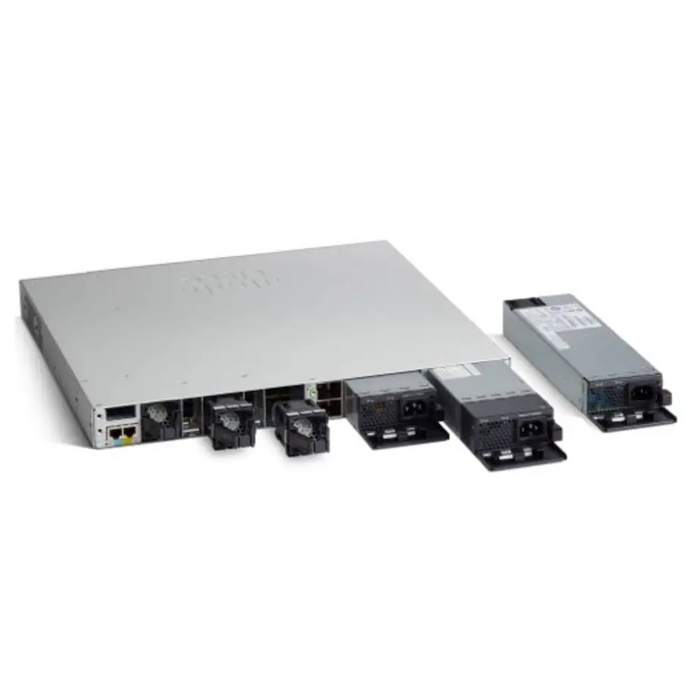

| The Catalyst 9300 Series is an advanced switching platform with stacking capability. These network switches are designed for security, the Internet of Things and the cloud. |
| Product features |
-
Cloud-ready
Simplify, secure and transform your cloud environment. Cisco provides a digital-ready approach that starts at the edge and extends to where applications reside.
-
Mobility-optimised
Catalyst 9300 Series access switches provide you with intelligent, easy and highly secure unified access.
|
| General |
| Device type |
Switch - 24 ports - L3 - Managed - stackable |
| Chassis type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
445 W |
| Performance |
Switching capacity: 128 Gbps
Stacking throughput: 480 Gbps
Forwarding rate: 154.76 Mpps |
| Capacity |
Routing table entries IPv4: 32000
Routing table entries IPv6: 16000
Flexible NetFlow records: VLAN IDs: 64000
VLAN IDs: 4000
Switched virtual interfaces (SVI): 2000 |
| MAC address table size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote management protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption algorithm |
128-bit AES |
| Features |
Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP), Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control Plane Policing (CoPP), Source-Specific Multicast (SSM), built-in Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM |
8 GB |
| Flash Memory |
16 GB |
| Status indicators |
Status |
| Expansion / Connectivity |
| Interfaces |
48 x 1000Base-T RJ-45 PoE
1 x USB 2.0 |
| Expansion slots |
1 (total) / 1 (free) x expansion slot |
| Power |
| Power supply |
Internal power supply - hot-plug |
| Installed quantity |
1 |
| Maximum supported quantity |
2 |
| Power redundancy |
Possible |
| Power output |
715 Watt |
| Required voltage |
AC 120/230 V (50 - 60 Hz) |
| Different |
| MTBF |
299,000 hours |
| Compliant standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / system requirements |
| Required operating system |
Cisco IOS Universal |
| Dimensions and weight |
| Width |
44.5 cm |
| Depth |
44.5 cm |
| Height |
4.4 cm |
| Weight |
7.4 kg |
| Manufacturer warranty |
| Service and support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consultations - 90 days |
| Environmental parameters |
| Minimum operating temperature |
-5 °C |
| Maximum operating temperature |
45 °C |
| Operating humidity range |
5 - 90 % (non-condensing) |
| Minimum storage temperature |
-40 °C |
| Maximum storage temperature |
70 °C |
| Storage humidity range |
5 - 90% (non-condensing) |
