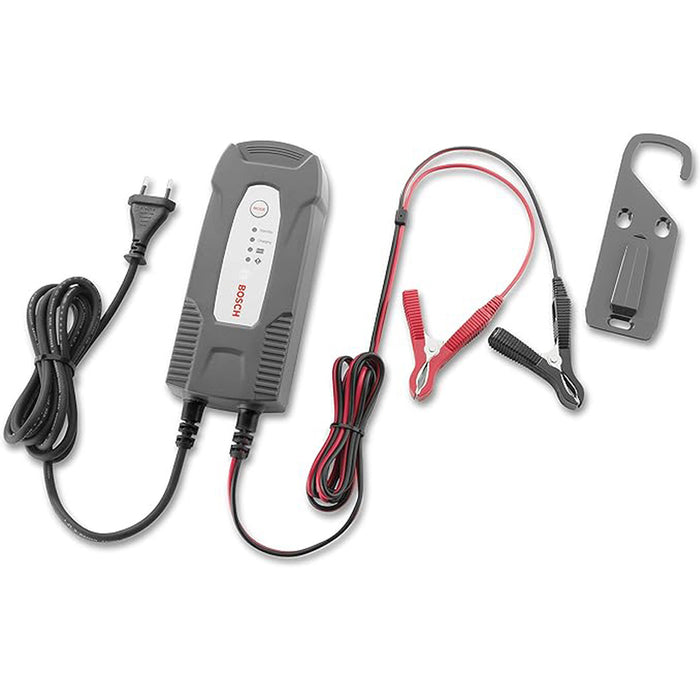

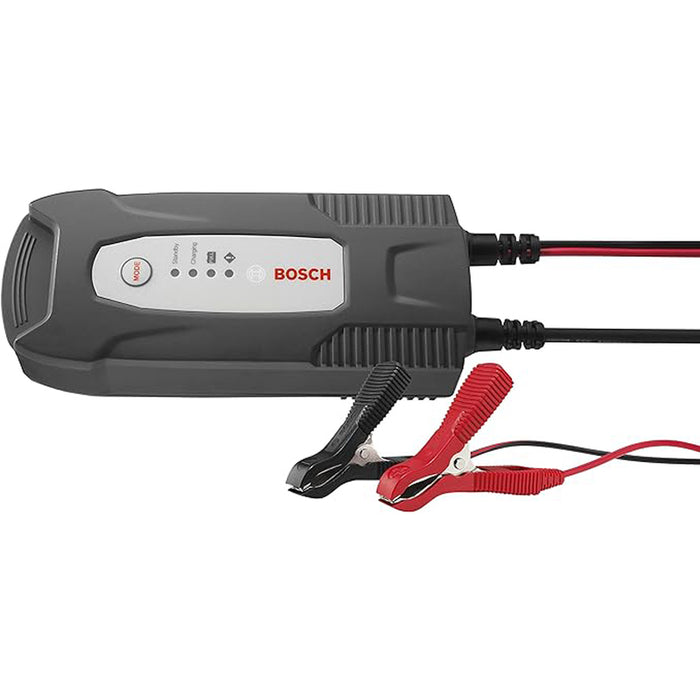

CHARGER BOSCH C1

CHARGER BOSCH C1

Bosch
SKU DGT0181333

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • Bosch C1 battery charger. This device is designed for charging open and sealed lead-acid batteries used in passenger cars, motorcycles and some other vehicles - e.g. WET (wetted), GEL (gelled) or EFB (enhanced wet-acid) batteries. The battery capacity ranges from 12 V (5 Ah) to 12 V (120 Ah). The special design of the device makes it possible to charge the battery to almost 100% of its capacity. The charger has 1 charging mode for different batteries in different states. It charges efficiently and safely. Unlike conventional products, the charger has a special function that makes it possible to recharge almost completely discharged batteries. Trickle charging: in order to maintain the full charge of the battery, the charger can remain switched on for a long time. After the charging process, the charger automatically switches to trickle charging mode. The strictest protection measures against misuse and short circuits ensure safe operation. The charger starts the charging process a few seconds after selecting the charging mode using a built-in switch. This avoids sparks that often occur during the connection process. The charger is also controlled by an internal MCU (microcomputer module).
  • Technical characteristics:
  • Primary part
  • Rated input voltage: 230 V / 50 Hz
  • Inrush current: < 50 A
  • Rated input current: max. 0.6 A (rms value)
  • Power consumption: 60 W
  • Secondary part
  • Rated output voltage: 12 V
  • Charging voltage: 14.7 V (± 0.25 %)
  • Charging current: 3.5 A (± 10 %)
  • Rated output current: 3.5 A
  • Ripple 1: max. 150 mV
  • Reverse current 2: < 5 mA (without AC input)
  • Protection degree: IP 65 (dust-tight, water-tight)
  • Battery type: 12 V lead-acid battery (EFB, GEL, open and with overpressure relief valve or VRLA)
  • Battery capacity: 12 V: 5 Ah – 120 Ah
  • Fuse (internal): 1.6 A
  • Noise level: < 50 dB
  • Ambient temperature: 0 to + 40 °C
  • Dimensions: 185 x 81 x 47 mm (L x W x H)
