Boiler BOSCH TR4501TR 100 DERB

Modernizing the system with a flat electric water heater is more than easy. Convenient settings, different operating modes and an energy-saving function for energy-efficient hot water supply. Easy to install and operate.

• An energy-saving way to ensure sufficient hot water
• Modern and compact design
• Easy modernization
• Easy-to-use user interface

An energy-saving way to provide enough hot water for your home

• Four operating modes can be easily selected from the intuitive interface and combined with a range of operating functions
• Thanks to the energy saving function, hot water is heated according to the user's routine, according to the time and the desired temperature.
• This means that energy consumption can be reduced without loss of comfort.
• Double enameled tank

Modern and compact design

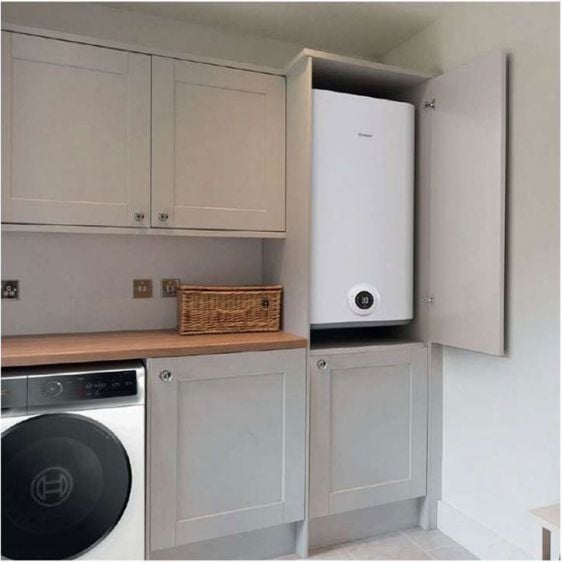

• The device is compact and slim and fits even in tight spaces, e.g. in cabinets
• The elegant design fits into any interior - in older houses or modern apartments
• Intuitive user interface for easy handling

Easy modernization

• Can be mounted horizontally or vertically, giving more flexibility
• With its slim dimensions, it even fits into cabinets or small niches in your kitchen or bathroom.
• Thanks to the mounting bracket, damage or new holes in your home are avoided
• Even old water heaters from other brands can be easily replaced.

  Easy to operate

• Easily change the necessary settings thanks to the 7-segment symbol display
• 6 touch buttons to select different modes such as boost, use, on/off
• Indication of the current water temperature on the display

Robust components

• The use of an enamelled stainless steel heating element guarantees a long life and reliable product
• The dual tank requires less maintenance and offers trouble-free operation

Technical specifications:

• Energy efficiency 39%
• Height 901.5 mm
• Width 569 mm
• Depth 316.5 mm
• Weight 34.15 kg
• Rated power 1.5 kW
• Load profile M
• Annual electricity consumption 1312 kWh
• Useful volume 135 l
• Electrical fuse 6.5 A
• Max. pressure on the drinking water side 8 bar
• Working volume 74 l
• Losses in duty mode 1.73 kW h/d
• Warm-up time 10°C/60°C 256 min
• Protection class I
• Degree of protection (EN 60529) IPX4
• Order number 7736507317

Warranty: 60 months
